Generator Control Module Coolant Tank Hose Replacement

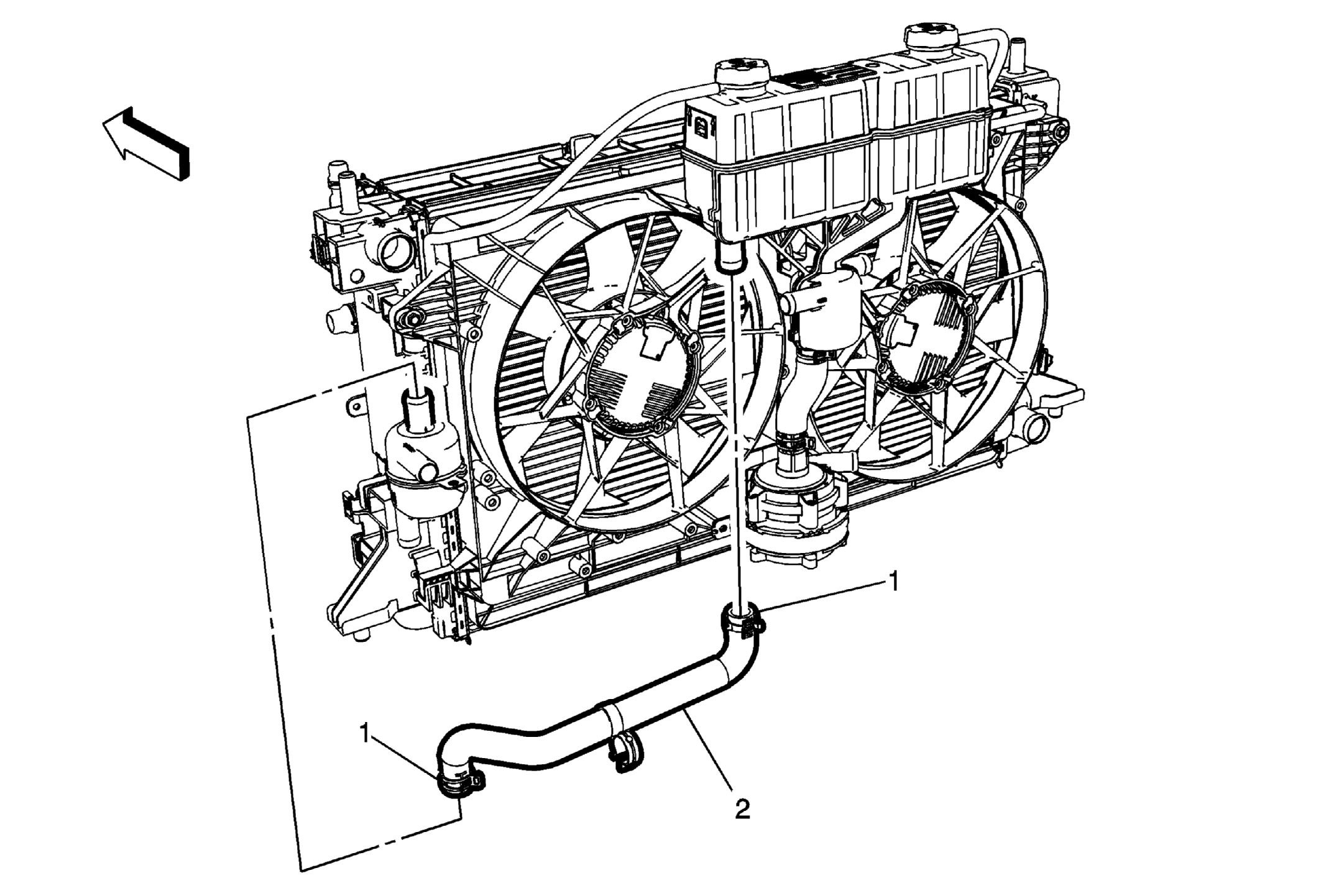

Fig 1: Generator Control Module Coolant Tank Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling Remove the left front headlamp. Refer to Headlamp Replacement
1	Generator Control Module Coolant Tank Hose Clamps (Qty: 2) Procedure Reposition the generator control module coolant tank hose clamps using BO-38185 hose clamp pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Generator Control Module Coolant Tank Hose Procedure Unclip drive motor battery radiator outlet hose from hose. TIP: Replace corroded hose clamps and brackets.

Callout

Component Name

Preliminary Procedures

Drain the coolant. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
Remove the left front headlamp. Refer to Headlamp Replacement

Generator Control Module Coolant Tank Hose Clamps (Qty: 2)
Procedure
Reposition the generator control module coolant tank hose clamps using BO-38185 hose clamp pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools

Generator Control Module Coolant Tank Hose
Procedure
Unclip drive motor battery radiator outlet hose from hose.
TIP: Replace corroded hose clamps and brackets.
