Rear Side Door Window Regulator Motor Replacement

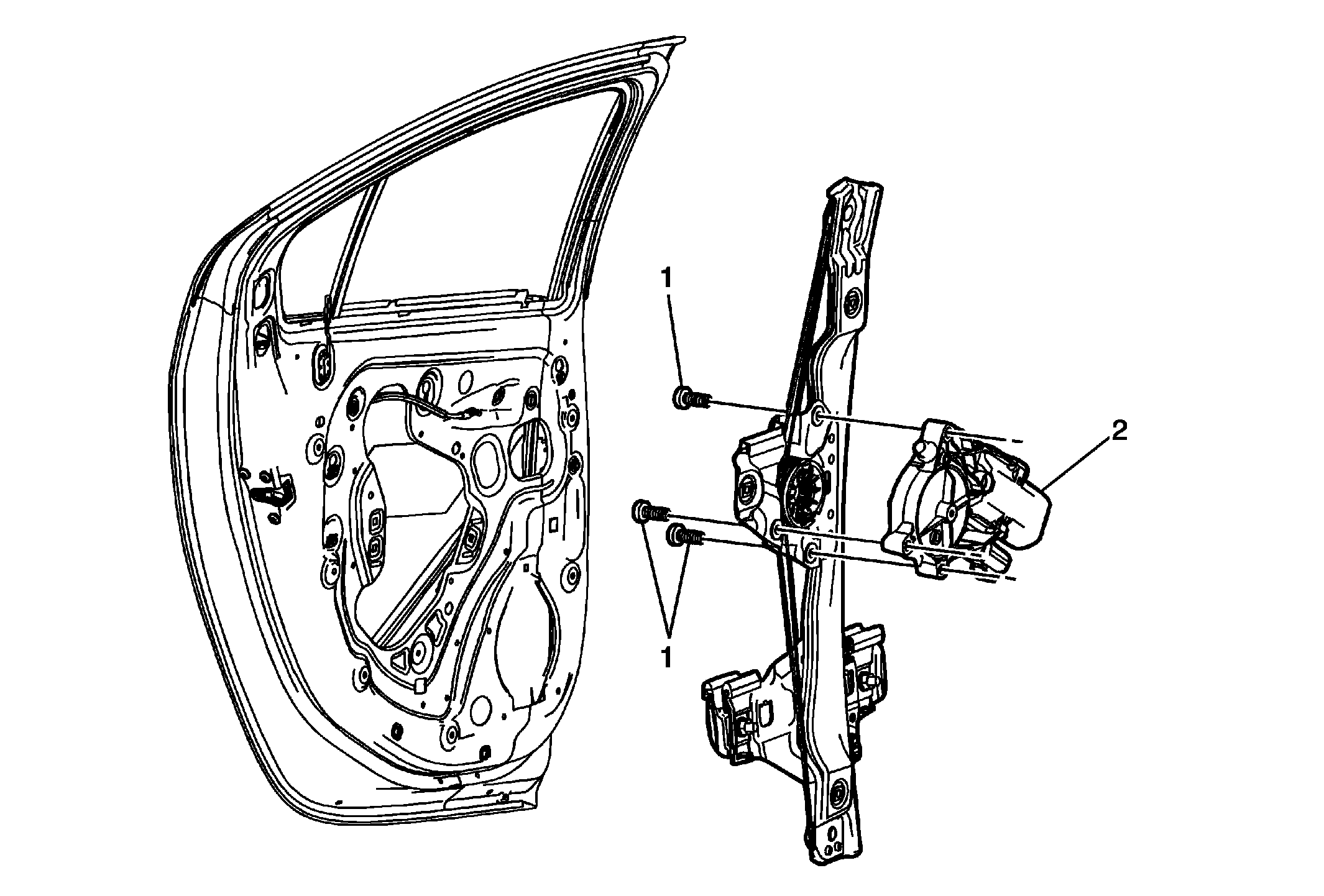

Fig 1: Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .
1	Rear Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear Side Door Window Regulator Motor TIP: Inspect the window for proper operation before installing the door trim panel.
