Vehicle Performance Data Recorder Replacement
Vehicle Performance Data Recorder Replacement

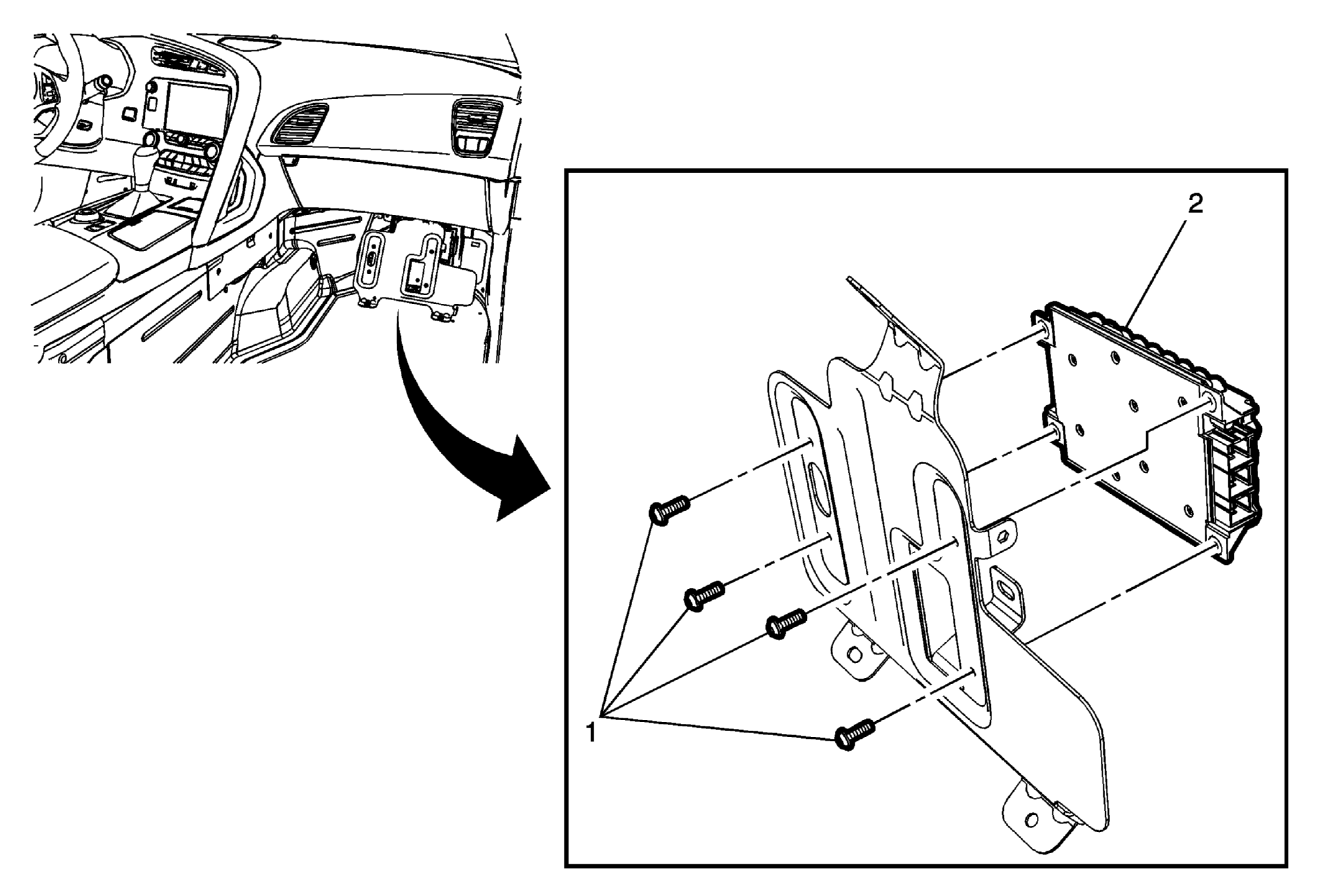

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the vehicle performance data recorder bracket. Refer to Vehicle Performance Data Recorder Bracket Replacement . |
|
| 1 | Vehicle Performance Data Recorder Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in) |
| 2 | Vehicle Performance Data Recorder Procedure Reprogram the data recorder after installation. Refer to Control Module References . |
