Installation Procedure

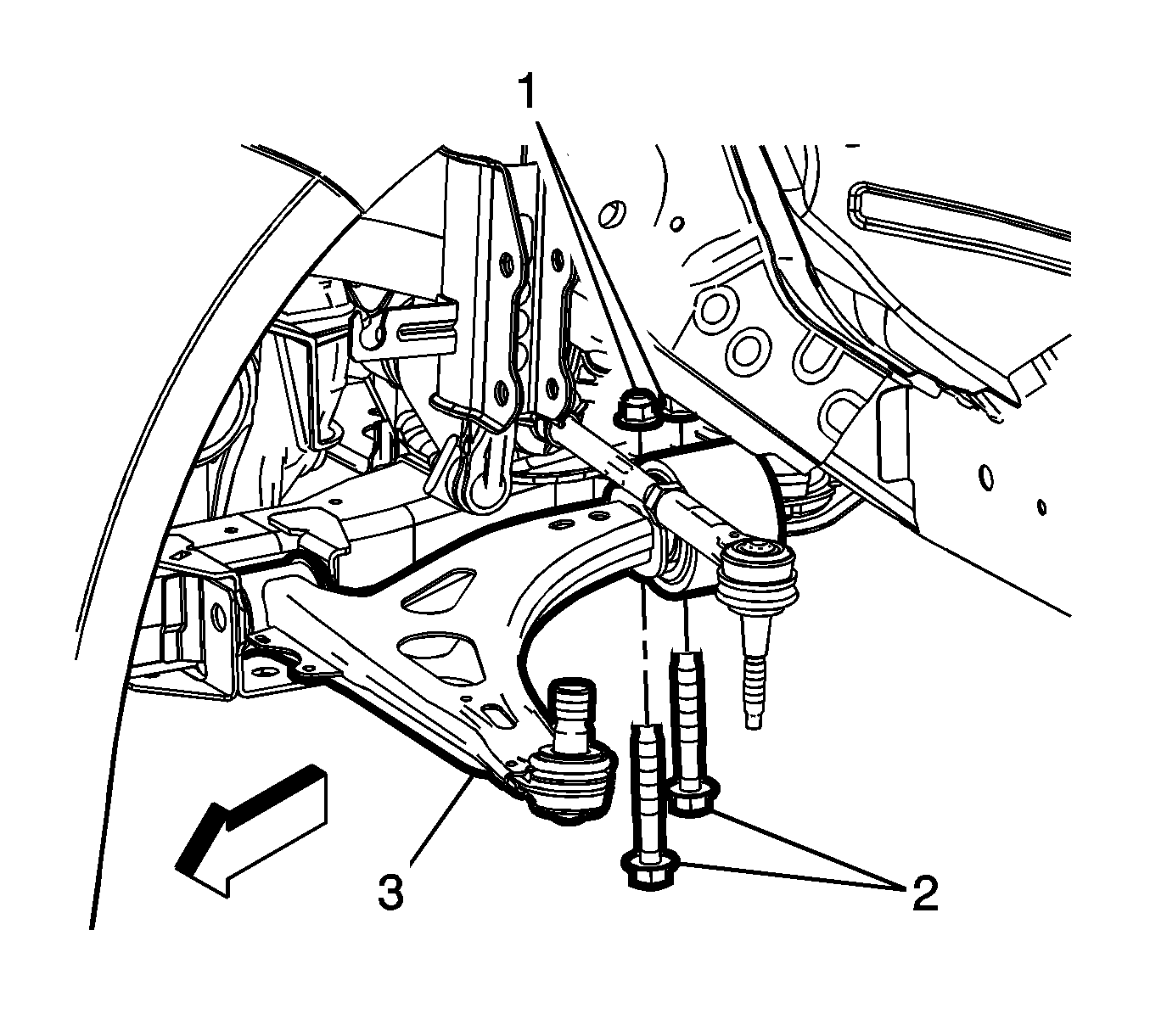

- Support the front lower control arm (3) with a jackstand or other suitable tool and position the control arm on the vehicle.
- Start the NEW front lower control arm rear bolts (2) and nuts (1) by hand. Do not tighten.

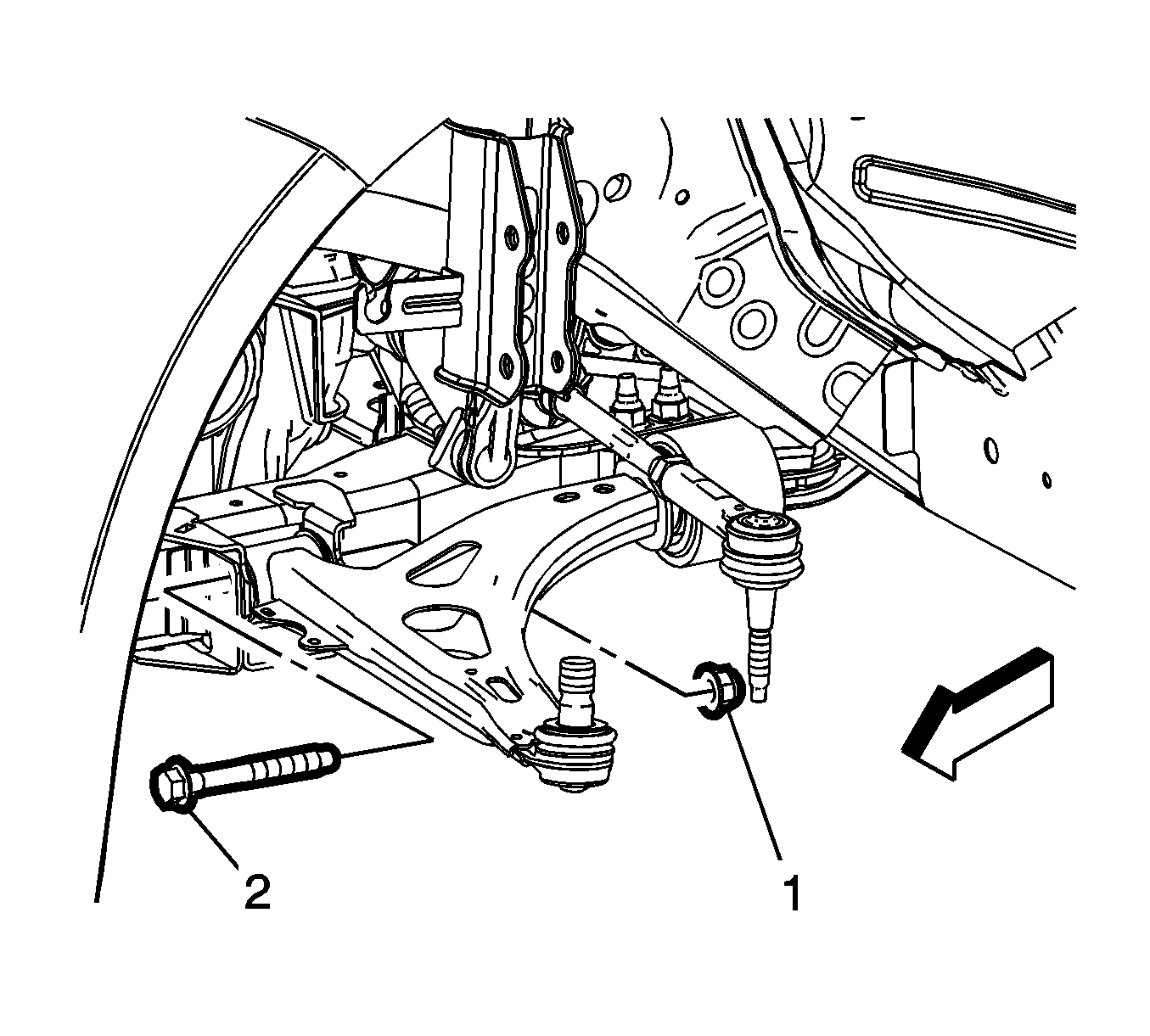

- Install the NEW front lower control arm front bolt (2) and nut (1) and tighten the bolt to 100 N.m (74 lb ft) + 90 degrees.
- Tighten the NEW front lower control arm rear bolts (2) to 100 N.m (74 lb ft) + 90 degrees.
- Connect the front lower control arm ball joint to the steering knuckle.

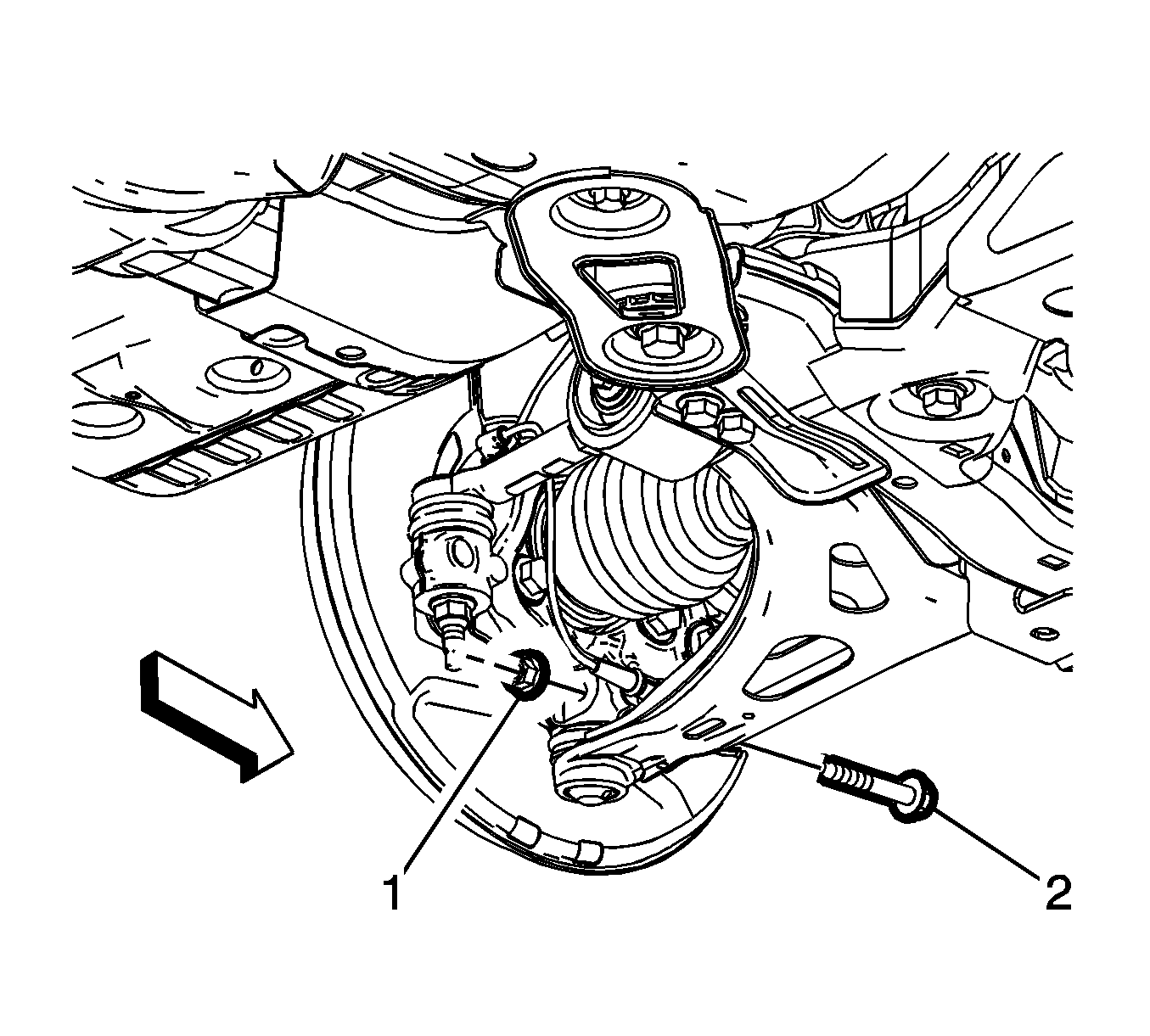

- Install the NEW steering knuckle bolt (2) and steering knuckle nut (1).
- Tighten the steering knuckle nut (1) to: 50 N.m (37 lb ft).
- After the initial tightening, loosen the steering knuckle nut (1) 120 degrees.
- After loosening, tighten the steering knuckle nut (1) to 50 N.m (37 lb ft) + 45 degrees.
- Connect any harnesses or retainers previously disconnected from the front lower control arm.
- Install the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Verify the front wheel alignment and adjust if necessary. Refer to Wheel Alignment Measurement .
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
