Installation Procedure

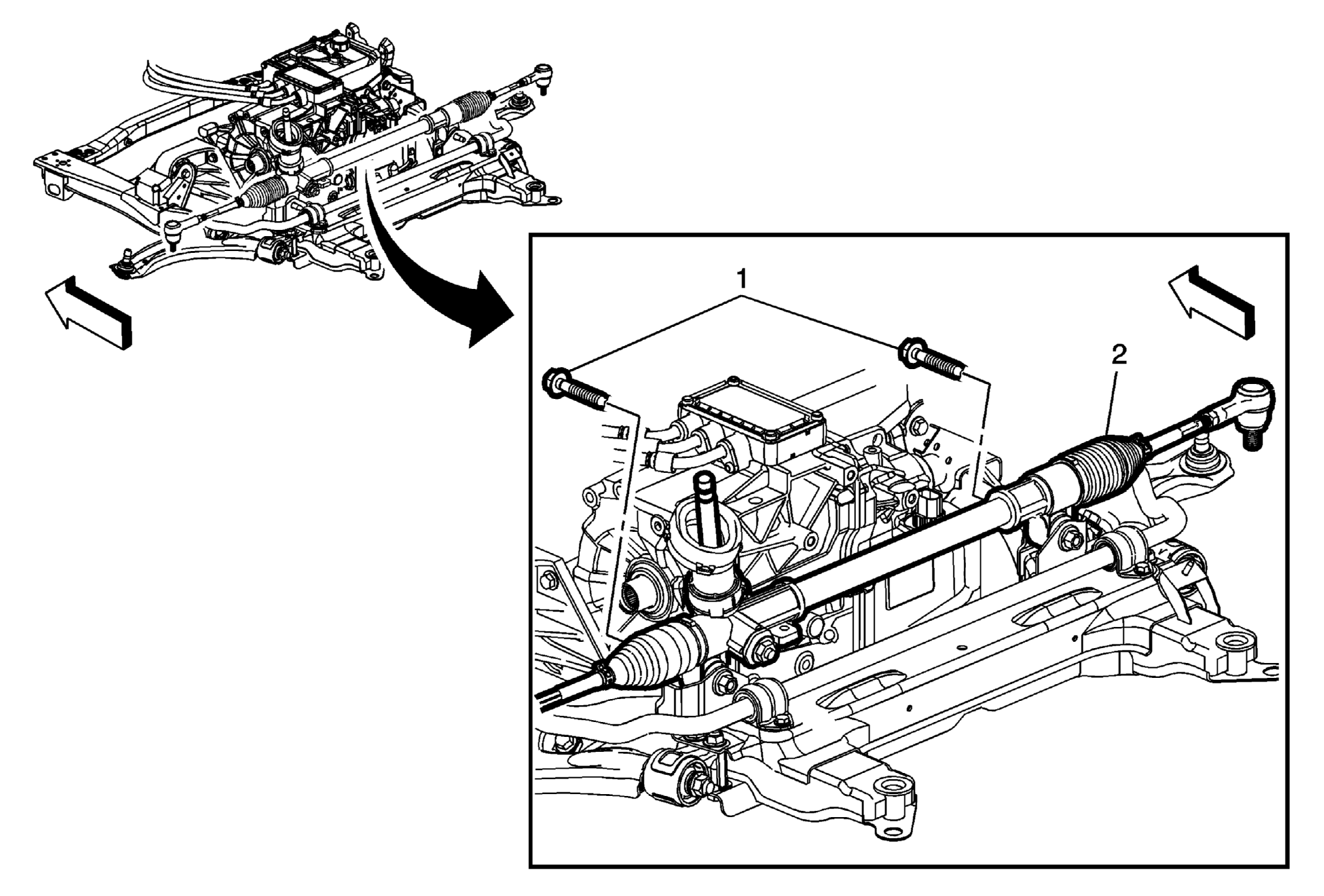

- Position the steering gear (2) on the drivetrain and front suspension frame.
- Install the steering gear bolts (1) and tighten to 110 N.m (81 lb ft).
- Raise the drivetrain and front suspension frame into position. Drivetrain and Front Suspension Frame Replacement
- Connect the lower conduit retainer bracket from the drivetrain and front suspension frame and connect the upper conduit retainer bracket to the drivetrain front and electronic system power supply module frame. 300-Volt Battery Positive and Negative Cable Replacement (Drive Motor Generator Power Inverter Module to Drive Motor Battery)300-Volt Battery Positive and Negative Cable Replacement (Drive Motor Generator Power Inverter Module to High Voltage Battery Disconnect Module)
- Install the drivetrain and front suspension frame stabilizer brackets. Drivetrain and Front Suspension Frame Stabilizer Bracket Replacement
- Tighten the front drivetrain and front suspension frame bolts. Drivetrain and Front Suspension Frame Replacement
- Remove the hydraulic jack and adjustable stands.
- Install the rear transmission mount strut to frame bolts. Transmission Mount Strut Replacement - Rear
- Connect the transmission fluid pump motor cable connector. Transmission Fluid Pump Replacement
- Install Steering Linkage Outer Tie Rod@Steering Knuckle Steering Linkage Outer Tie Rod Replacement
- Install Front Stabilizer Shaft Link@Strut Assembly Stabilizer Shaft Link Replacement
- Install the front, middle, and rear portions of the front compartment splash shield. Front Compartment Splash Shield Replacement (Front)Front Compartment Splash Shield Replacement (Middle)Front Compartment Splash Shield Replacement (Rear)
- Install Front Compartment Air Deflector Front Compartment Air Deflector Replacement
- Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
- Install Intermediate Steering Shaft Inner Boot Intermediate Steering Shaft Inner Boot Replacement
- Install Intermediate Steering Shaft@Steering Gear Intermediate Steering Shaft Replacement
- Enable the high voltage system. High Voltage Enabling
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
CAUTION:
Refer to Fastener Caution .
