Rear Side Door Window Regulator Replacement

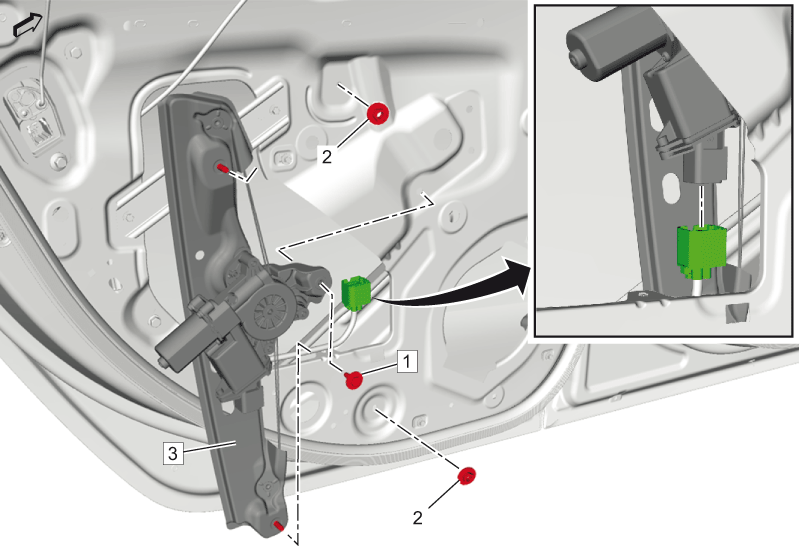

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Side Door Window Replacement
1	Rear Side Door Window Regulator Bolt CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
2	Rear Side Door Window Regulator Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
3	Rear Side Door Window Regulator Procedure  Transfer components as necessary.
