Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Make sure the strut upper mount locating pins are in the correct locations.

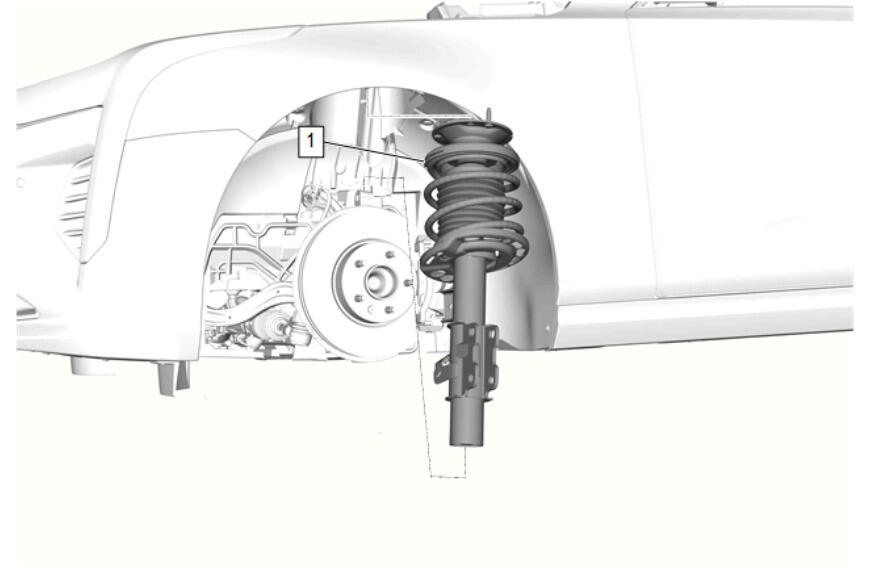

Front Suspension Strut (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Make sure the strut upper mount locating pins are in the correct locations.

Front Suspension Strut Upper Mounting Nut (1) - Install, but do NOT tighten [3x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The final torque on the steering knuckle nut (1) is to be applied during the front camber adjustment procedure.

Steering Knuckle Bolt (2) - Install [2x]
Steering Knuckle Nut (1) - Install and hand tighten [2x]
Courtesy of GENERAL MOTORS COMPANY

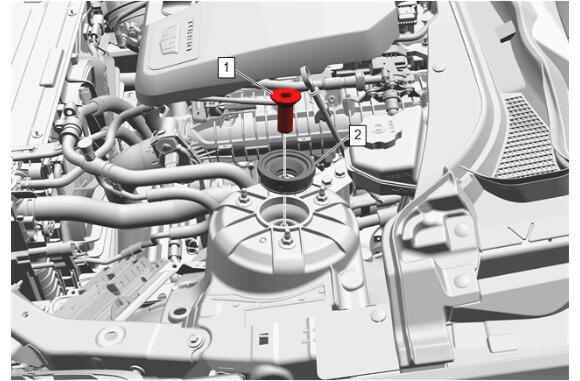

Front Suspension Mount Upper Cup (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Suspension Strut Bumper Stop (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

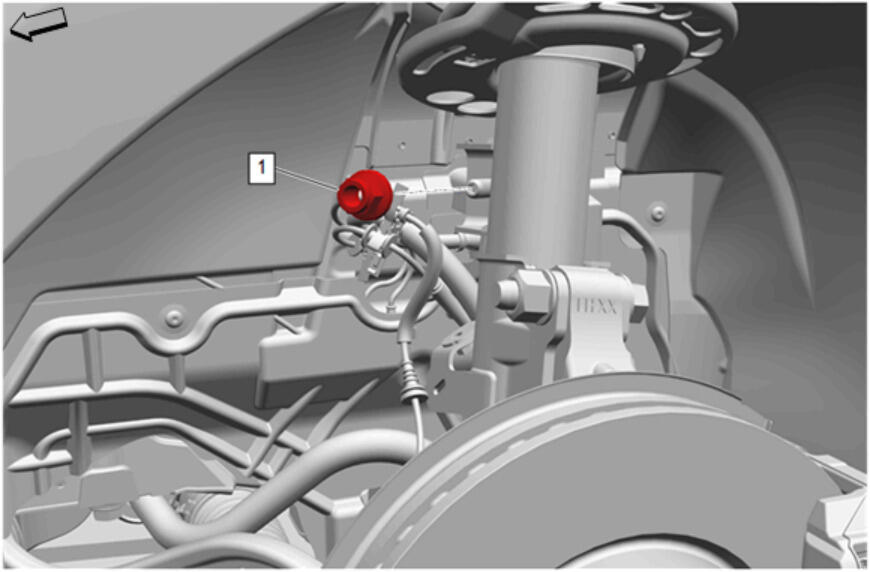

Front Stabilizer Shaft Link Nut- Upper (1) @ Front Suspension Strut - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

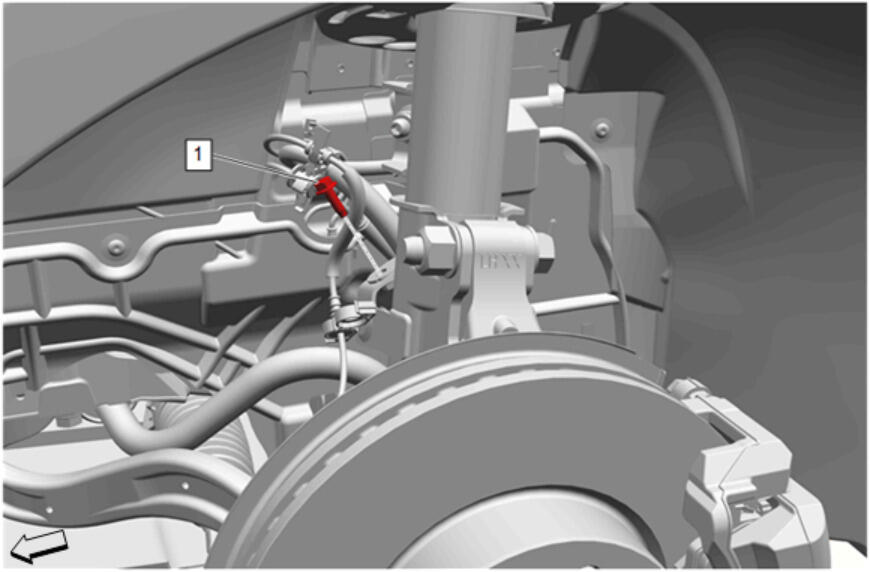

Reposition the front brake hose and install and tighten the brake hose fitting bolt (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

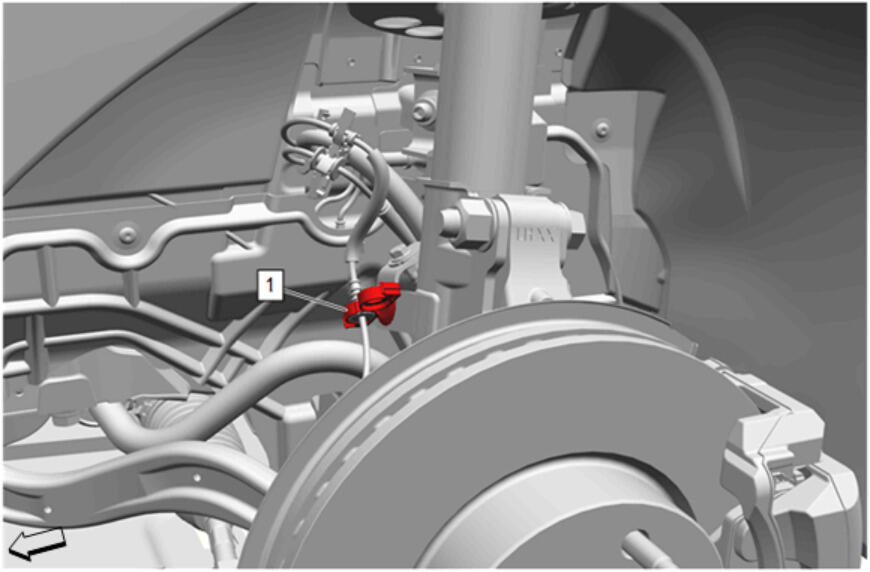

Install the front wheel speed sensor harness retainer (1) to the front suspension strut bracket.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Front Suspension Strut Upper Mounting Nut (1) - Tighten [3x] - Fastener Specifications
Verify the front camber adjustment. Front Camber Adjustment
