Installation Procedure

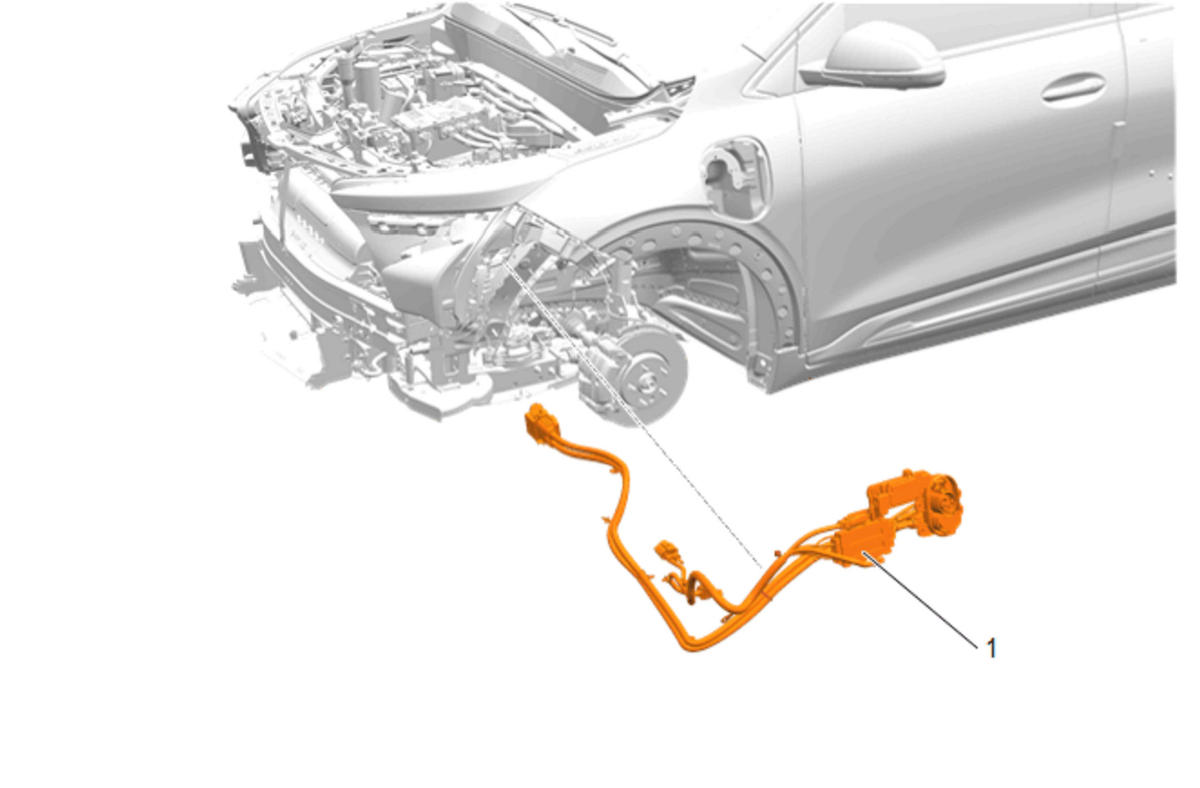

  1. GM5845763Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Receptacle (1) - Install

  2. GM5695989Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Position the radiator surge tank and bracket (3).

  3. Radiator Surge Tank Bracket Nut (2) - Install and tighten - Fastener Specifications
  4. Radiator Surge Tank Bracket Bolt (1) - Install and tighten - Fastener Specifications

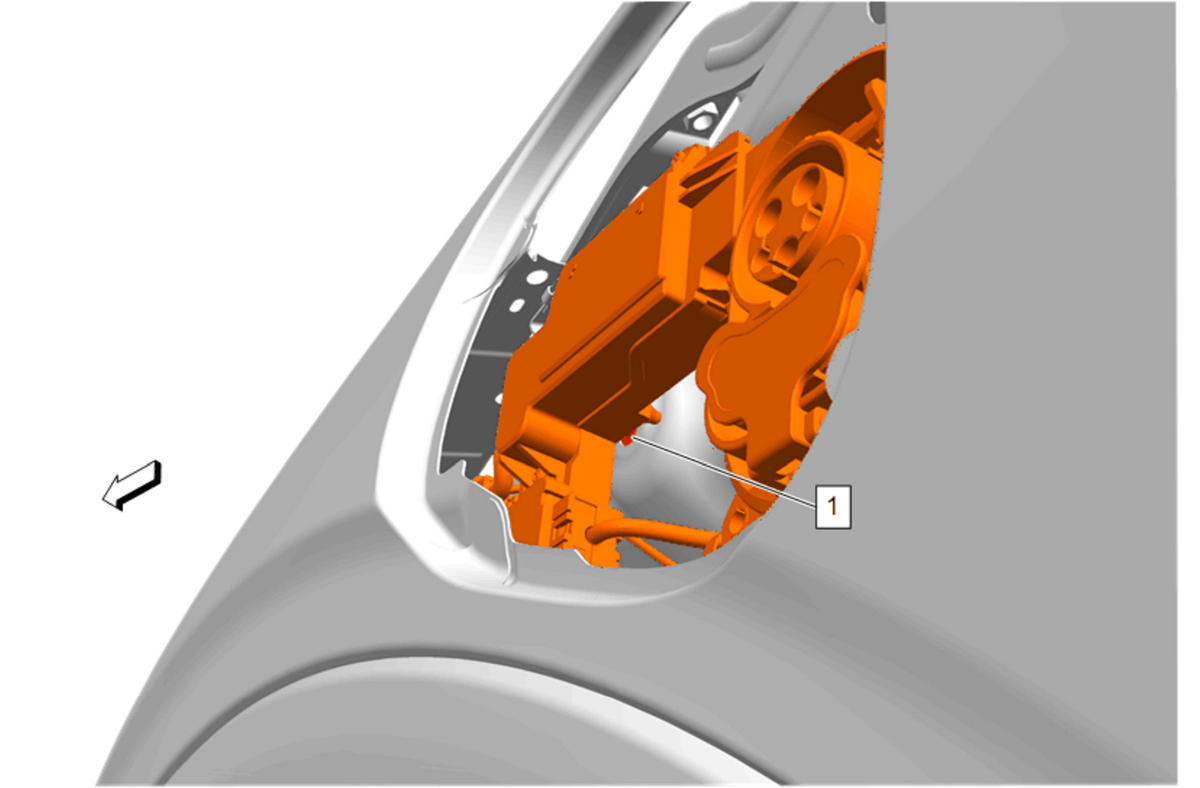

  5. GM5695987Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

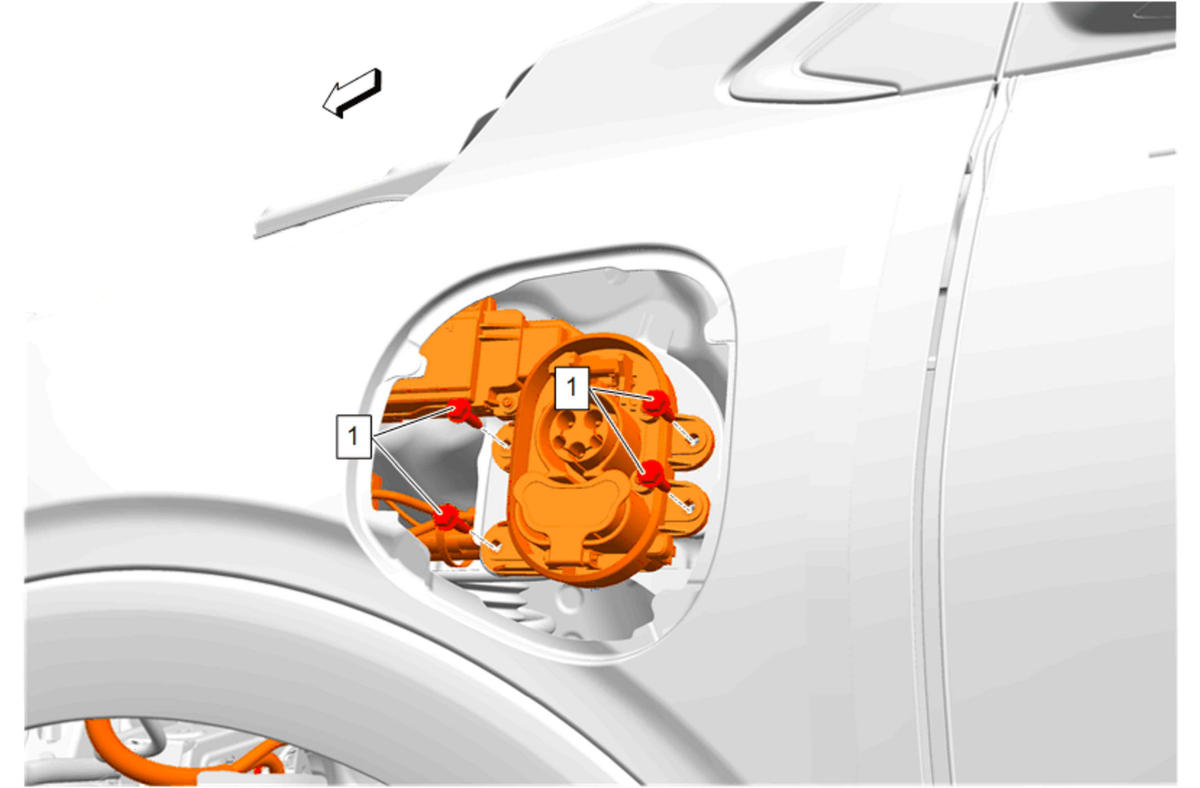

  6. GM5695984Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Receptacle Bolt (1) - Install and tighten - Fastener Specifications [4x]

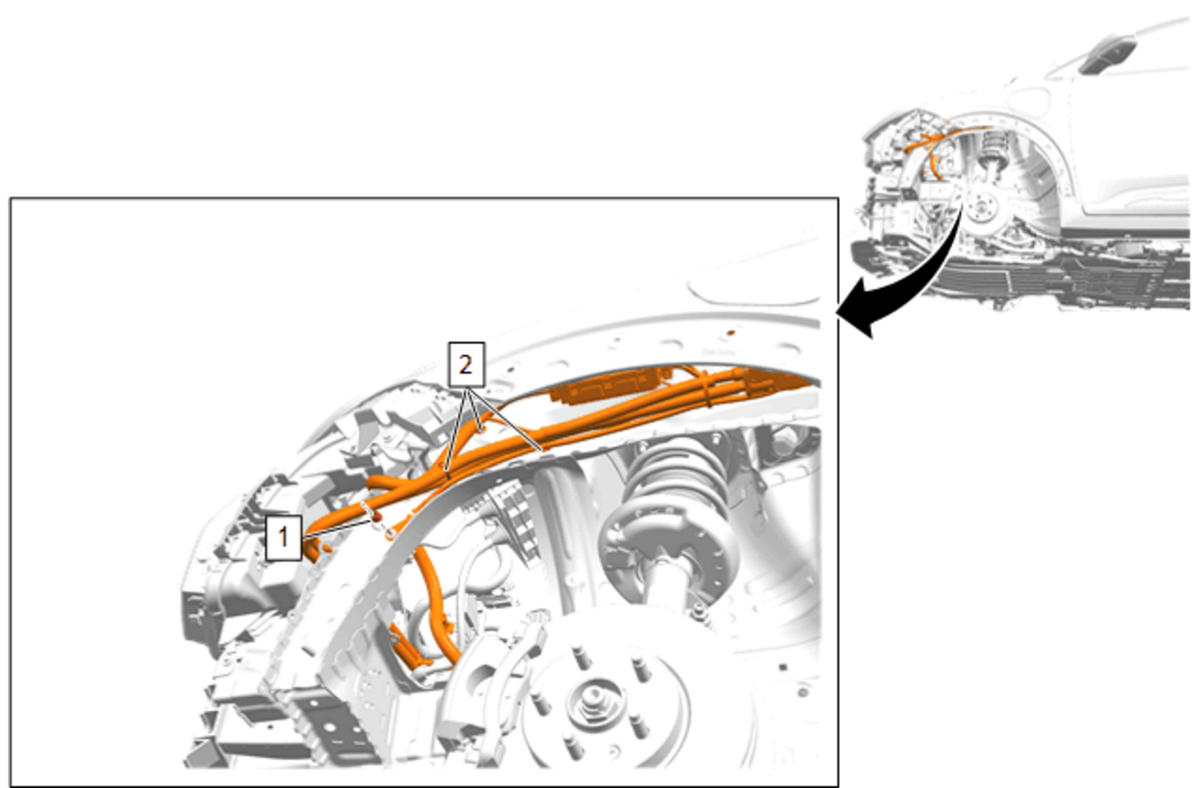

  7. GM5845762Courtesy of GENERAL MOTORS COMPANY

    Ground Nut (1) - Install and tighten - Fastener Specifications

  8. Wiring Harness Retainer (1) - Install [3x]

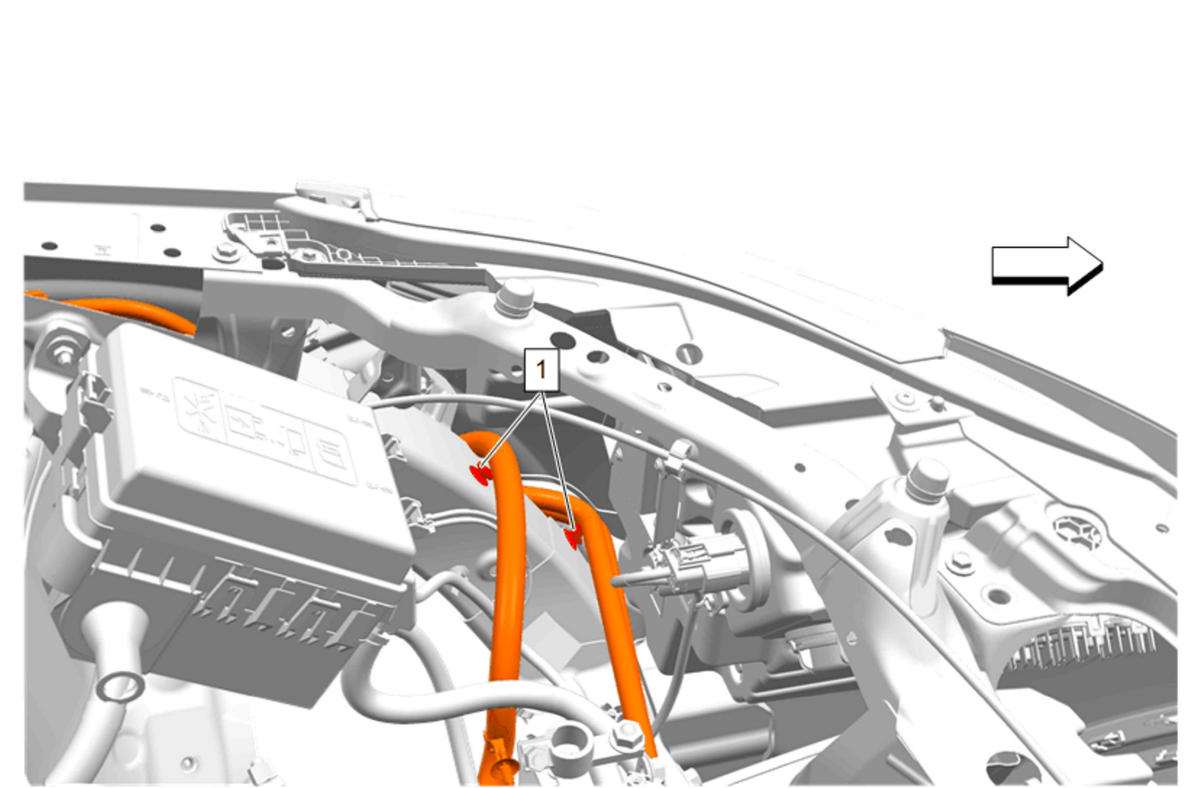

  9. GM5695982Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [2x]

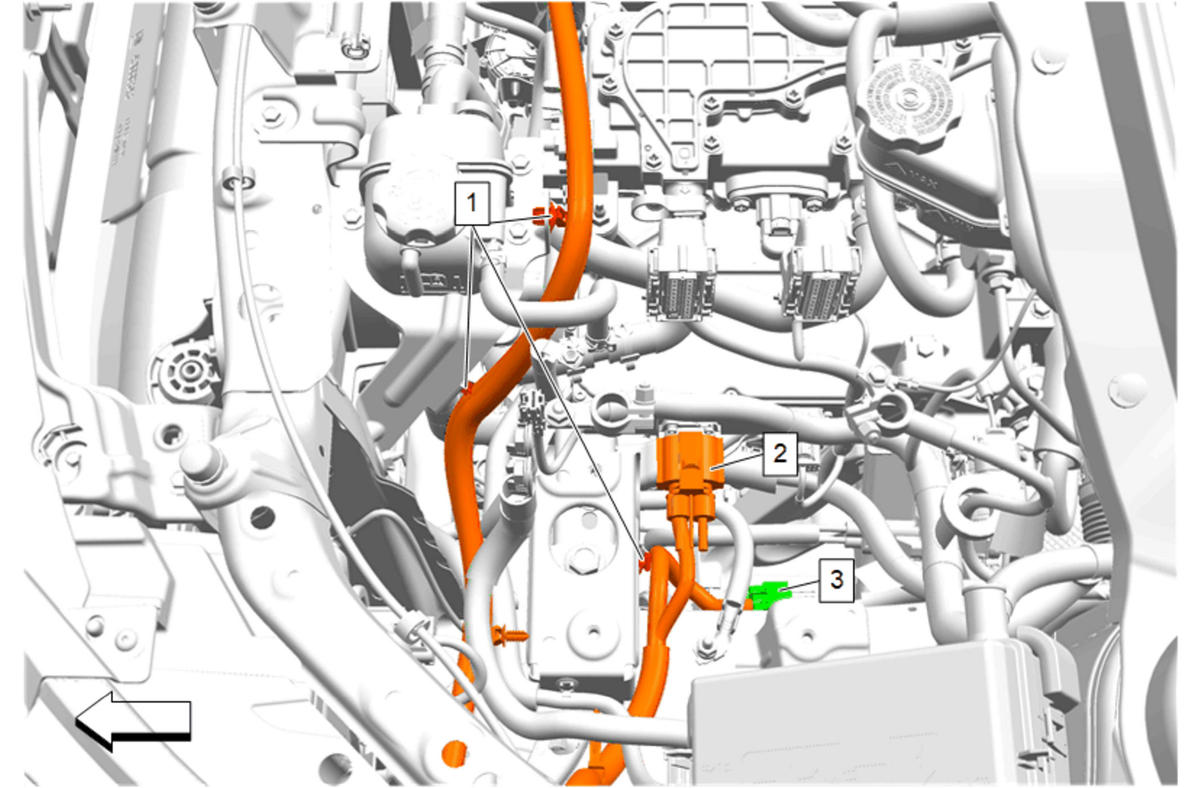

  10. GM5695981Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [3x]

  11. Connect the electrical connector. (2)
  12. Connect the electrical connector. (3)
  13. GM4529646Courtesy of GENERAL MOTORS COMPANY

    Install the receptacle connector (1) to high voltage battery disconnect control module (2) and then lock the handle (3) into the lock position.

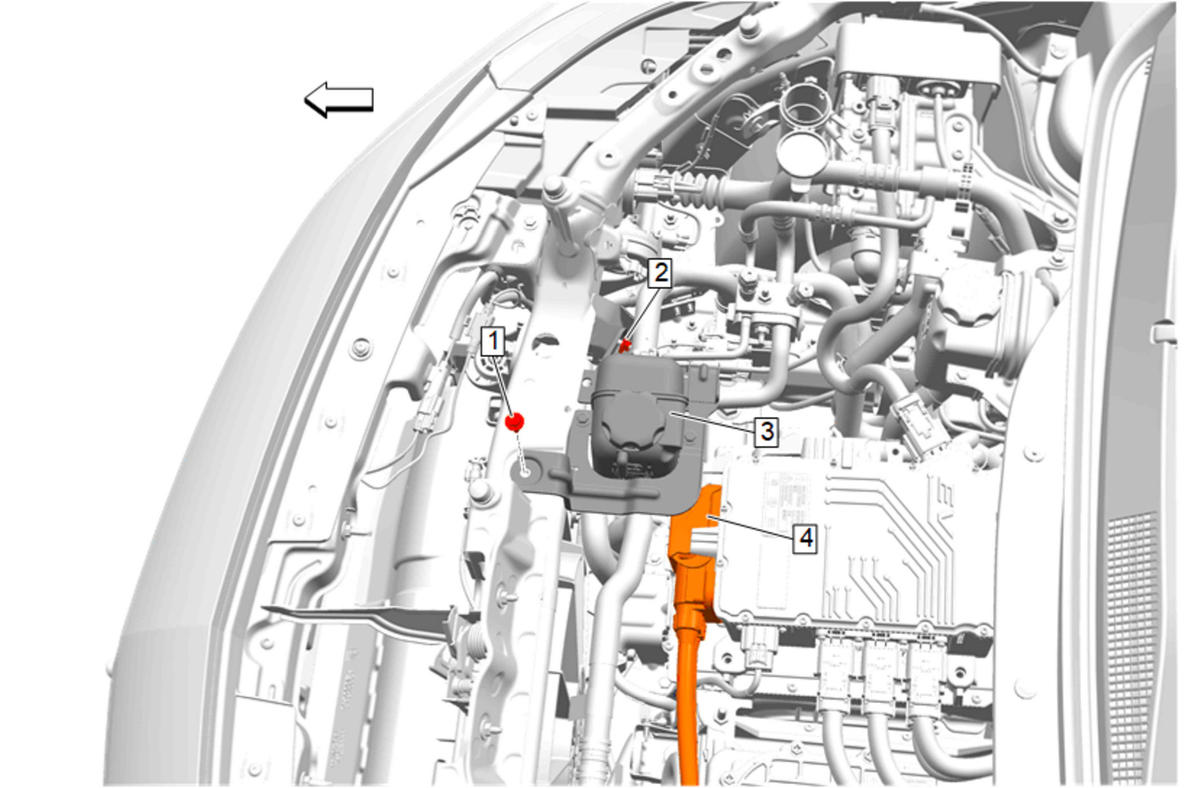

  14. GM5695980Courtesy of GENERAL MOTORS COMPANY

    Position the radiator surge tank and bracket (3).

  15. Radiator Surge Tank Bracket Bolt (1) - Install and tighten - Fastener Specifications
  16. Radiator Surge Tank Bracket Nut (2) - Install and tighten - Fastener Specifications
  17. GM5512526Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Install

  18. GM5512525Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Bolt (1) - Install and tighten - Fastener Specifications

  19. GM5512524Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Retainer (1) @ Battery Tray - Install

  20. {If equipped} Drive Motor Battery Charger Receptacle Retainer (2) @ Battery Tray - Install
  21. GM5512523Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) @ Battery Tray - Install

  22. GM5512520Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a battery lifting tool to install.

    Battery (1) - Install

  23. GM5512519Courtesy of GENERAL MOTORS COMPANY

    Battery Retainer Assembly (2) - Install

  24. Battery Retainer Bolt (1) - Install and tighten - Fastener Specifications
  25. GM5512499Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Support (2) - Install

  26. Battery Tray Support Nut (1) - Install and tighten - Fastener Specifications
  27. GM5512518Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (3) @ Battery Positive Post - Install

  28. Battery Positive Cable Clamp Fastener (2) - Install and tighten - Fastener Specifications
  29. Battery Positive Cable Terminal Cover (1) - Install
  30. GM5512497Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Reinforcement (3) - Install

  31. Battery Tray Reinforcement Bolt (2) - Install and tighten - Fastener Specifications
  32. Battery Tray Reinforcement Nut (1) - Install and tighten - Fastener Specifications
  33. GM5512496Courtesy of GENERAL MOTORS COMPANY

    Battery Current Sensor (2) @ Battery Negative Cable (1) - Install

  34. GM5845282Courtesy of GENERAL MOTORS COMPANY

    Battery Current Sensor (1) @ Battery Tray - Install

  35. Battery Current Sensor Connector (2) - Connect
  36. GM5845281Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Nut (1) - Install and tighten - Fastener Specifications

  37. GM5668319Courtesy of GENERAL MOTORS COMPANY

    Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .

  38. GM5512553Courtesy of GENERAL MOTORS COMPANY

    Charge Port Housing (1) - Install

  39. GM5671866Courtesy of GENERAL MOTORS COMPANY

    Charge Port Door (1) - Install

  40. GM5671865Courtesy of GENERAL MOTORS COMPANY

    Charge Port Door Hinge Seal (1) - Install

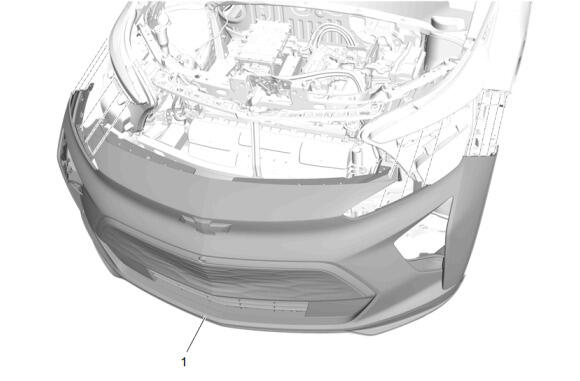

  41. GM5662711Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation

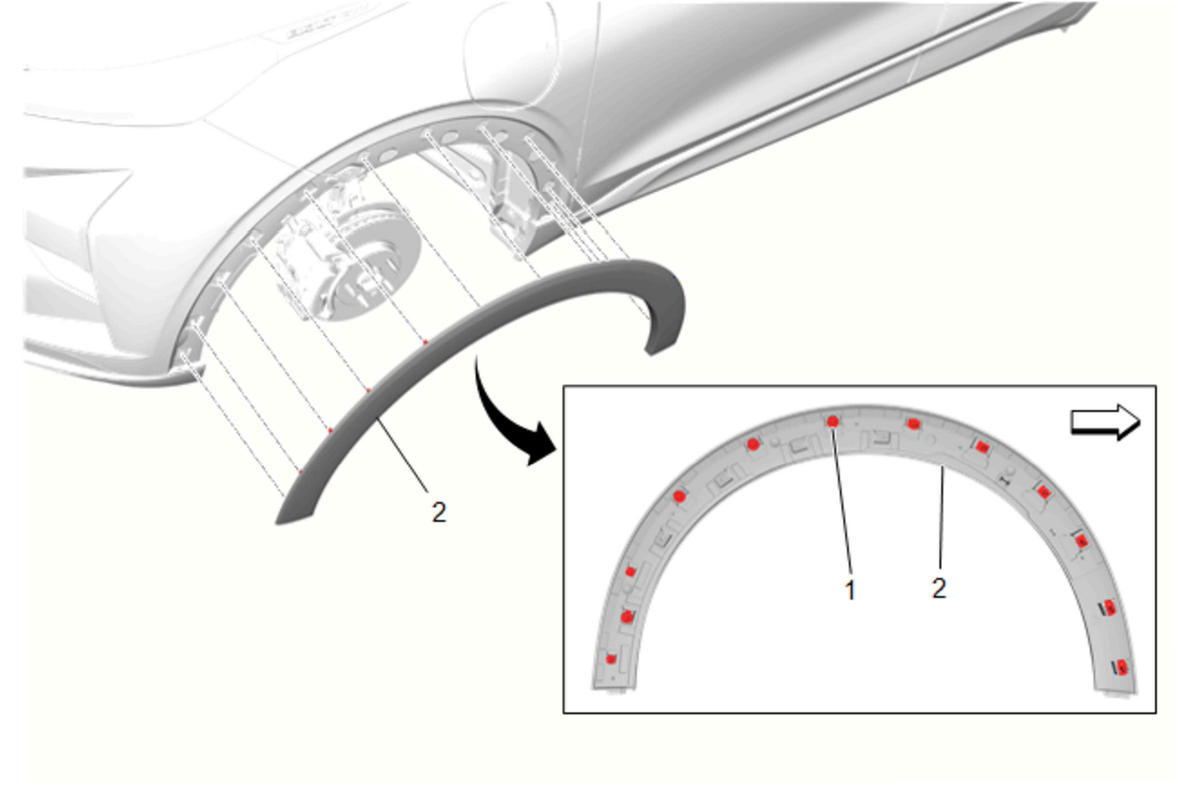

  42. GM5668987Courtesy of GENERAL MOTORS COMPANY

    Position the front wheel opening molding (2) to the vehicle and seat the front wheel opening molding clips (1) into the front fender and front bumper fascia.

  43. Front Wheel Opening Molding (2) - Install
  44. GM5491620Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (2) - Install

  45. Front Wheelhouse Liner Retainer (1) - Install [2x]
  46. GM5661891Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (1) - Install and tighten [13x] - Fastener Specifications

  47. GM5491618Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Insulator Bolt (1) - Install and tighten [3x] - Fastener Specifications

  48. GM5493680Courtesy of GENERAL MOTORS COMPANY

    Front Tire Front Air Deflector (2) - Install

  49. Front Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  50. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  51. Enable the high voltage system. High Voltage Enabling
