Installation Procedure

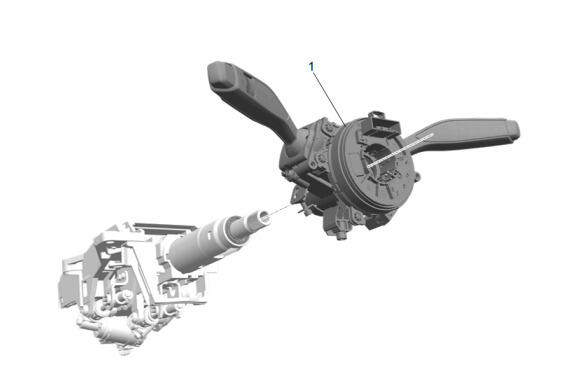

  1. GM6334696Courtesy of GENERAL MOTORS COMPANY

    Ensure the steering wheel airbag coil is CENTERED during installation. Steering Wheel Airbag Coil Centering

  2. Install the turn signal switch bracket as an assembly with the turn signal switch, gear shift control module, and steering wheel airbag coil (1).

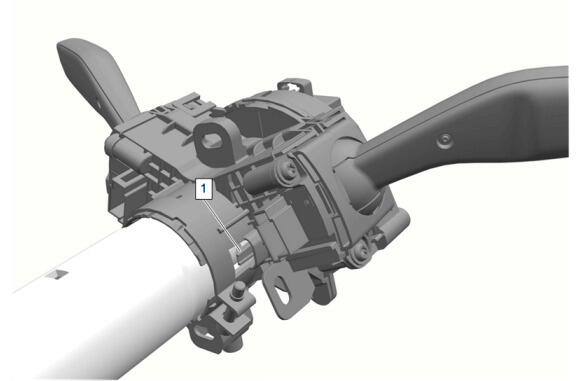

  3. GM6334697Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Engage the left and right turn signal switch bracket retaining tabs (1).

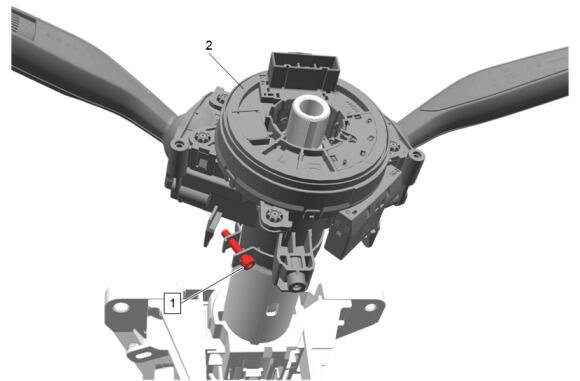

  4. GM6334692Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT remove the bolt in the turn signal switch bracket band clamp. The turn signal switch bracket will need to be replaced if the bolt from the turn signal switch bracket band clamp is fully removed.

    Tighten the turn signal switch bracket band clamp (1). Fastener Specifications

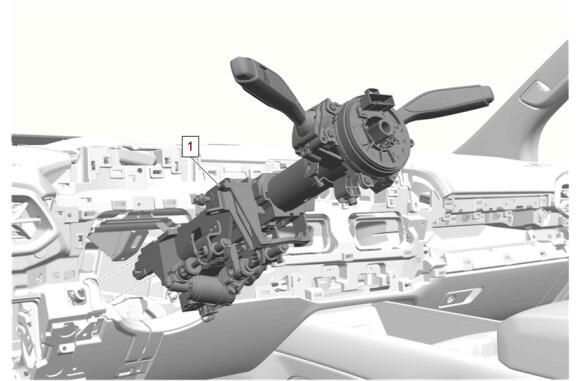

  5. GM6339647Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install

  6. Connect the electrical connectors and install the wiring harness retainers as necessary.

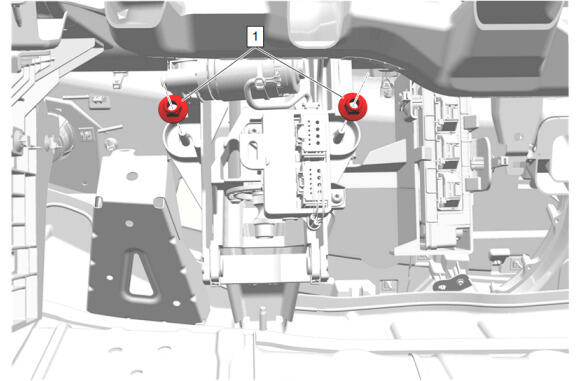

  7. GM6307296Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut - Rear (1) - Install and hand tighten [2x]

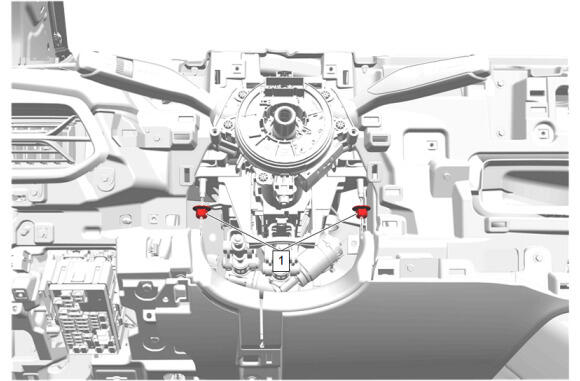

  8. GM6307292Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Column Nut - Front (1) - Install and tighten [2x] - Fastener Specifications

  9. GM6307296Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut - Rear (1) - Tighten [2x] - Fastener Specifications

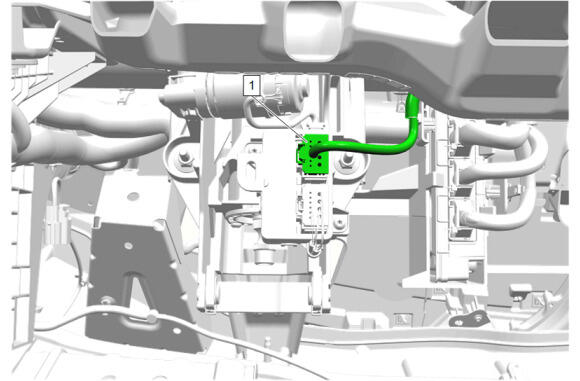

  10. GM6308555Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  11. GM5814882Courtesy of GENERAL MOTORS COMPANY

    Upper Intermediate Steering Shaft @ Steering Column - Install

  12. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  13. Upper Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications

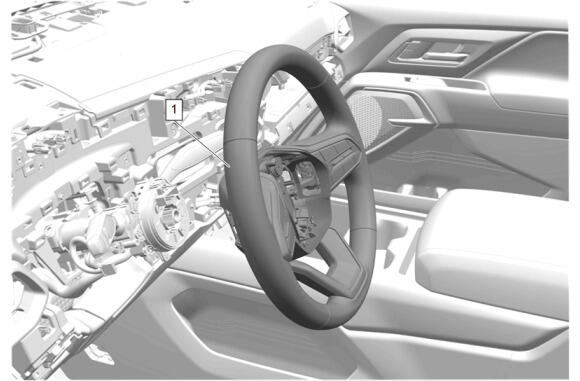

  14. GM6334695Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  15. Steering Wheel (1) - Install

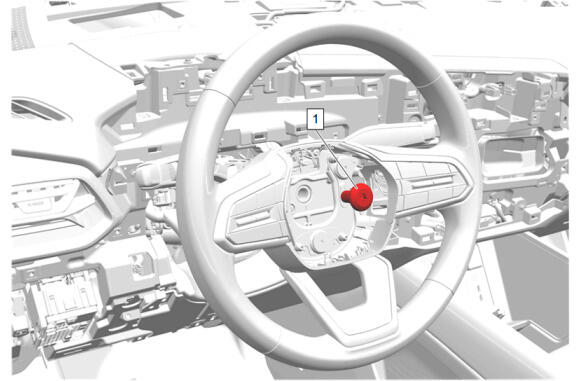

  16. GM6334694Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  17. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  18. GM6230795Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  19. Install any connector position assurance (CPA) devices or secondary locks.
  20. WARNING:

    After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

  21. Steering Wheel Airbag (1) - Install
  22. GM6230794Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications

  23. GM6230793Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Access Hole Cover - Left Side and Right Side (1) - Install [2x]

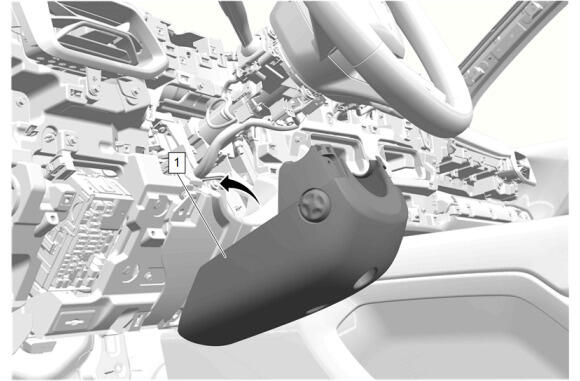

  24. GM6307190Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  25. Instrument Panel Steering Column Lower Trim Cover (1) - Install

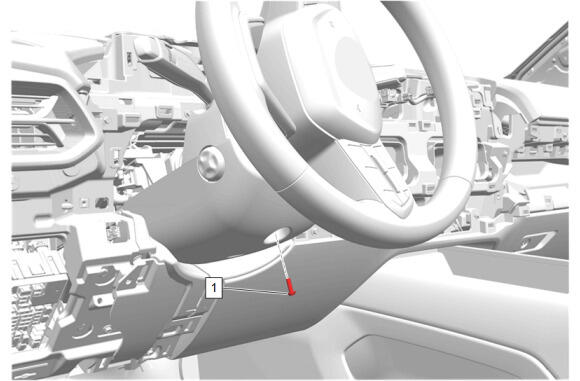

  26. GM6307224Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

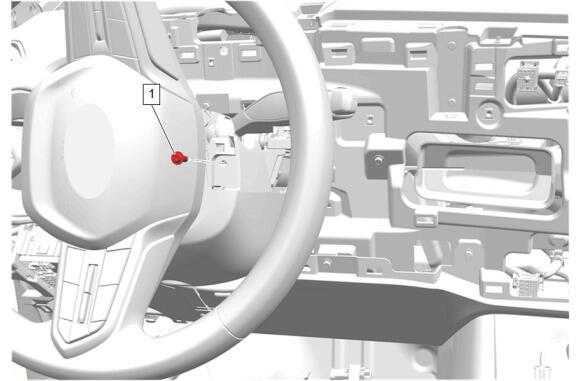

  27. GM6307227Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  28. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

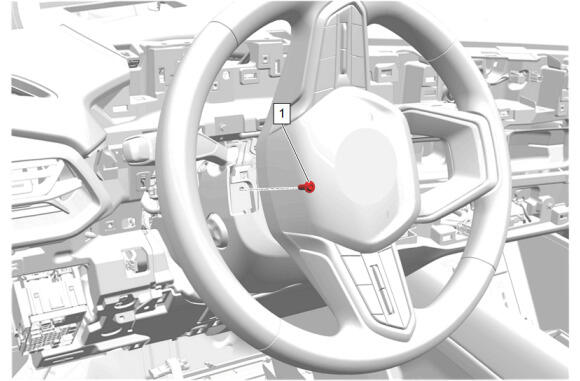

  29. GM6307223Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  30. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  31. Turn the steering wheel to the centered position.

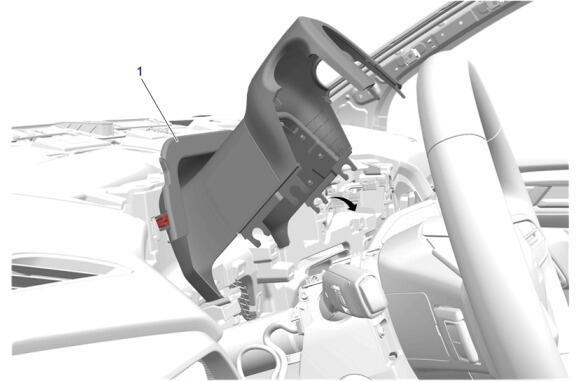

  32. GM6313514Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install

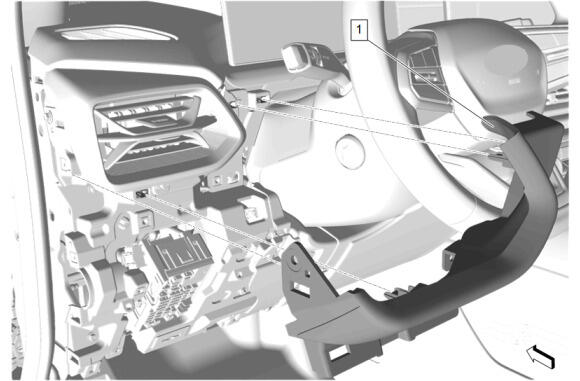

  33. GM6283540Courtesy of GENERAL MOTORS COMPANY

    Starting with the top right edge of the left instrument panel center trim pad (1) and working your way left, install the top edge under the instrument panel air outlet bezel.

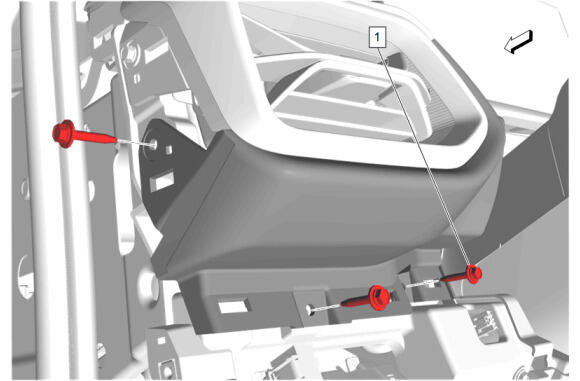

  34. GM6283539Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [3x] - Fastener Specifications

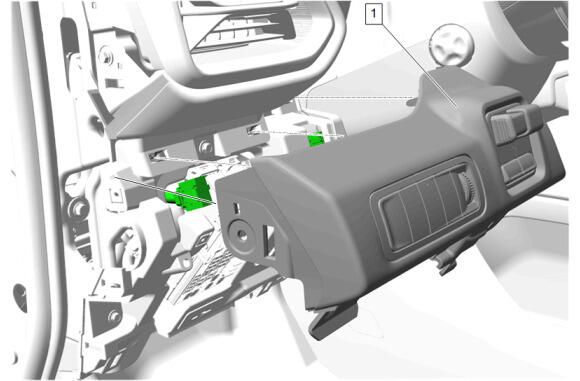

  35. GM6277908Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  36. Instrument Panel Switch Trim Plate (1) - Install

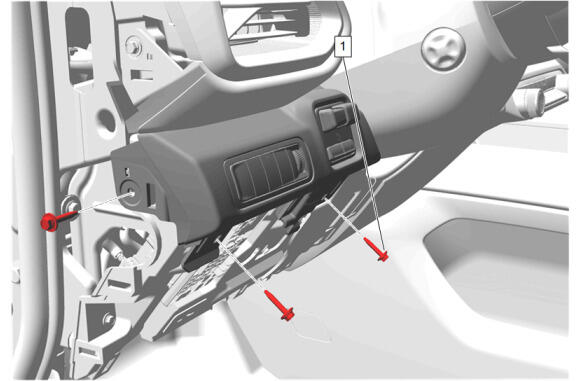

  37. GM6277907Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten [3x] - Fastener Specifications

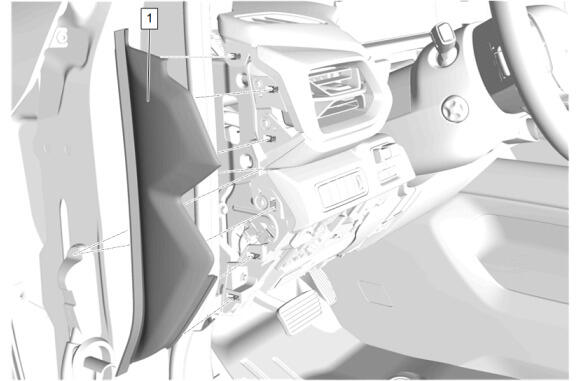

  38. GM6274175Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Line up flange around the front side door weatherstrip

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  39. GM6273895Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Instrument Panel Knee Bolster (2) - Install

  40. Instrument Panel Knee Bolster Bolt (1) - Install and tighten - Fastener Specifications
  41. Enable the SIR System. SIR Disabling and Enabling
