Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

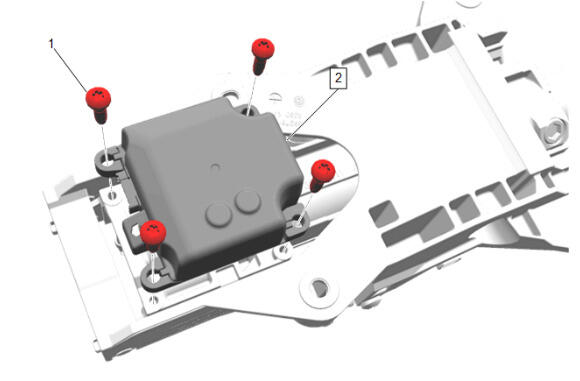

Column Lock Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Steering Column Lock Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

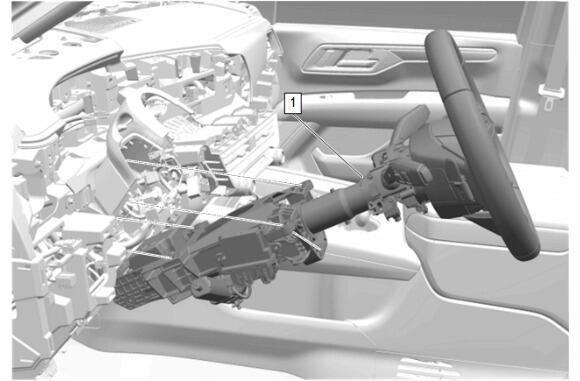

Steering Column (1) - Install - Steering Column Removal and Installation (UV6) , or Steering Column Removal and Installation (- UV6)
Program the steering column lock control module. Control Module References
