Trouble Code Charts: Notes

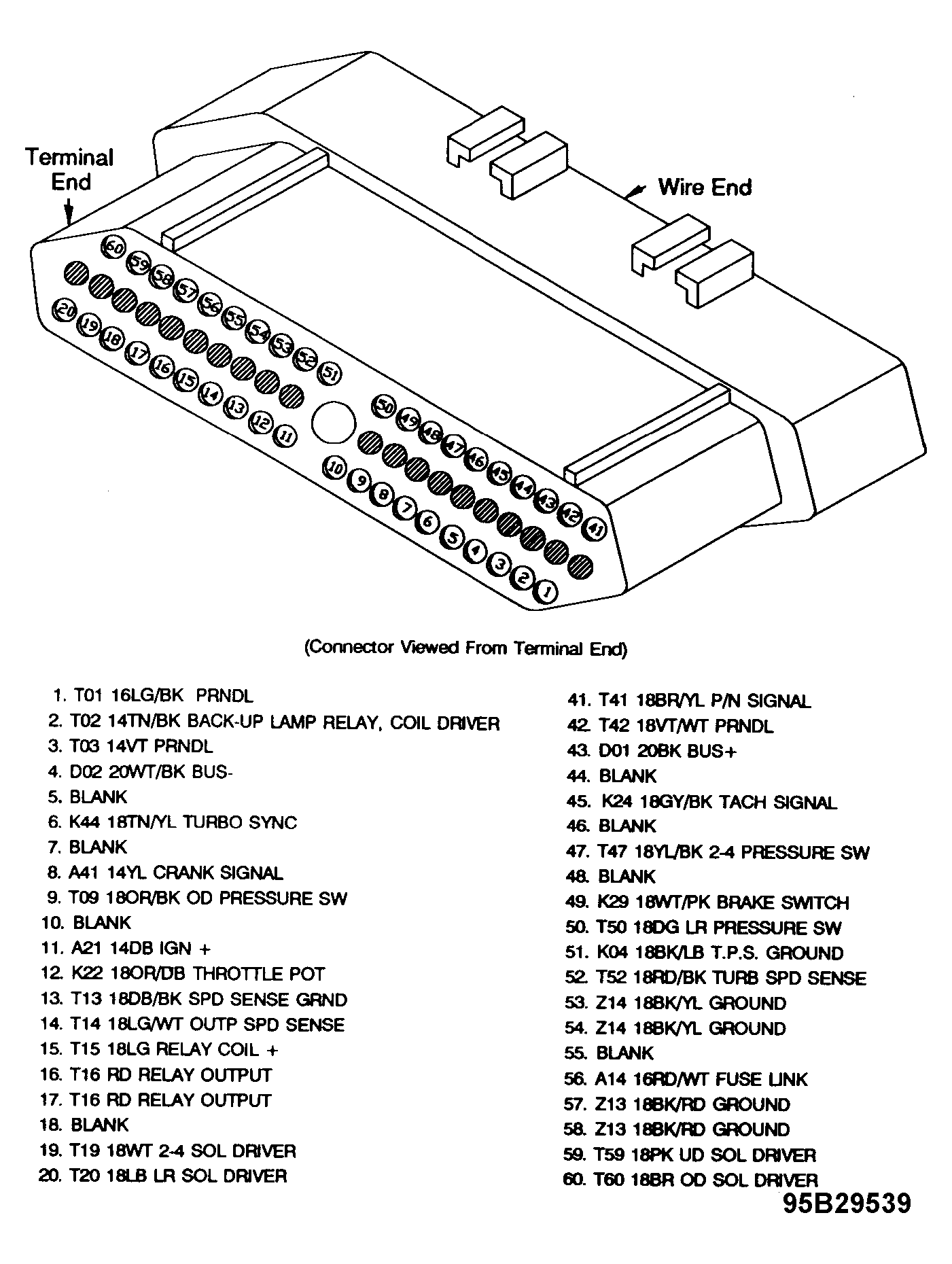

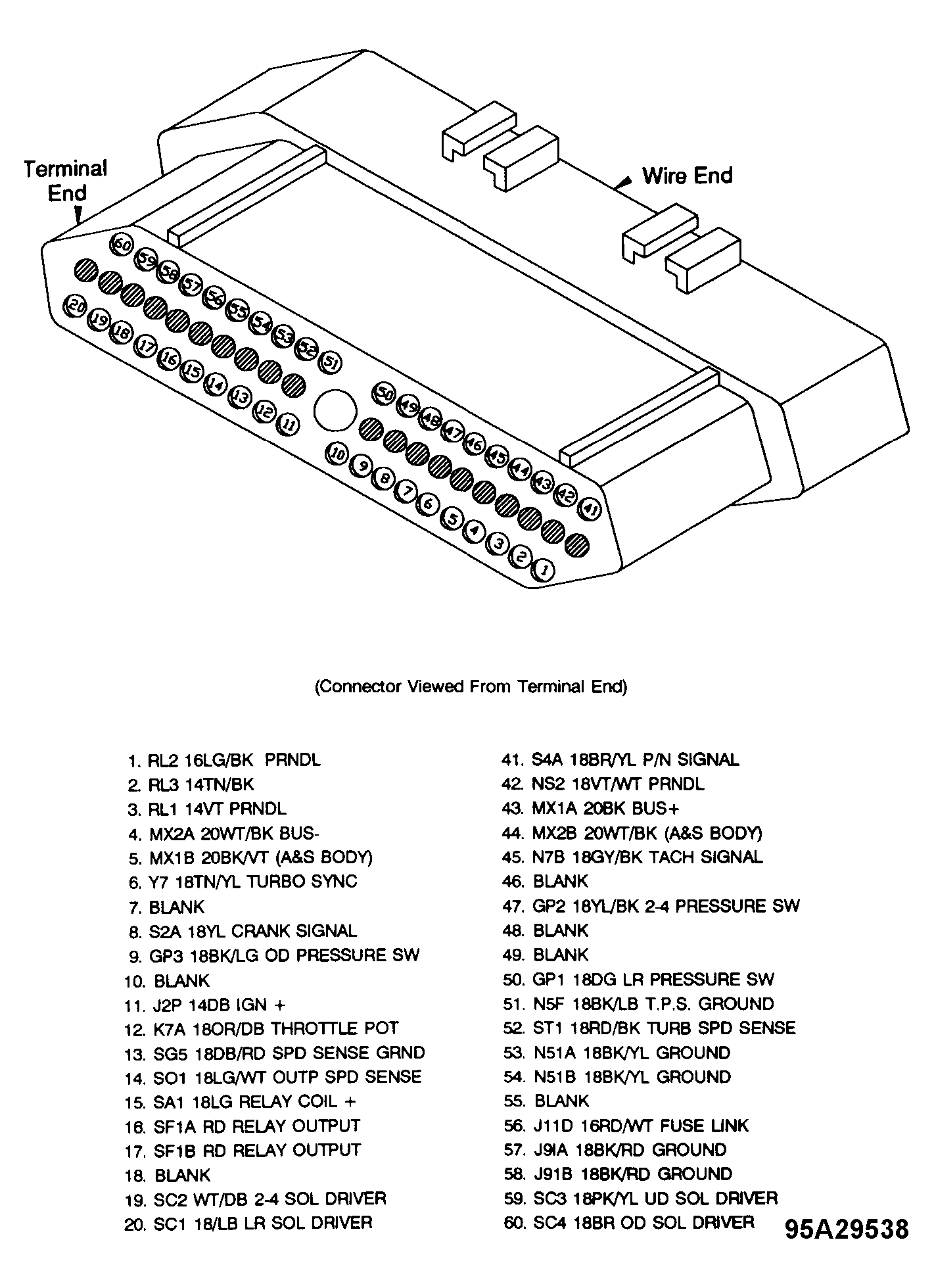

To diagnose problems, see appropriate trouble code diagnostic chart and wiring diagram.

See REPAIR VERIFICATION TEST PROCEDURE  .

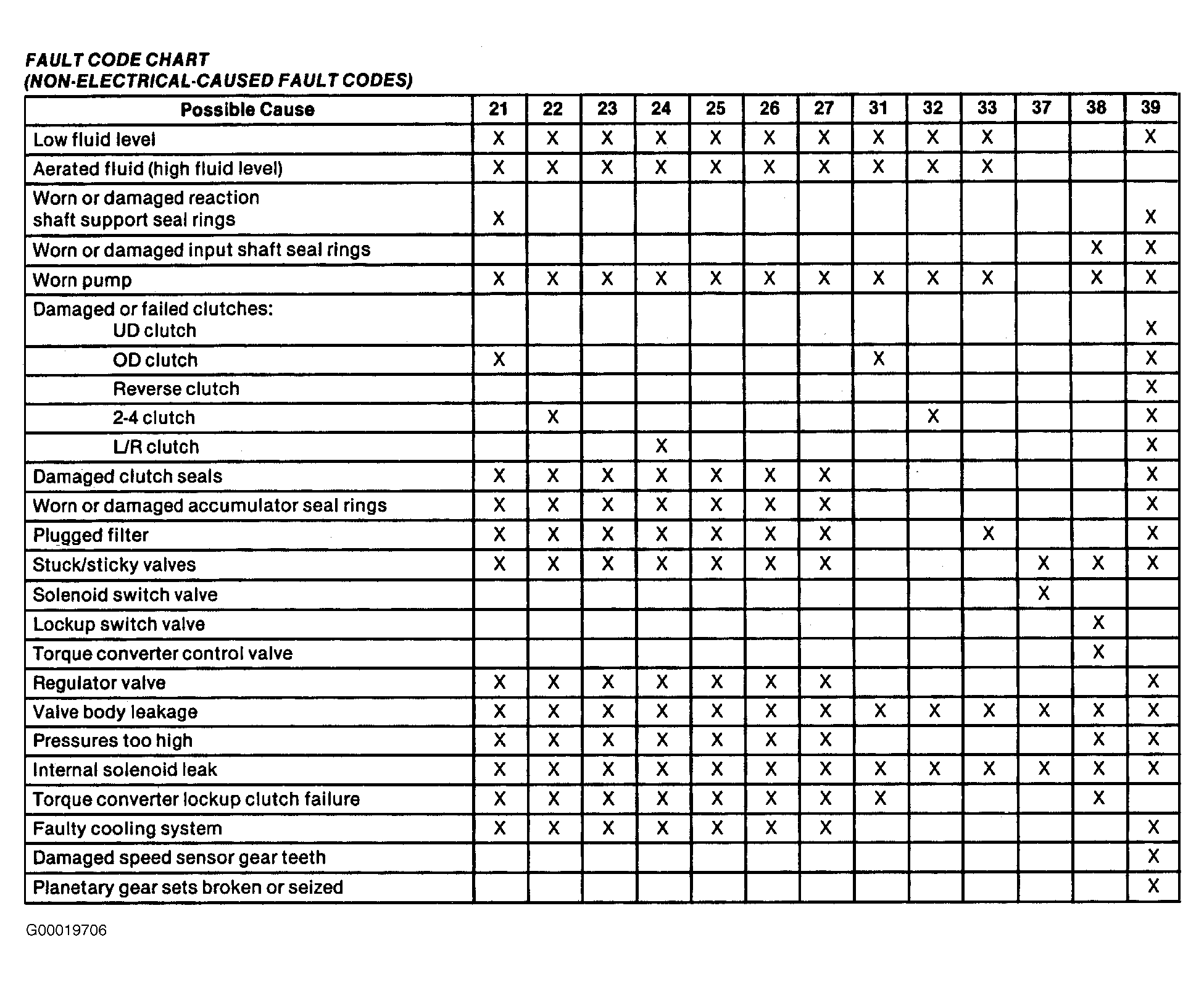

Fault Code Number	Condition
21	OD clutch pressure too low
22	2-4 clutch pressure too low
23	2-4 clutch and OD clutch pressures too low
24	L-R clutch pressure too low
25	L-R clutch and OD clutch pressures too low
26	L-R clutch and 2-4 clutch pressures too low
27	OD, 2-4, and L-R clutch pressures too low
31	OD clutch pressure switch response failure
32	2-4 pressure switch response failure
33	2-4 and OD clutch pressure response failures
37	Solenoid switch valve failure
38	Partial lockup control out of range
39	Speed ratio default

Fault	Code	Limp-In
Internal A-604 Controller	11	Yes
Battery Was Disconnected	12	No
Internal A-604 Controller	13	Yes
Relay Output Always On	14	Yes
Relay Output Always Off	15	Yes
Internal A-604 Controller	16	Yes
Internal A-604 Controller	17	Yes
Engine Speed Sensor Circuit	18	Yes
Bus Communication With Engine Controller	19	No
Switched Battery	20	Yes
OD Pressure Switch Circuit	21	Yes
2-4 Pressure Switch Circuit	22	Yes
2-4/OD Pressure Switch Circuit	23	Yes
LR Pressure Switch Circuit	24	Yes
LR/OD Pressure Switch Circuit	25	Yes
LR/2-4 Pressure Switch Circuit	26	Yes
All Pressure Switch Circuits	27	Yes
Illegal Shifter Positions	28	No
Throttle Position Signal	29	No
OD Hydraulic Pressure Switch	31	Yes
2-4 Hydraulic Pressure Switch	32	Yes
OD/2-4 Hydraulic Pressure Switch	33	Yes
Solenoid Switch Valve	37	No
Lockup Control	38	No
Gear Ratio Error	39	Yes
LR Solenoid Circuit	41	Yes
2-4 Solenoid Circuit	42	Yes
OD Solenoid Circuit	43	Yes
UD Solenoid Circuit	44	Yes
Internal A-604 Controller	45	No
3-4 Shift Abort	46	No

Model Name	Body Type
Acclaim, Spirit & LeBaron Sedan	A
Caravan, Town & Country, Voyager	S
Dynasty & New Yorker	C
Daytona	G
LeBaron Convertible/Coupe	J
Horizon & Omni	L
Shadow & Sundance	P
Fifth Ave. & Imperial	Y
