Test G: Doors Fail To Lock From Either Switch: Notes

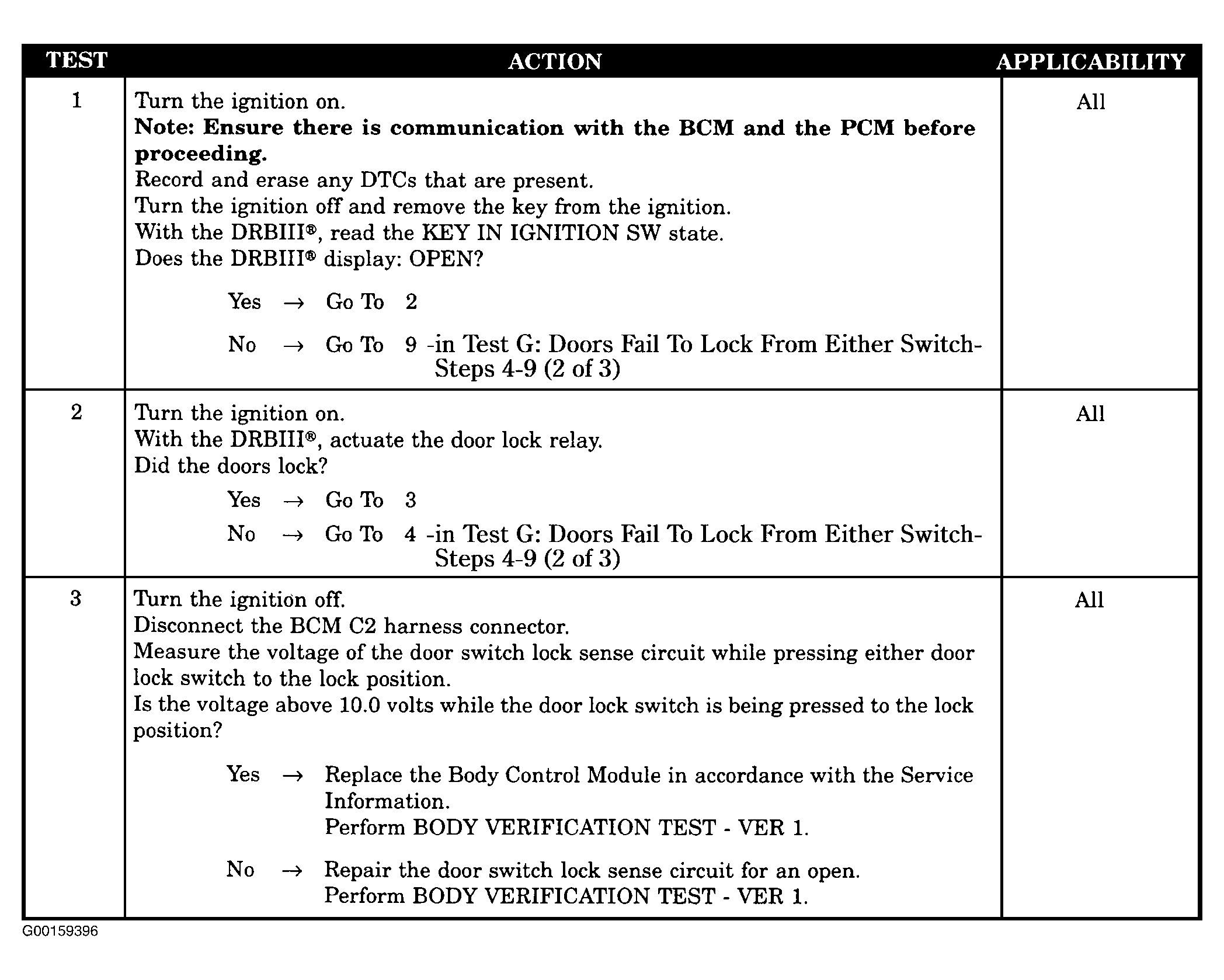

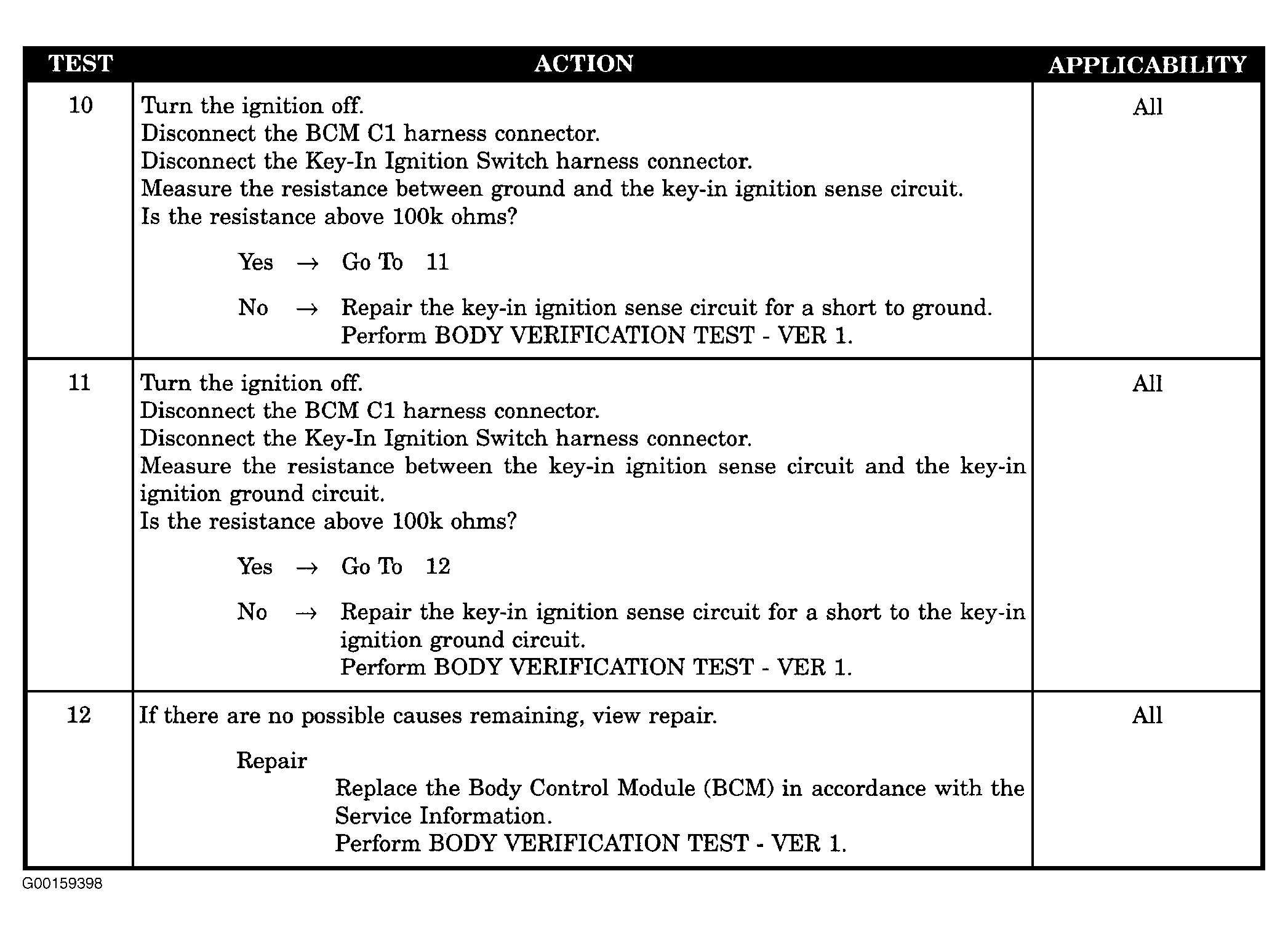

For doors fail to lock from either switch diagnostic procedures, see Figure-Figure . For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
