Liftgate Cylinder Lock Switch: Installation

  1. Install liftgate cylinder lock switch on rear of liftgate lock cylinder without rotating the switch (Figure ).
  2. Install the liftgate cylinder U-bracket by sliding it in.
  3. Install switch E-clip and connector.
  4. Install the liftgate trim panel (Refer to TRIM PANEL - INSTALLATION ).

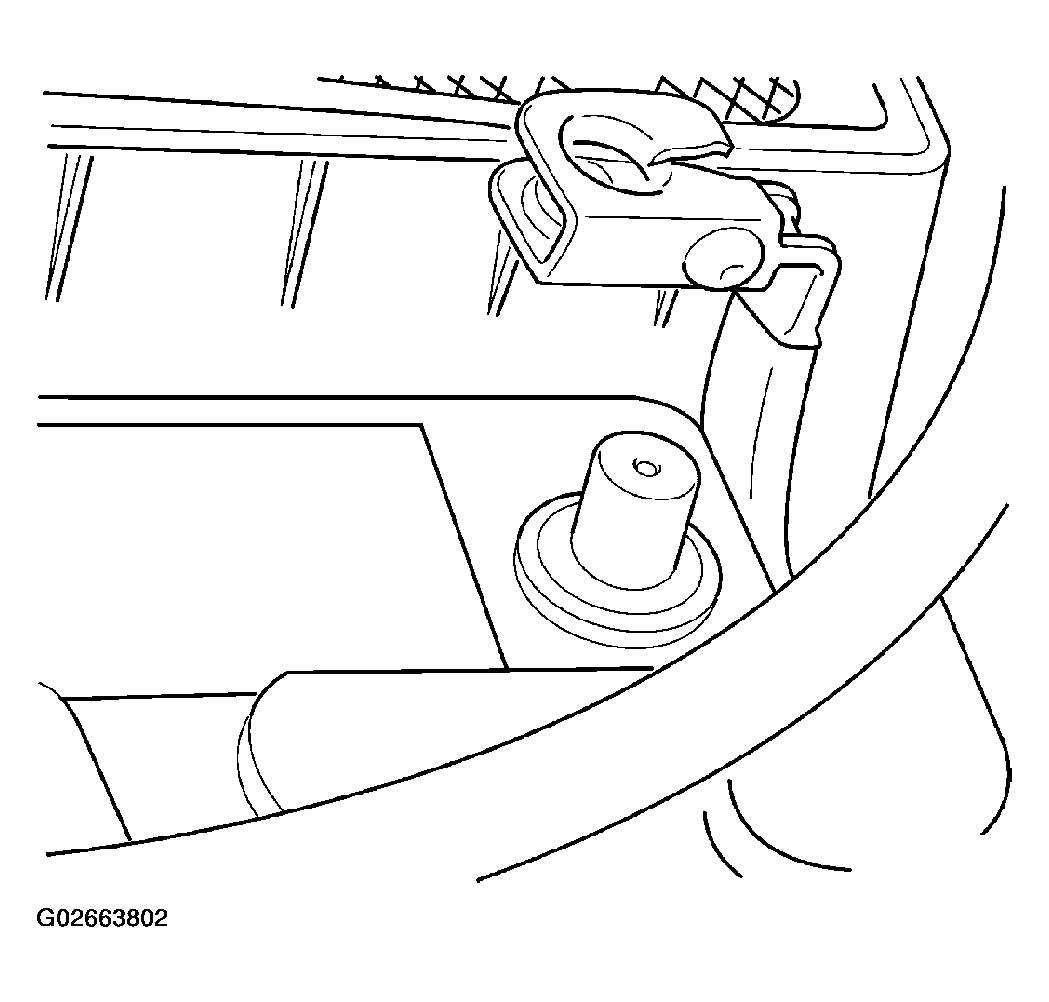

  5. Connect the battery negative cable (Figure ).
  6. Close hood.
  7. Verify vehicle and system operation.
