Glass Run Lower Channel: Installation

Place door glass run lower channel through front access hole into key hole slots (Fig 1 ).

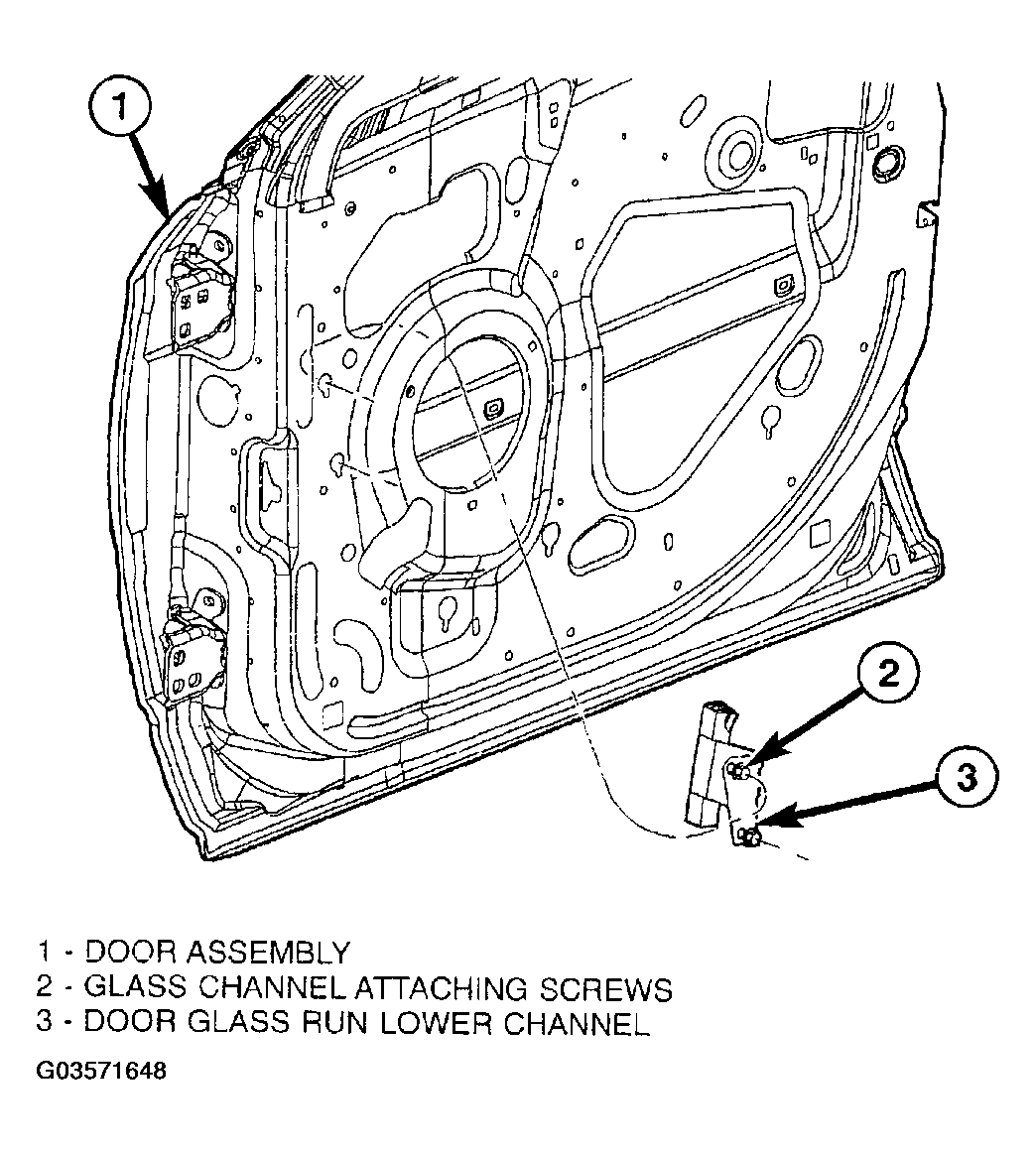

Fig 1: Identifying Door Glass Run Lower Channel
Courtesy of DAIMLERCHRYSLER CORP.
Tighten screws attaching door glass run lower channel to inner door panel to 6 N.m (55 in. lbs.) torque.
Place watershield into position. (Refer to INSTALLATION ).
Install door trim panel. (Refer to INSTALLATION ).
