Shift Interlock Cable: Installation

Verify that ignition key is in ACC position (Fig 1).

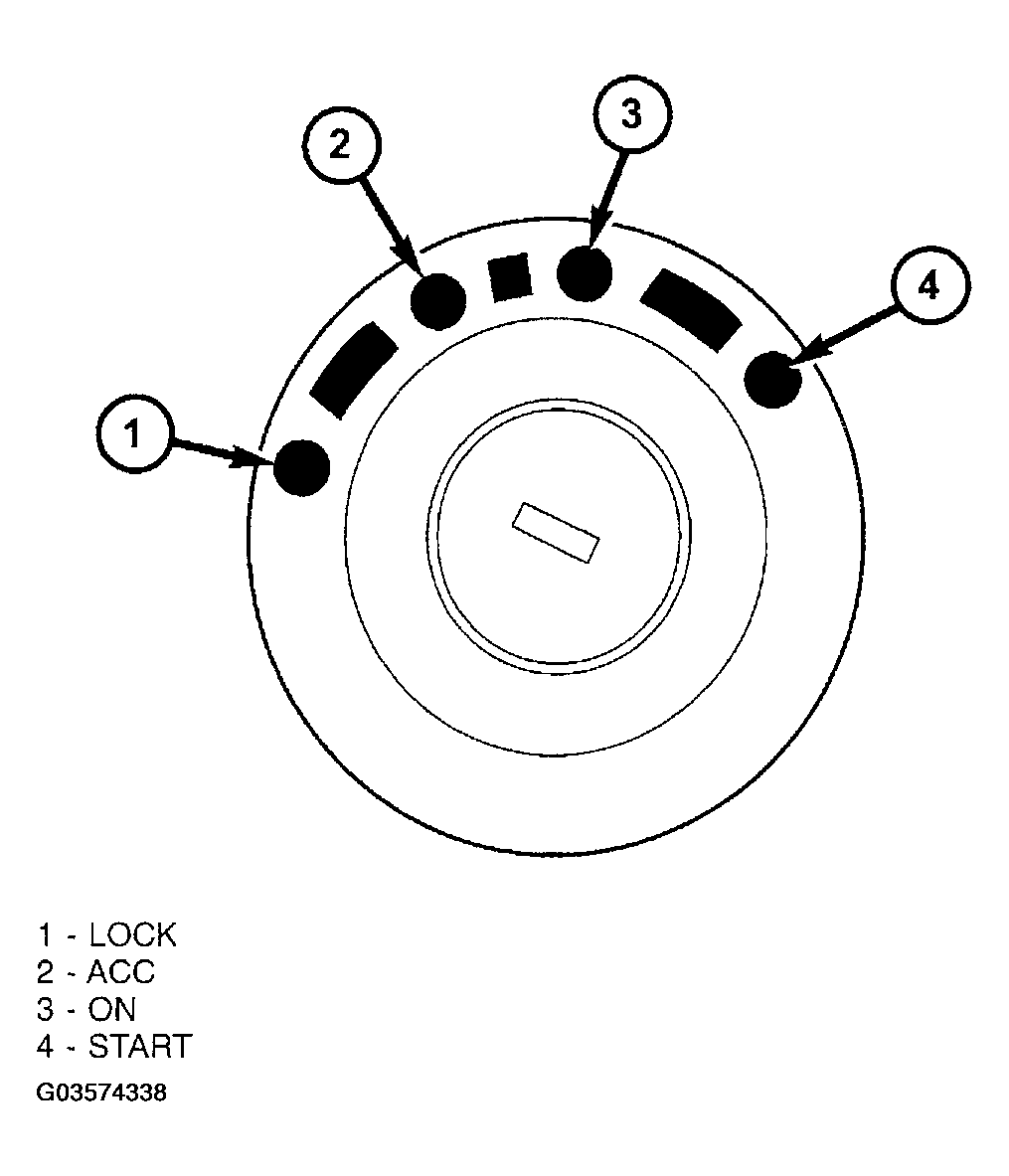

Fig 1: Identifying Ignition Key/Switch Positions
Courtesy of DAIMLERCHRYSLER CORP.
Install shift interlock cable to ignition cylinder (Fig 2). Secure cable to instrument panel at retainer.

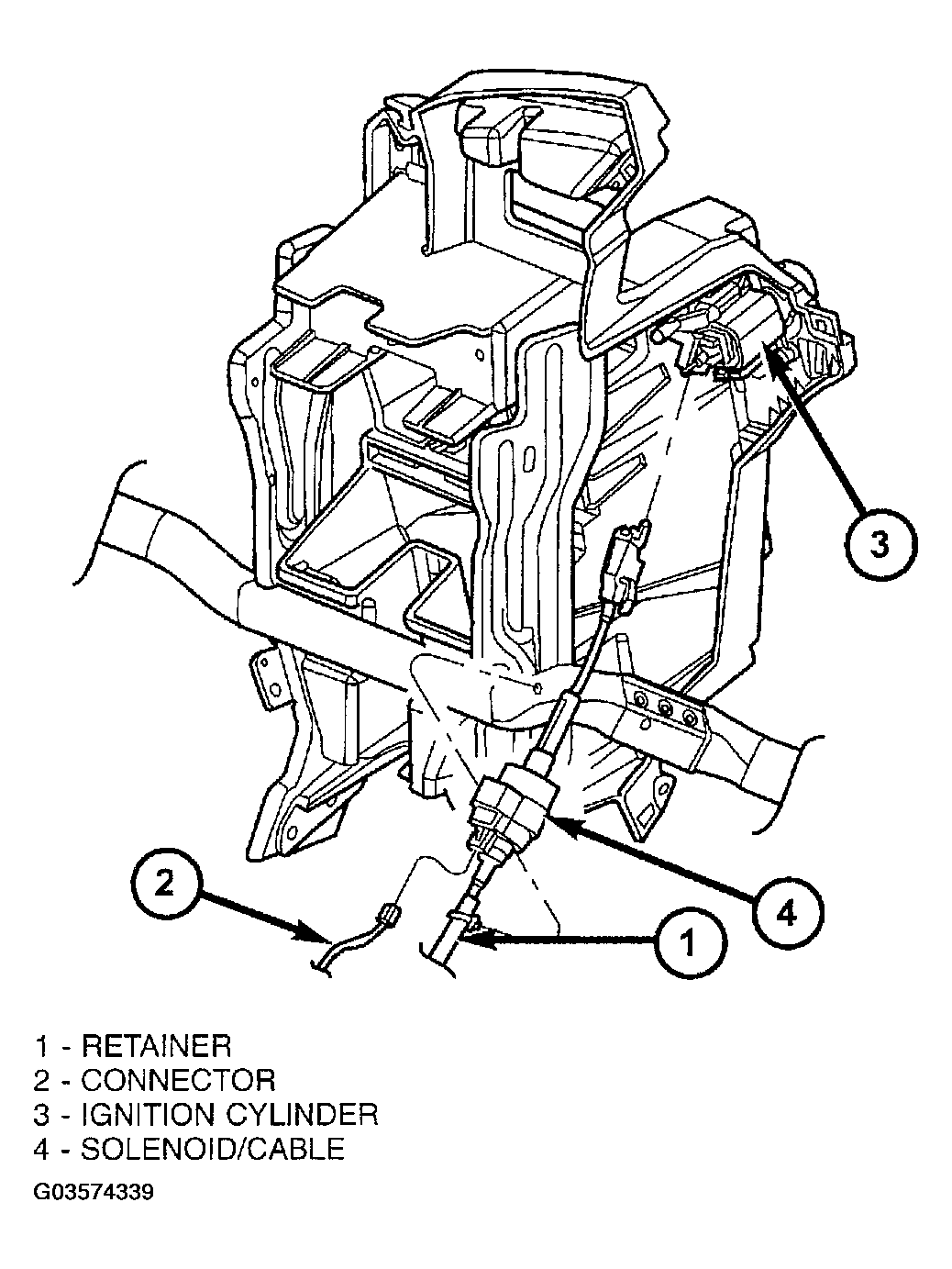

Fig 2: Installing BTSI Cable At Ignition Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
Connect shift interlock cable connector (Fig 2).
Route shift interlock cable towards shift mechanism.
Connect interlock cable core to shift mechanism cam, and then secure cable housing to shift mechanism (Fig 3).

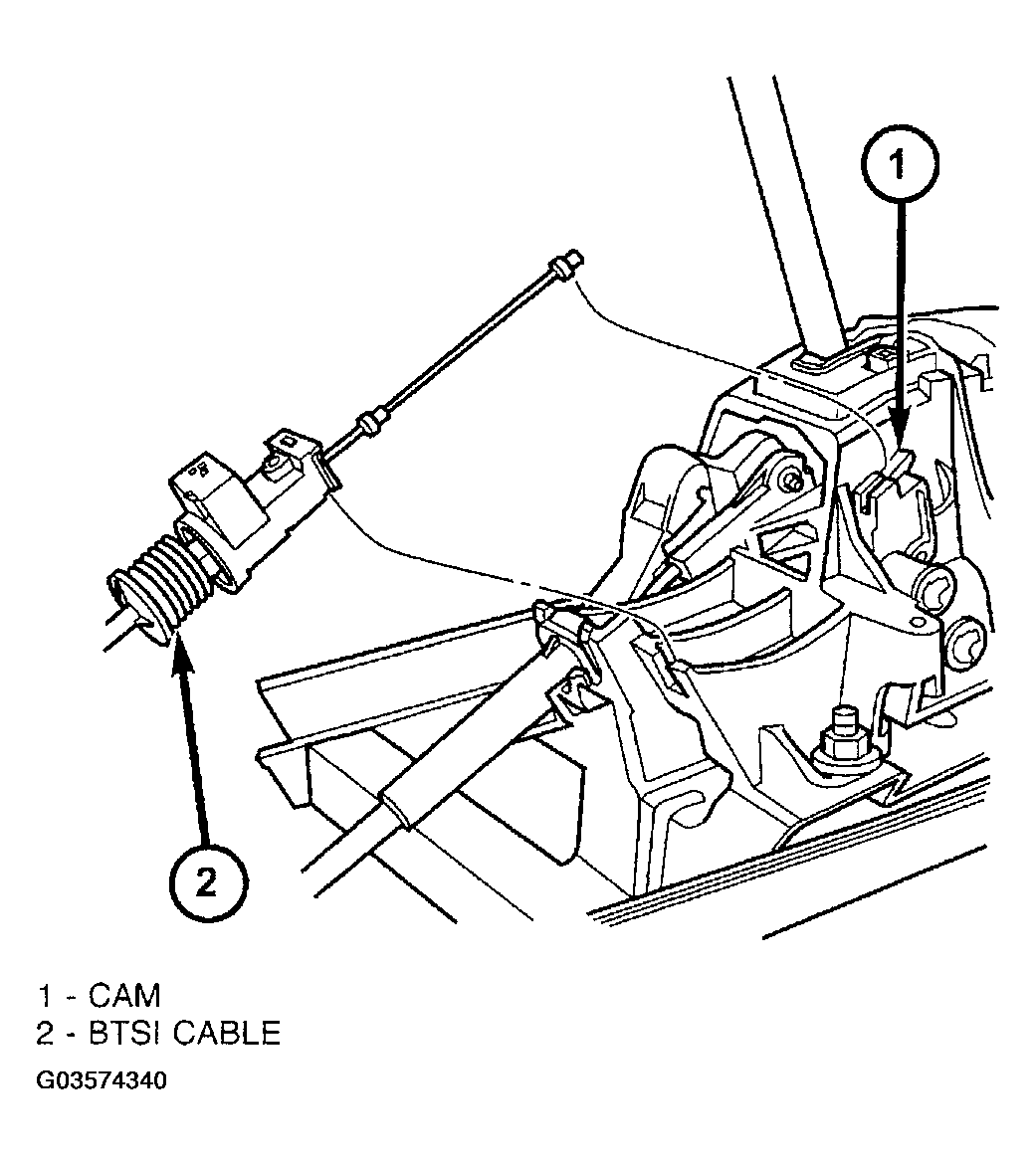

Fig 3: Installing BTSI Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
Adjust interlock cable. (Refer to ADJUSTMENTS )
Install center console assembly (Fig 4).

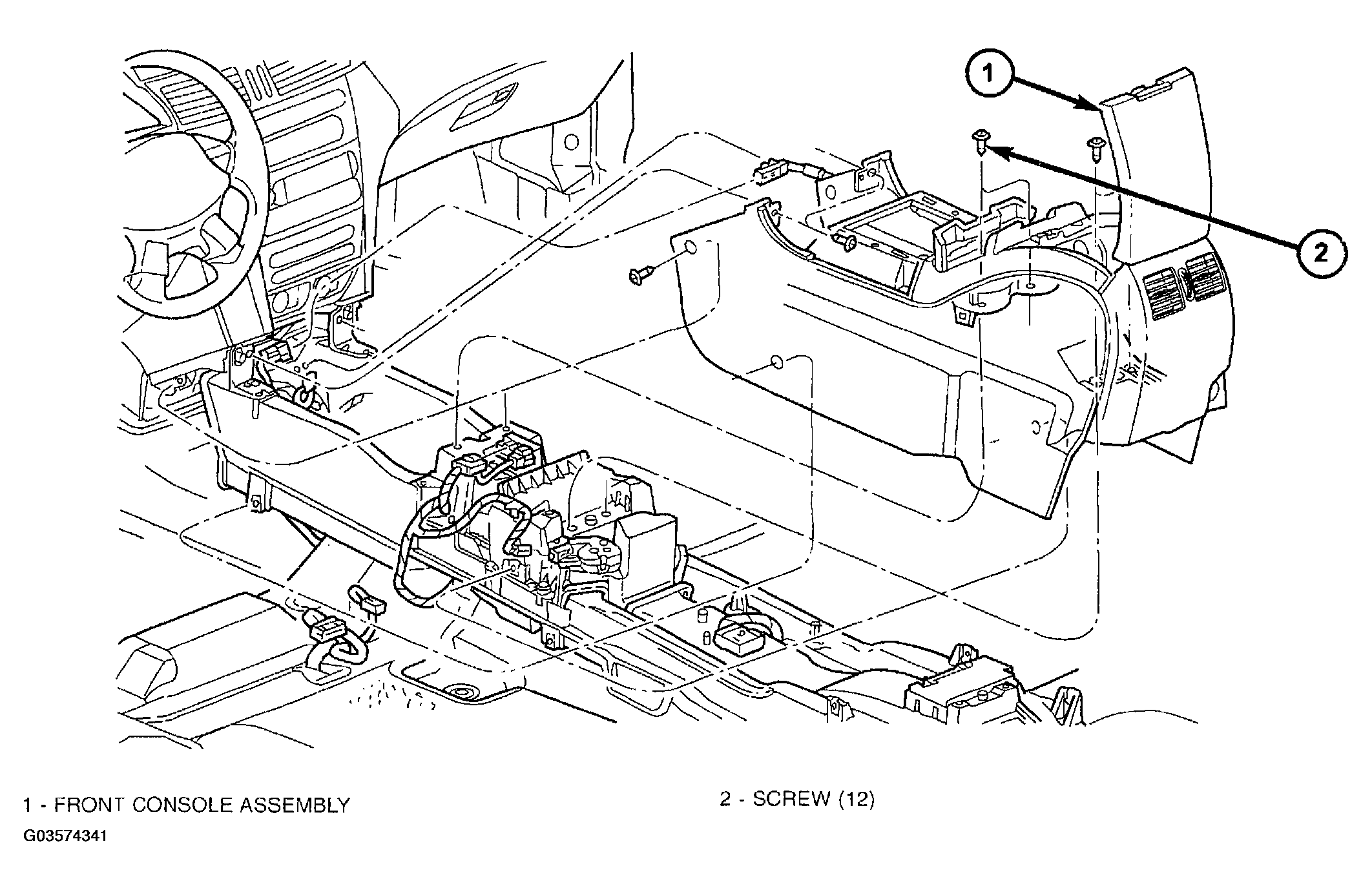

Fig 4: Removing Front Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
Install PRNDL surround bezel (Fig 5).

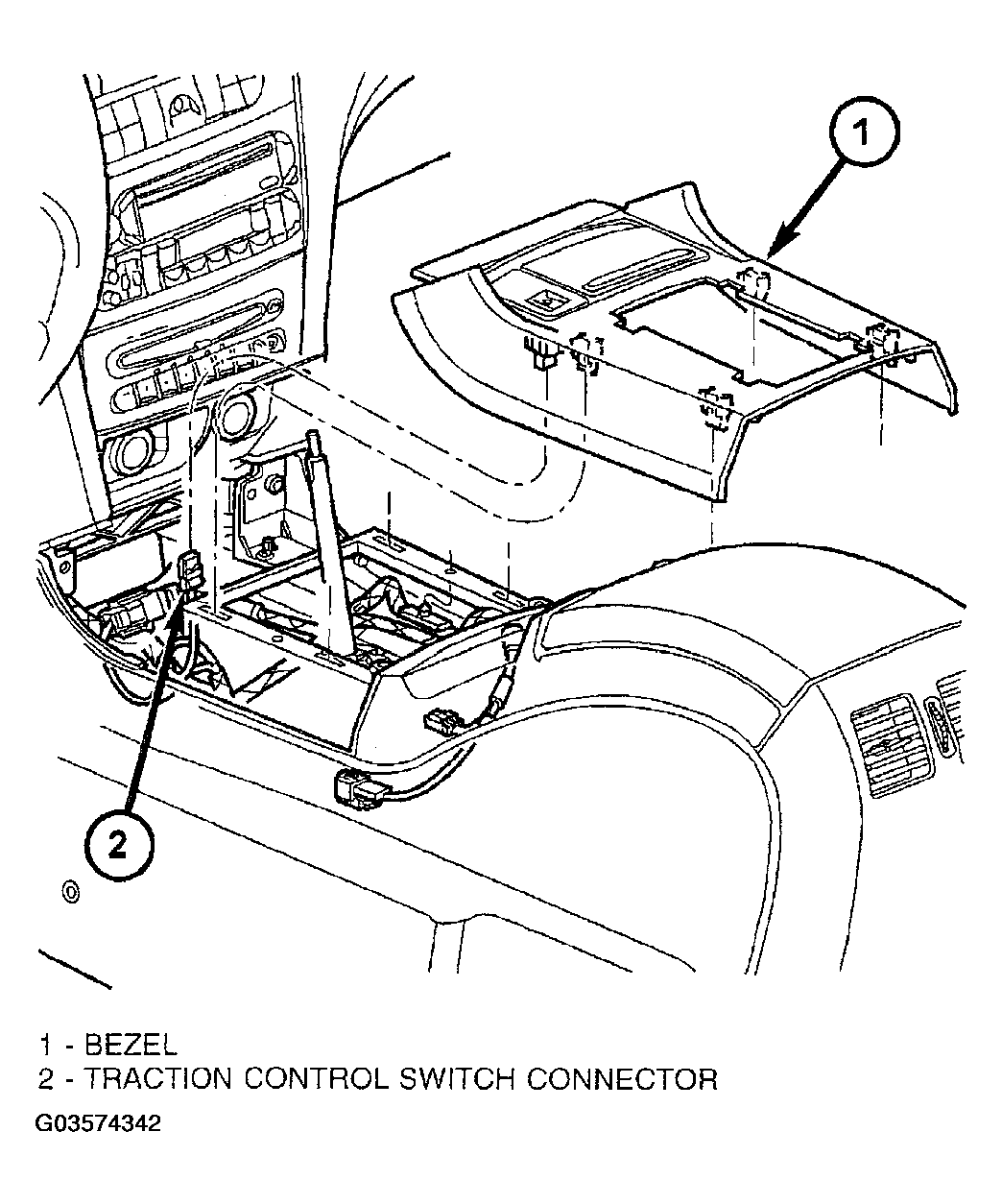

Fig 5: PRNDL Surround Bezel Removal/ Installation
Courtesy of DAIMLERCHRYSLER CORP.
Install gearshift bezel (Fig 6).

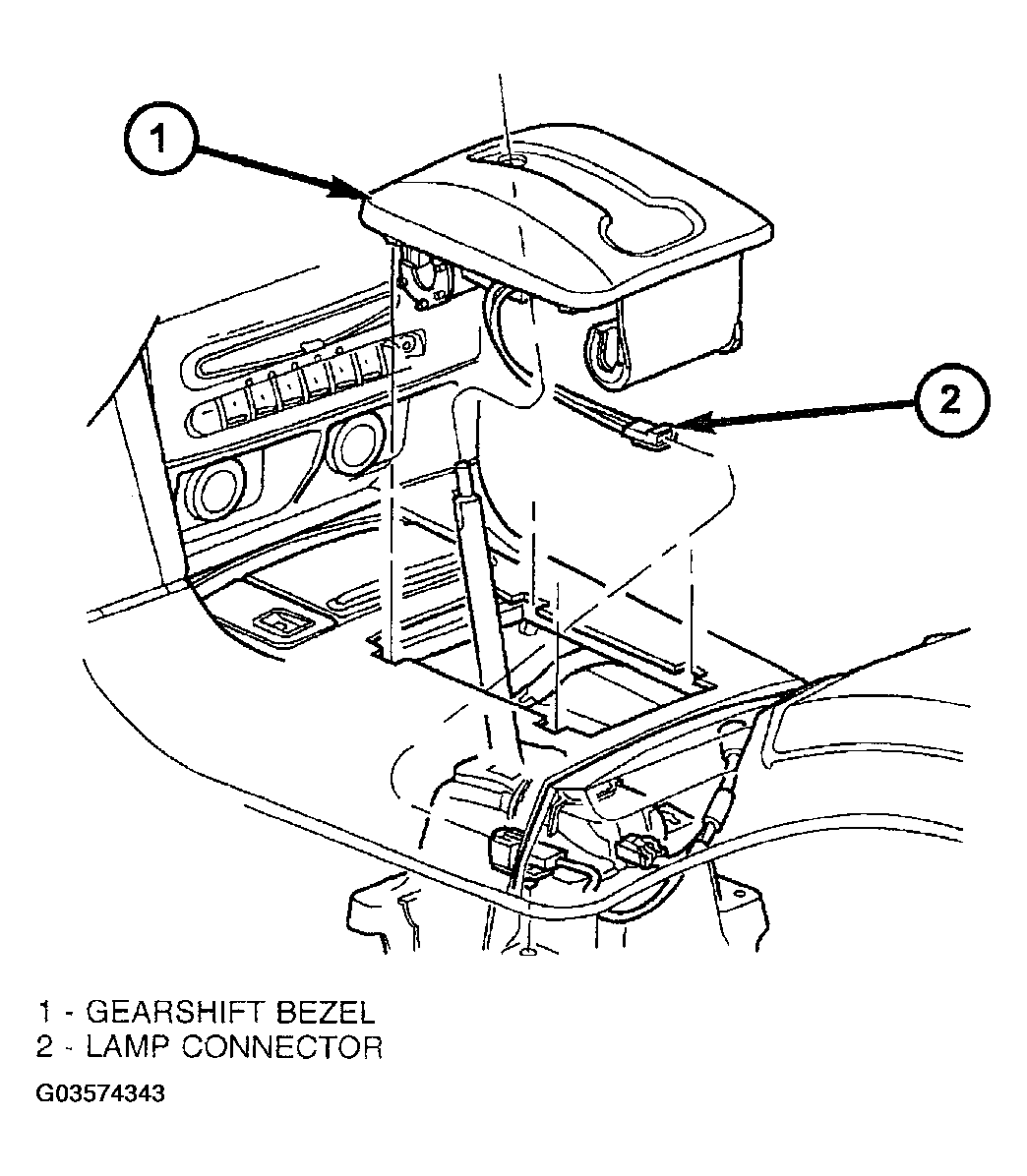

Fig 6: Installing Gearshift Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Install gearshift knob (Fig 7). Torque set-screw to 2 N.m (20 in. lbs.).

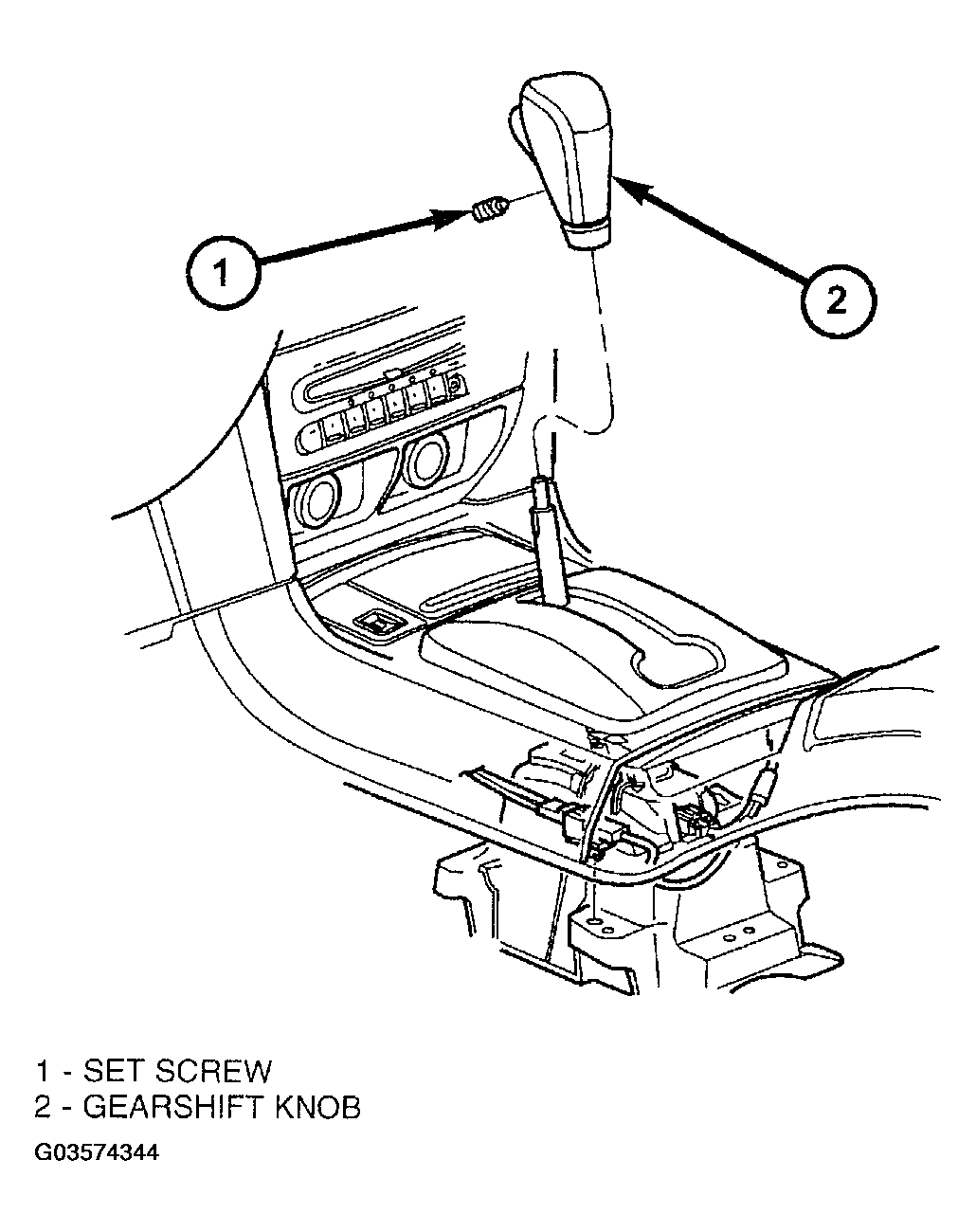

Fig 7: Installing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.
