Speed Sensor - Input: Installation

Verify o-ring is installed into position (Fig 1).

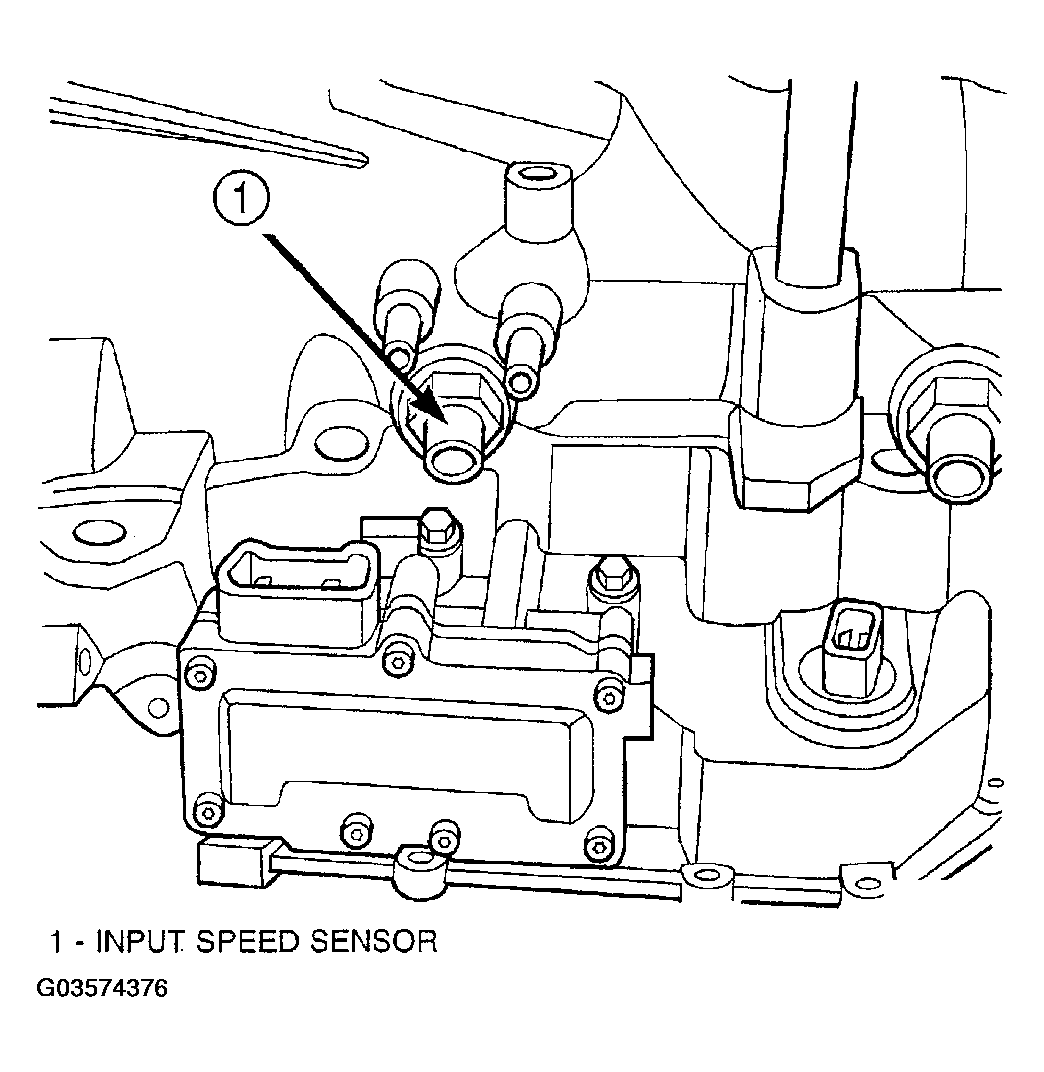

Install and tighten input speed sensor to 27 N.m (20 ft. lbs.) (Figure).

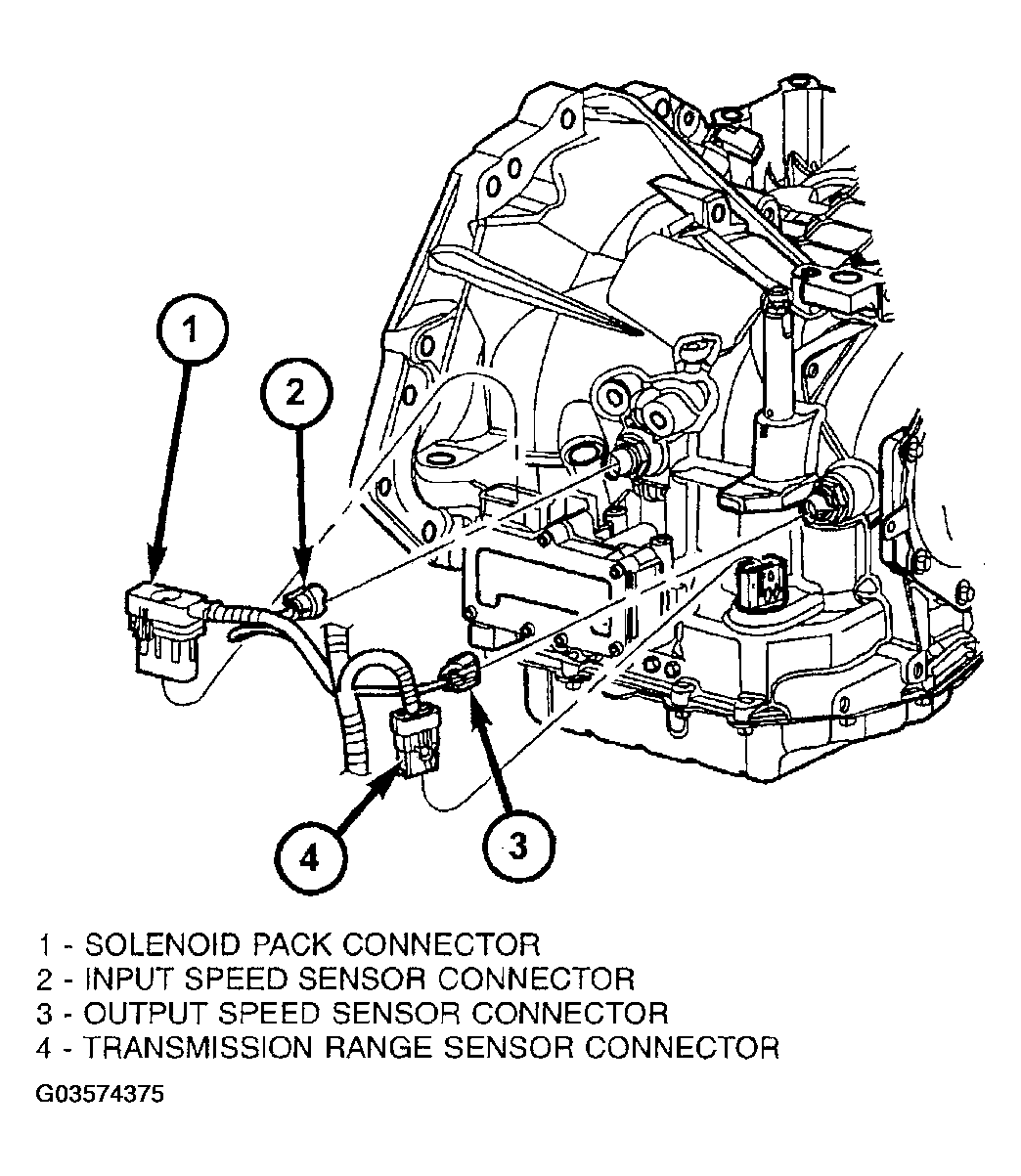

Connect speed sensor connector (Figure).
Connect battery negative cable.

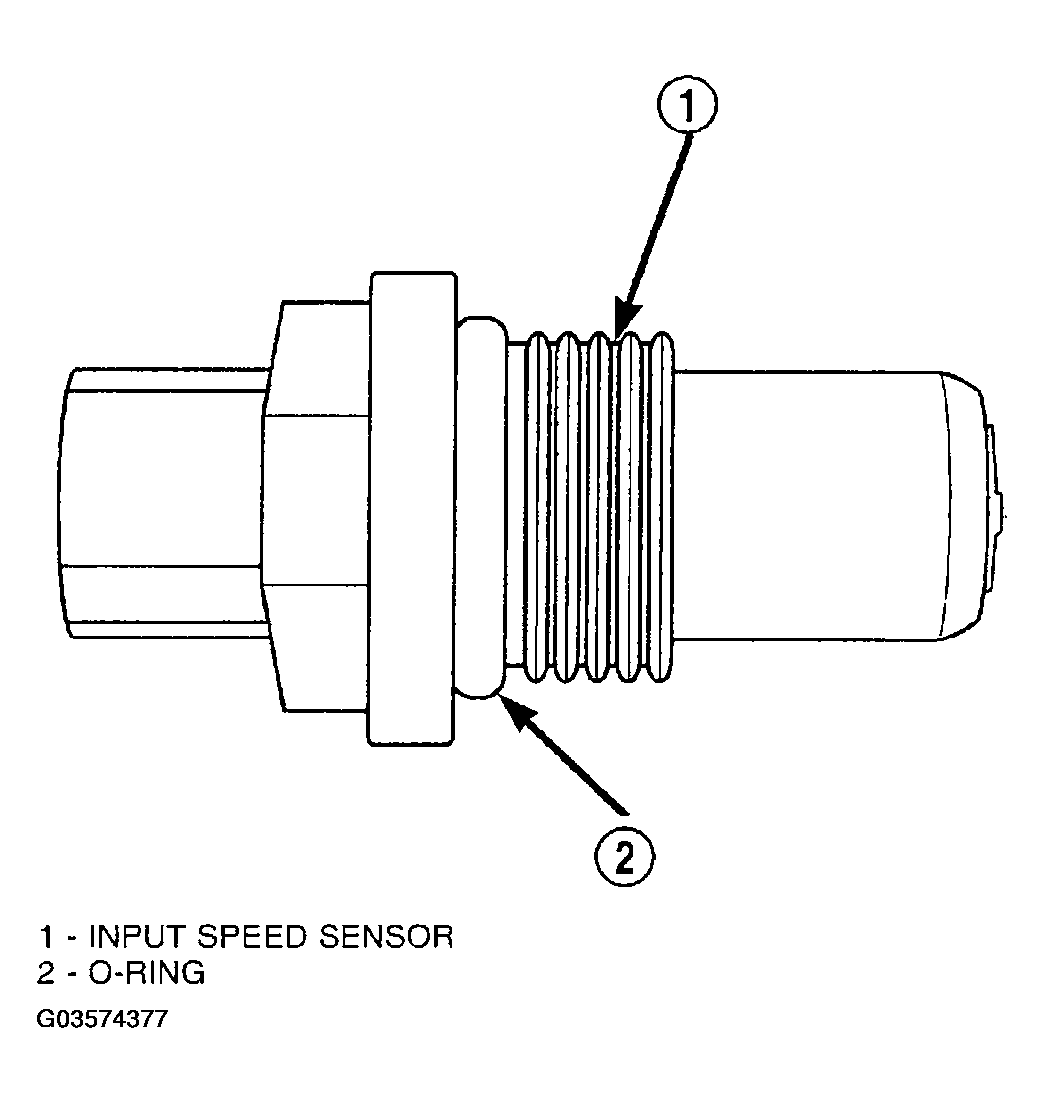

Fig 1: Identifying O-Ring Location
Courtesy of DAIMLERCHRYSLER CORP.
