Speed Sensor - Output: Installation

  1. Verify o-ring is installed into position (Figure).
  2. Install and tighten input speed sensor to 27 N.m (20 ft. lbs.).

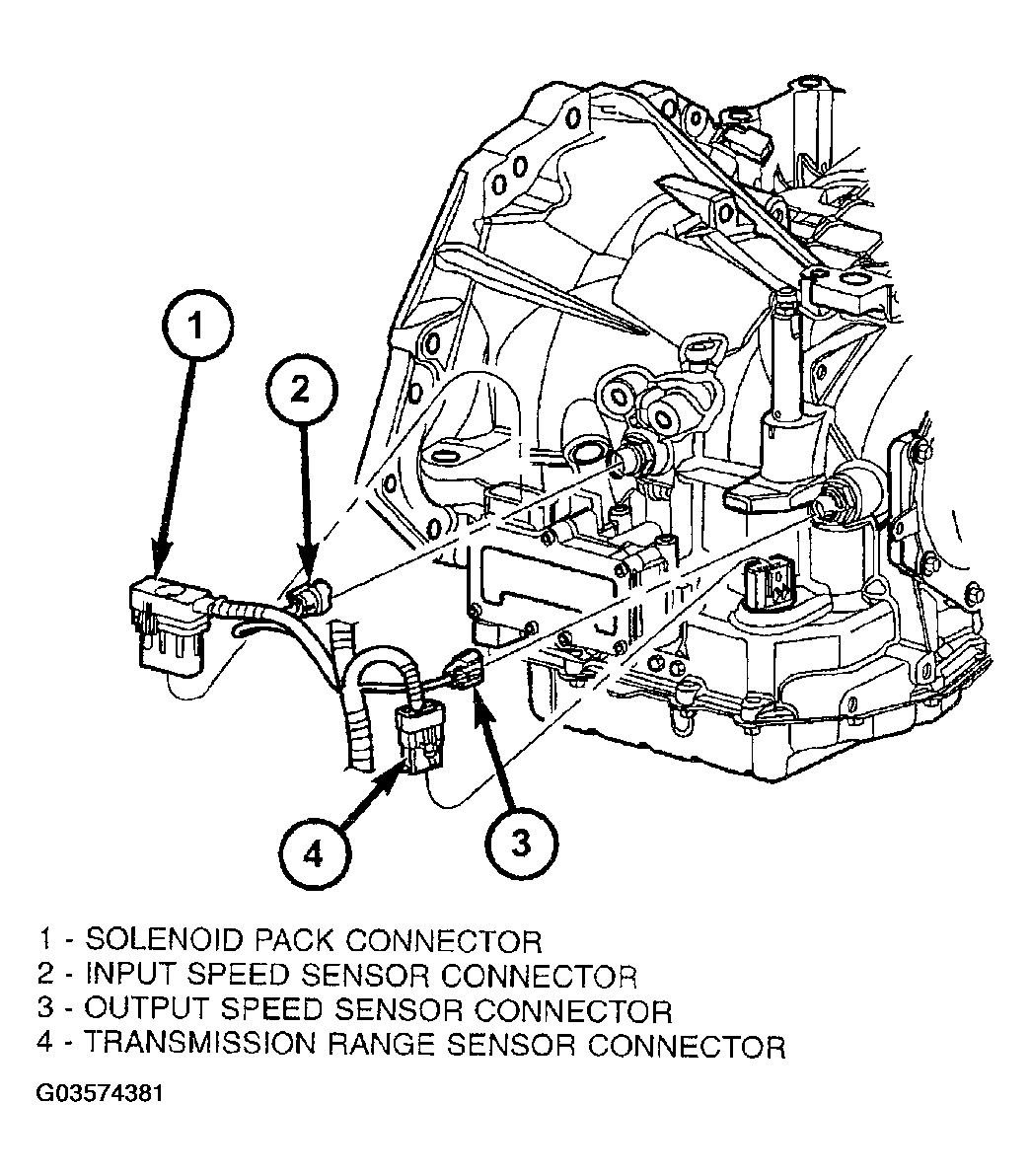

  3. Connect speed sensor connector (Figure).
  4. Connect battery negative cable.
