U0121-Lost Communication With Anti-Lock Brake Module: Notes

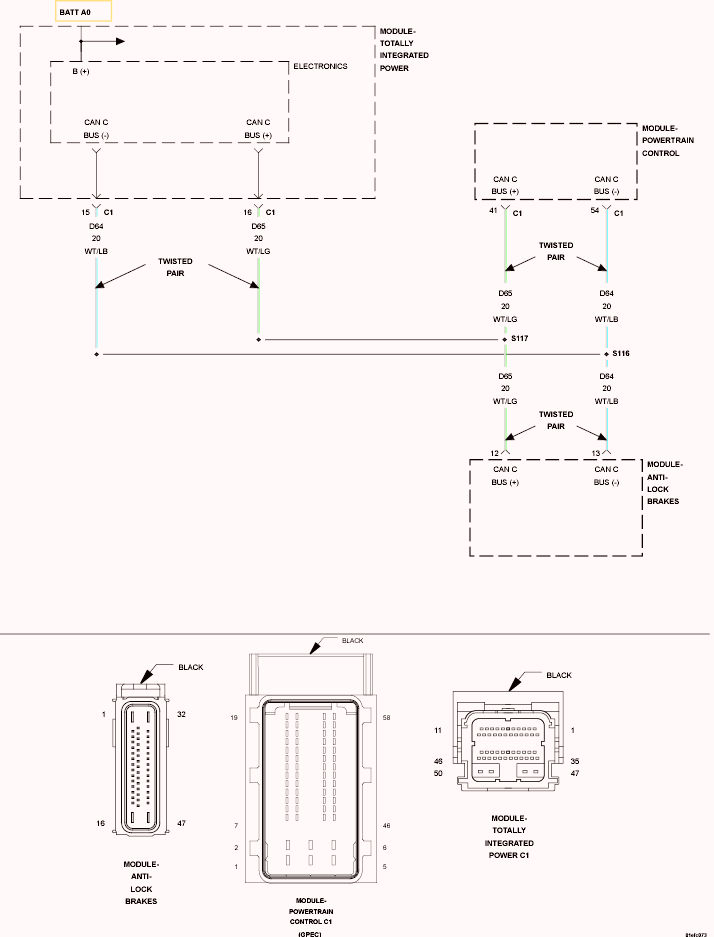

Fig 1: CAN C Bus Circuit
GC0129865Courtesy of CHRYSLER LLC
