P0620-Generator Field Control Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

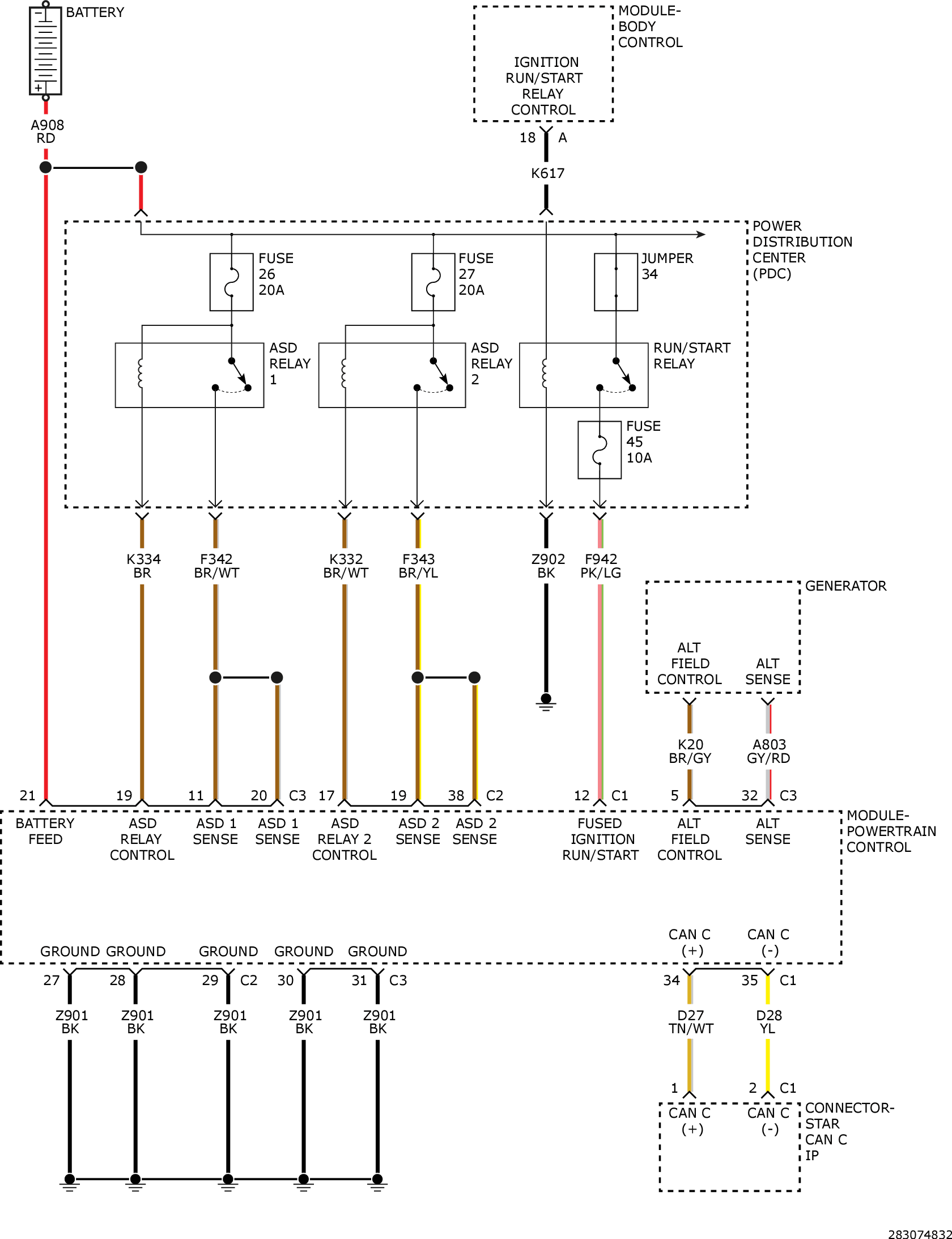

Fig 1: Powertrain Control Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
