Disassembly & Reassembly

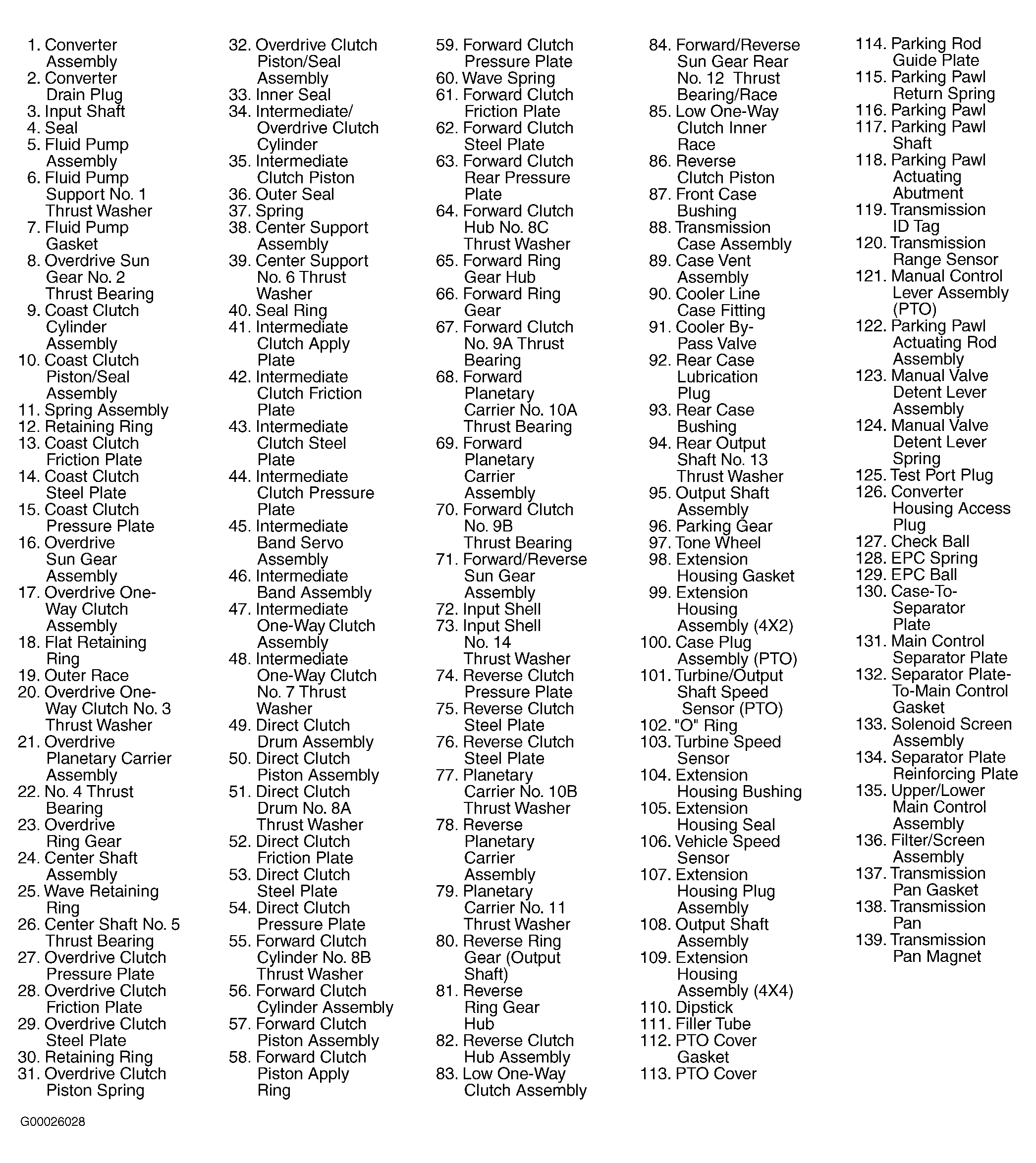

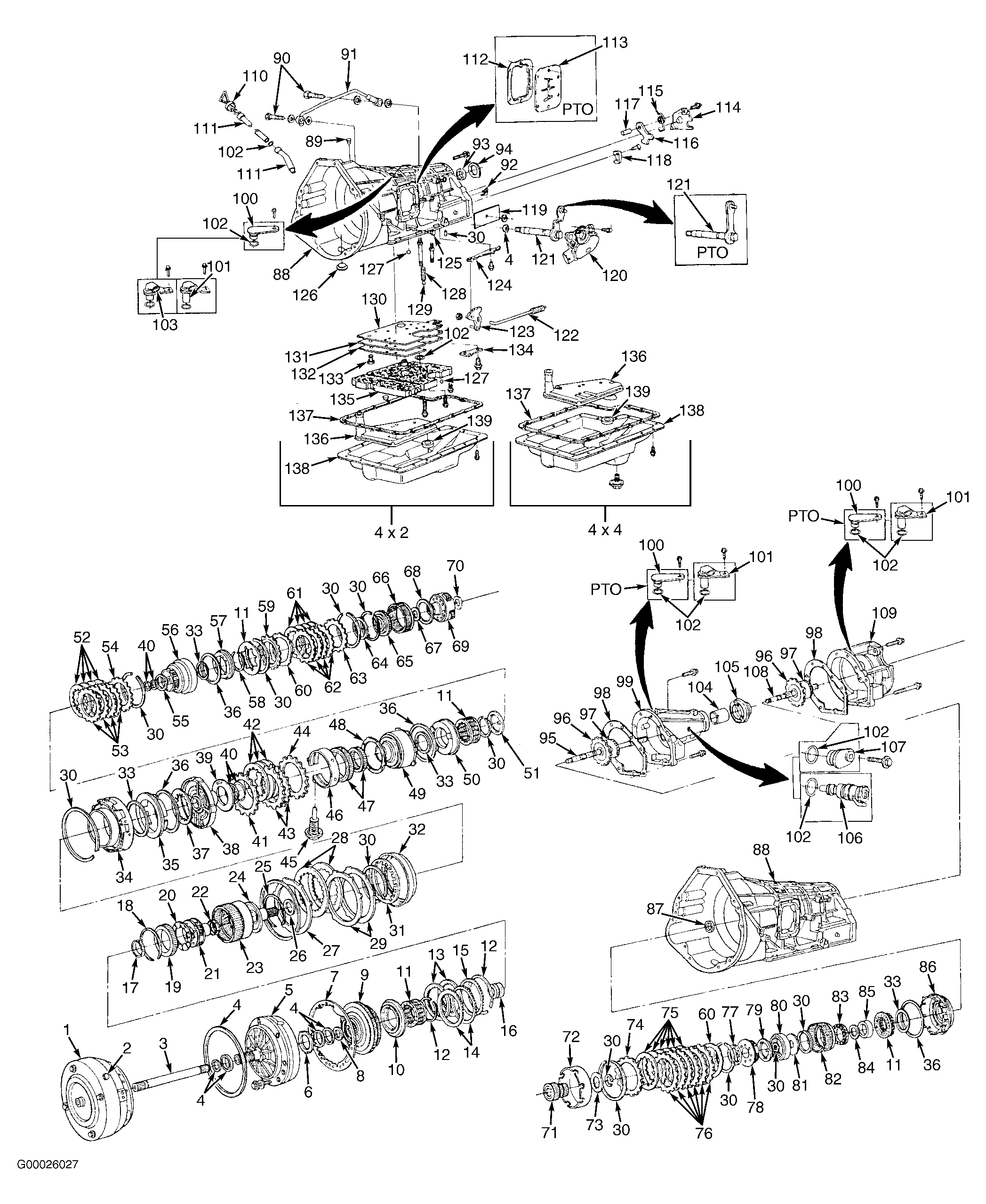

Remove and discard forward/reverse sun gear retaining ring. Remove input shell thrust washer. Remove forward/reverse sun gear from input shell. See Figure and Figure . To reassemble, reverse disassembly procedure. Ensure lube hole in sun gear is between standoff pads on input shell.
