Module - LH: Installation

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Snap the control module hinge onto the actuator assembly.
Install the bolt.

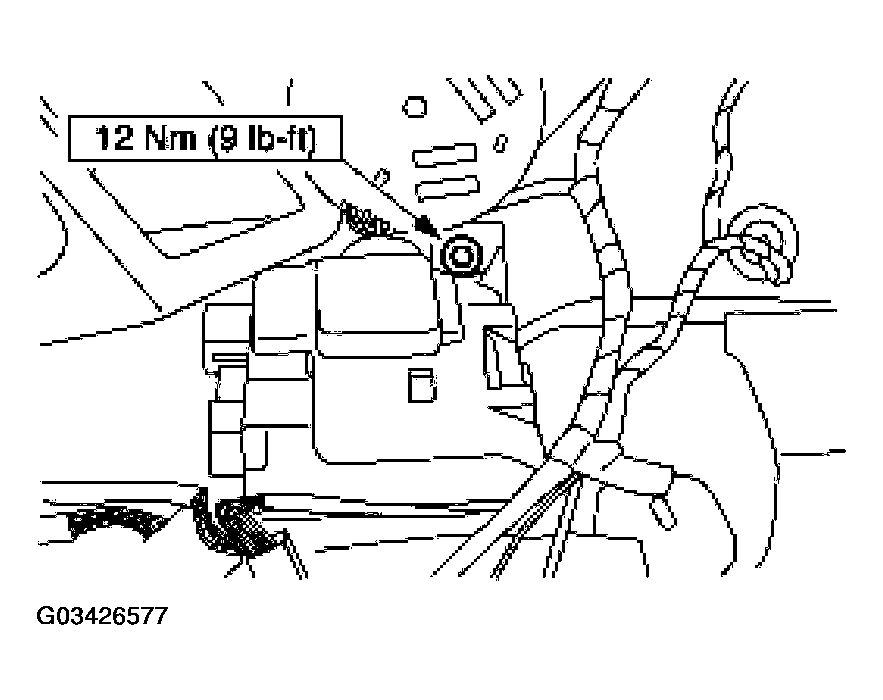

Fig 1: Installing Bolt
Courtesy of FORD MOTOR CO.
Connect the connectors.

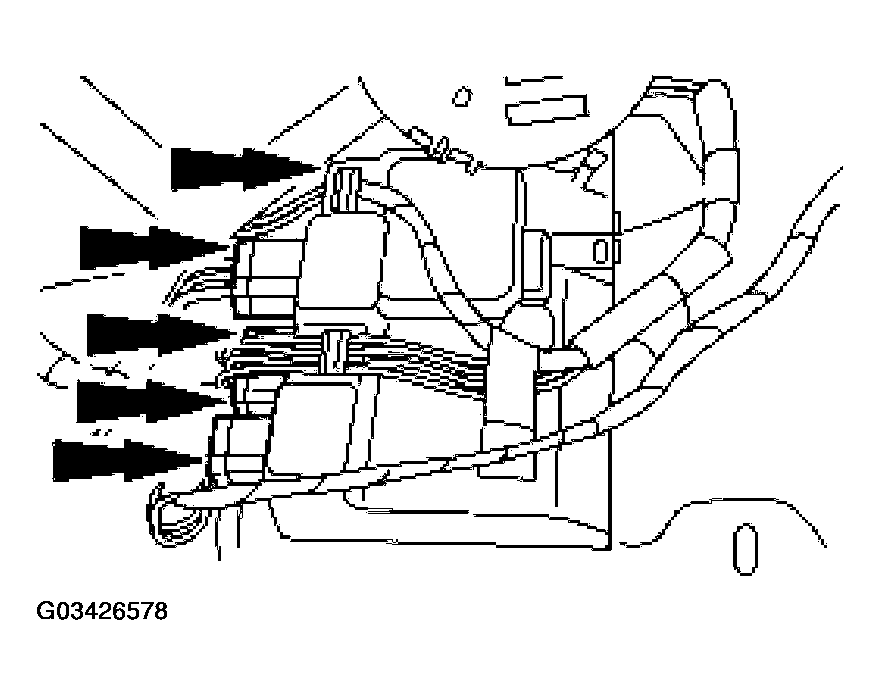

Fig 2: Connecting Connectors
Courtesy of FORD MOTOR CO.
Install the upper and lower A/C ducts. Refer to AUXILIARY CLIMATE CONTROL .
Install the left lower quarter trim panel. Refer to TRIM PANEL -- QUARTER .
Install the left upper quarter trim panel. Refer to TRIM PANEL -- QUARTER .
Install CJB fuse 6 (15A).

NOTE: Make sure that the power sliding doors are fully closed and latched.

NOTE: Make sure the power sliding doors are unlocked.

Initialize both of the power sliding doors.
- Press the overhead console switch to open the left power sliding door to the full open position. Press the same switch to close the left power sliding door to the full close position.
- Press the overhead console switch to open the right power sliding door to the full open position. Press the same switch to close the right power sliding door to the full close position.
