Module - LH: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove CJB fuse 6 (15A).
  2. Remove the left upper quarter trim panel. Refer to TRIM PANEL -- QUARTER .
  3. Remove the left lower quarter trim panel. Refer to TRIM PANEL -- QUARTER .
  4. Remove the upper and lower A/C ducts. Refer to AUXILIARY CLIMATE CONTROL .
  5. Disconnect the connectors.

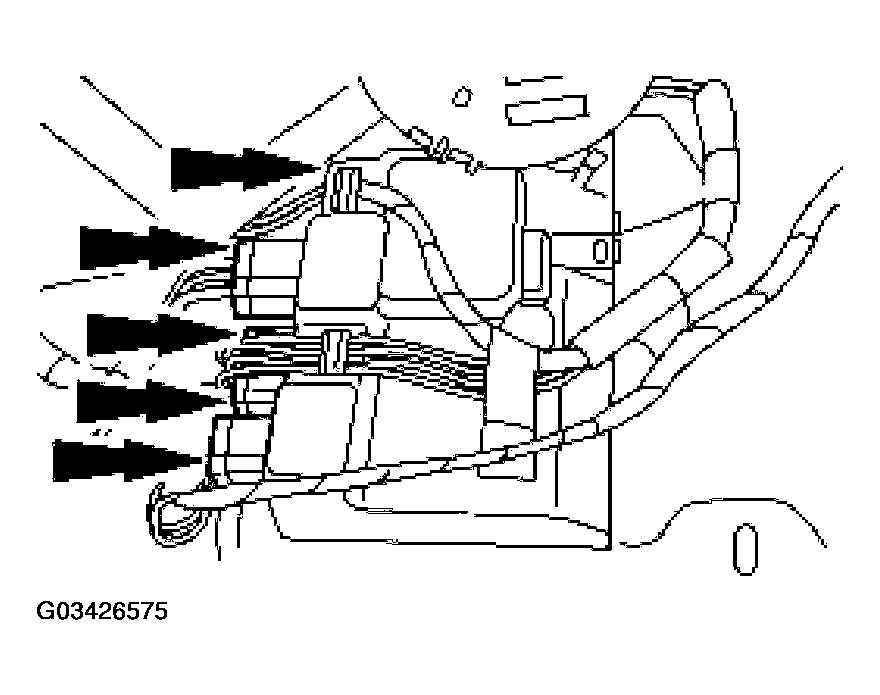

    Fig 1: Disconnecting Connectors
    G03426575Courtesy of FORD MOTOR CO.
  6. Remove the bolt.

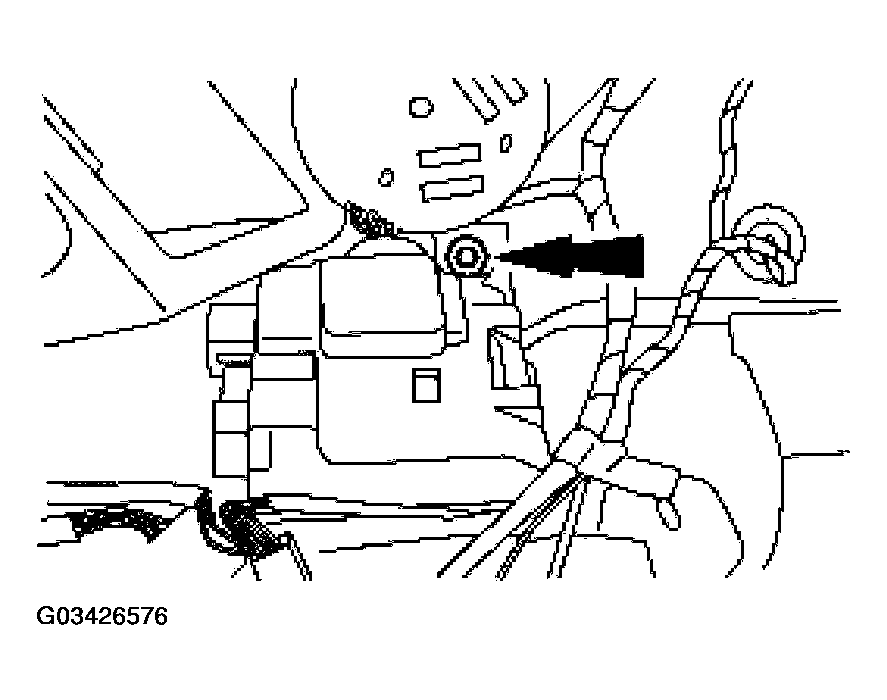

    Fig 2: Removing Bolt
    G03426576Courtesy of FORD MOTOR CO.
  7. Unsnap the control module hinge from the actuator assembly.
