Oil Pan: Removal

  1. Raise the vehicle. For additional information, refer to JACKING & HOISTING .
  2. Drain the engine oil.
  3. Remove the catalytic converter. For additional information, refer to REMOVAL .
    4. NOTE: Remove the bolts evenly.

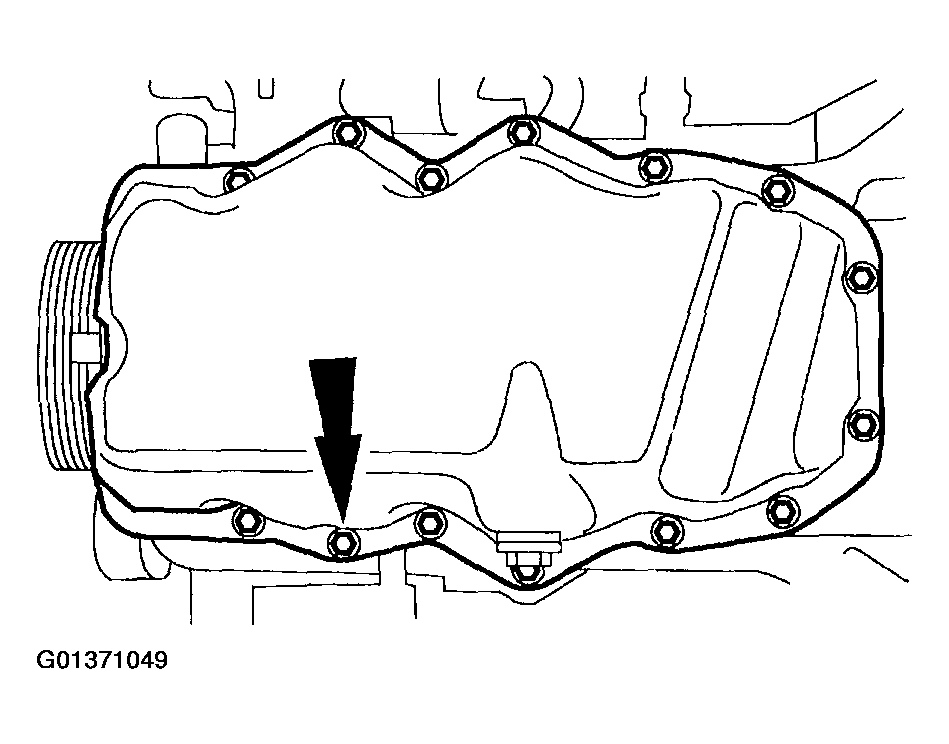

    Fig 1: Removing Bolts And Oil Pan
    G01371049Courtesy of FORD MOTOR CO.
  4. Remove the 17 bolts and the oil pan (6675).
