Battery Junction Box
NOTE:
Battery junction box may also be referred to as power distribution box.
NOTE:

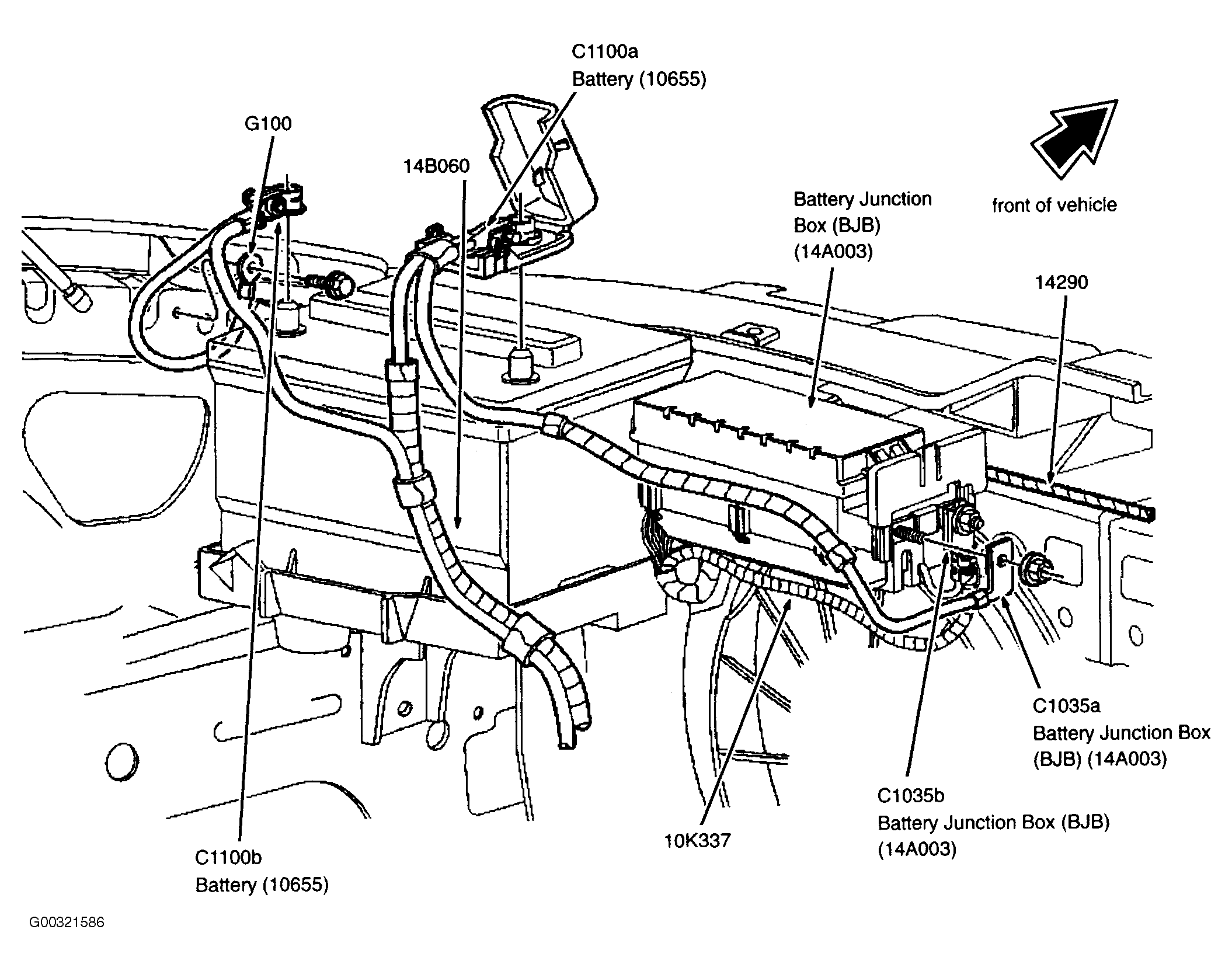

Battery junction box is located driver's side of engine compartment. See Fig 1.
BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1058 | Low speed fan control relay |
| C1051 | Fuel pump relay |
| C1056 | High speed fan control relay |
| C1008 | A/C clutch relay |
| C1016 | PCM power relay |
| C1002 | Wiper run/park Relay |
| C1001 | Wiper high/low Relay |
| C1017 | Starter Relay (11450) |

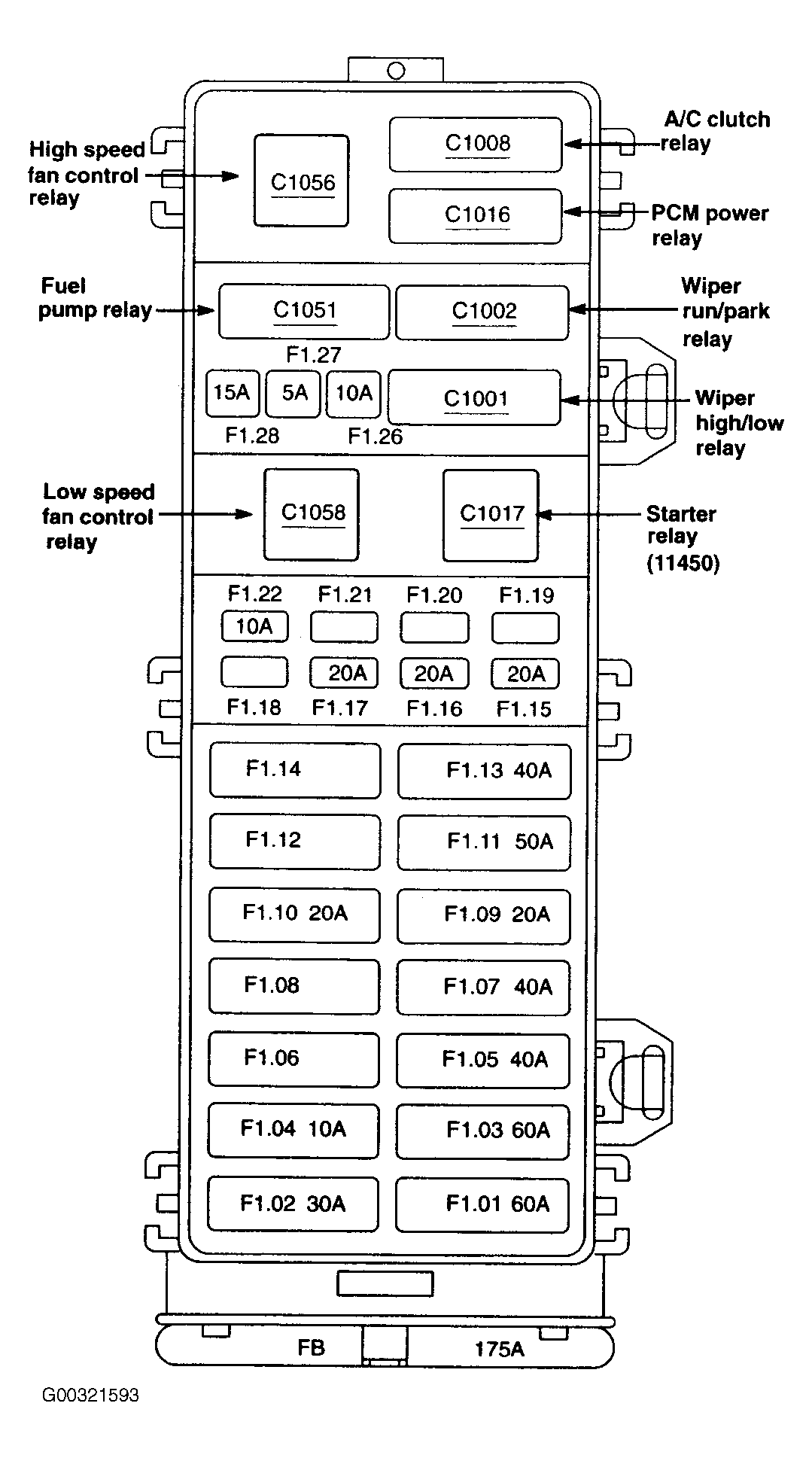

BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| FB | 175 | Battery Junction Box (BJB) (14A003), Generator (10300) |
| F1.01 | 60 | Smart Junction Box (SJB) (14B476) |
| F1.02 | 30 | PCM power relay |
| F1.03 | 60 | Smart Junction Box (SJB) (14B476) |
| F1.04 | 10 | Engine cooling fan motor 1 (8C607) |
| F1.05 | 40 | Engine cooling fan motor |
| F1.06 | - | not used |
| F1.07 | 40 | Starter relay (11450), Ignition switch (11572) |
| F1.08 | - | not used |
| F1.09 | 20 | Engine cooling fan brake relay |
| F1.10 | 20 | Engine cooling fan motor 2 (8C607) |
| F1.11 | 50 | Rear window defrost relay 2 |
| F1.12 | - | not used |
| F1.13 | 40 | ABS control module (2C346) |
| F1.14 | - | not used |
| F1.15 | 20 | ABS control module (2C346) |
| F1.16 | 20 | Fuel pump relay |
| F1.17 | 20 | Rear Control Unit (RCU) (18C851), CD changer (18C630) |
| F1.18 | - | not used |
| F1.19 | - | not used |
| F1.20 | - | not used |
| F1.21 | - | not used |
| F1.22 | 10 | Powertrain Control Module (PCM) (12A650), A/C clutch relay, Idle Air Control (IAC) valve (9F715) |
| F1.26 | 10 | Generator (10300) |
| F1.27 | 5 | Rear Control Unit (RCU) (18C851), Power antenna module (19A018) |
| F1.28 | 15 | AX4S/4F50N Transmission (7000), A/C clutch relay, Evaporative emission (EVAP) canister vent valve (9F945), Oxygen sensor (O2S), Mass Air Flow (MAF) sensor (12B579) |
