Central Junction Box
NOTE:

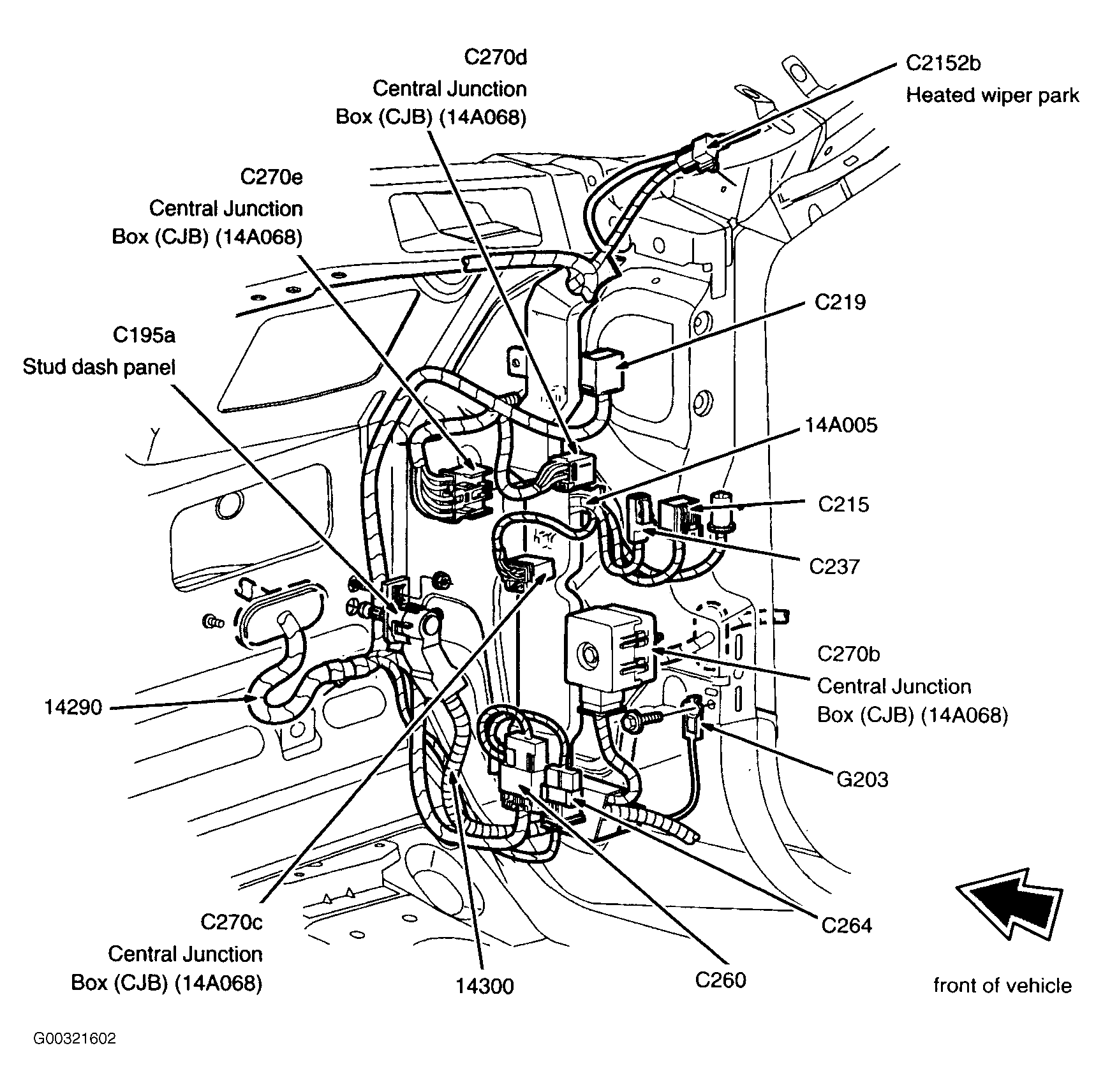

Central junction box is located under passenger's side of dash panel. See Fig 1.
CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected | ||
|---|---|---|---|---|
| F2.01 | 5 | Digital Transmission Range (DTR) sensor (7F293) | ||
| F2.02 | 5 | Audio unit (18808) | ||
| F2.03 | 5 | ABS test connector | ||
| F2.04 | 5 | PCM power diode, PCM power relay, COPS & Heated Oxygen Sensor (HO2S) relay, Instrument cluster, Inertia Fuel Shutoff (IFS) switch (9D362), Transmission shift selector | ||
| F2.05 | 5 | Brake pressure switch (9F924), Traction control switch, Transmission shift selector | ||
| F2.06 | 10 | Data Link Connector (DLC) (14489) | ||
| F2.07 | 5 | Remote keyless entry module (15K602), Powertrain Control Module (PCM) (12A650), Sunload sensor (19E663) | ||
| F2.08 | 5 | Park/turn lamp, right front (13411), Side lamp, right front (13411) | ||
| F2.09 | 15 | Headlamp, right (13008) | ||
| F2.10 | 5 | Park/turn lamp, left front (13411), Side lamp, left front (13411) | ||
| F2.11 | 15 | Headlamp, left (13008) | ||
| F2.12 | 10 | Passenger Air bag Deactivation (PAD) switch | ||
| F2.13 | 5 | Instrument cluster | ||
| F2.14 | 10 | Restraints control module (14B321) | ||
| F2.15 | 5 | not used | ||
| F2.16 | 5 | Heated seat module, passenger side front, Heated seat module, driver side front (14C724) | ||
| F2.17 | 5 | Instrument cluster | ||
| F2.18 | 20 | Center image amplifier, Audio unit (18808) | ||
| F2.19 | 20,(1)15 | Instrument cluster | ||
| F2.20 | 10 | Electronic Automatic Temperature Control (EATC) module (19980), Instrument cluster, Front Electronic Module (FEM) (13C788) | ||
| F2.21 | 10 | not used | ||
| F2.22 | 10 | not used | ||
| F2.23 | 10 | not used | ||
| F2.24 | 5 | Passive anti-theft transceiver module (15607) | ||
| F2.25 | 10 | not used | ||
| F2.26 | 3 | Windshield wiper motor (17508) | ||
| F2.27 | 10 | Audio unit (18808), Power antenna module | ||
| F2.28 | 10 | not used | ||
| F2.29 | 5 | Electronic Automatic Temperature Control (EATC) module (19980) | ||
| F2.30 | 5 | Front Electronic Module (FEM) (13C788) | ||
| F2.31 | 10 | Interior/map lamps assembly, front, Glove box lamp (14413), Footwell lamp, right front, Auxiliary Junction Box (AJB), interior, Footwell lamp, left front (13411) | ||
| F2.32 | 20 | Cigar lighter, front (15055) | ||
| F2.33 | 10 | Front Electronic Module (FEM) (13C788) | ||
| F2.34 | 5 | Exterior rear view mirror switch (17B676) | ||
| F2.35 | 5 | Brake pedal position switch (13480) | ||
|
||||
