Exploded View

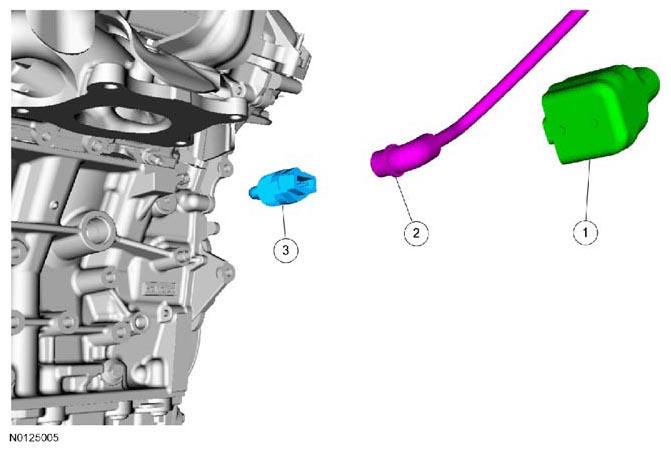

Fig 1: Identifying Block Heater, Eiring Harness And Electrical Connector Components
G07420405Courtesy of FORD MOTOR CO.
BLOCK HEATER PARTS DESCRIPTION CHART

Item Service Part Number Description Torque Material Name Notes
1 - Block heater electrical connector heat shield (Part of 6B018) - - -
2 6B018 Block heater wiring harness - - -
3 6A051 Block heater 40 Nm (30 lb-ft) - -
