Body Control Module (BCM): Installation

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

    NOTE: Carry out Steps 2-13 only if installing a new BCM. Use the previous diagnostic scan tool session or start a diagnostic scan tool session using the PCM part number or tear tag number located on the PCM.
    NOTE: Some replacement BCM may be in transport mode. Follow the steps to deactivate transport mode.

    Deactivate transport mode in the BCM. Refer to: Transport and Factory Mode Deactivation .

  1. 3.

    Using a diagnostic scan tool, complete the PMI process for the BCM following the on-screen instructions.

  1. 4.

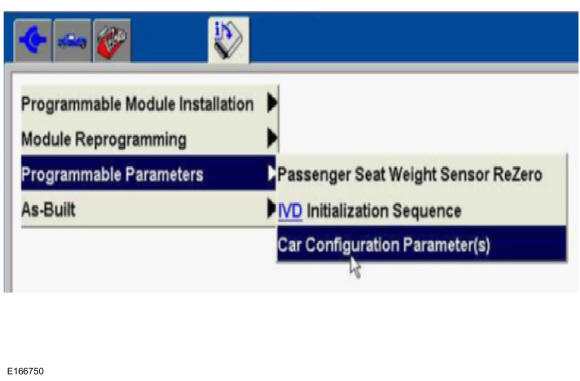

    Using the scan tool, select Tool Box/Module Programming/Programmable Parameters/Car Configuration Parameter(s).
GFD146467Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: If a diagnostic scan tool is connected to the internet, it will automatically obtain As-Built data. If a diagnostic scan tool is not connected to the internet, obtain the As-Built data from Professional Technician Society (PTS) OASIS. Download the As-Built data to the scan tool or other storage device, such as a flash drive, following the on-screen instructions.

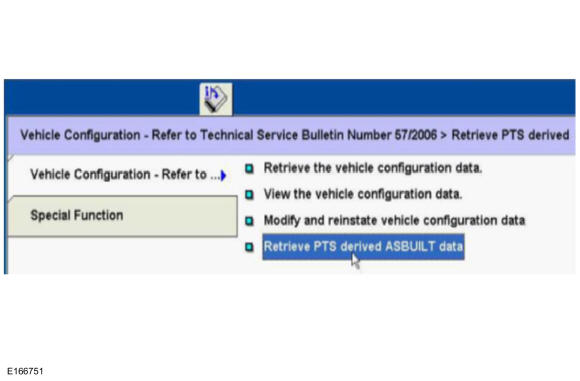

    From the Car Configuration screen select " Retrieve PTS derived ASBUILT data". Follow the on-screen instructions to install the as-built data into the BCM.

GFD146468Courtesy of FORD MOTOR COMPANY

  1. 6.

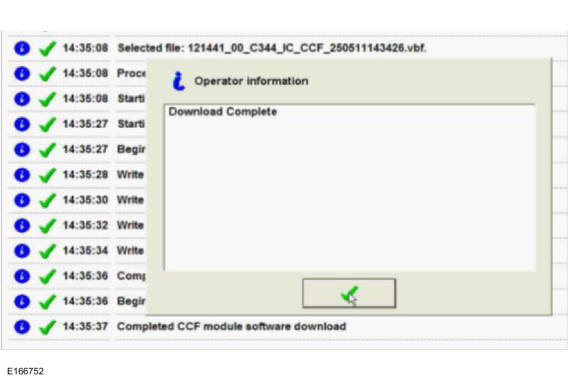

    Do not interrupt the process until it is completed.
GFD146469Courtesy of FORD MOTOR COMPANY

  1. 7.

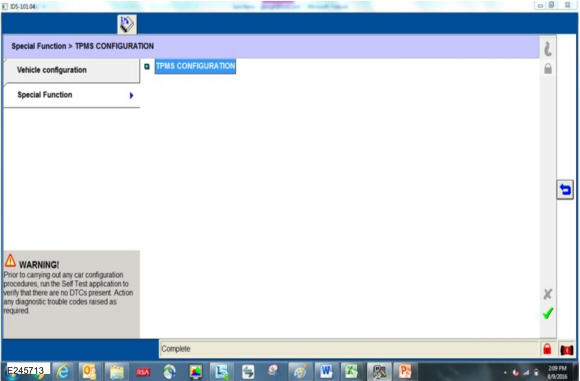

    Select Special Function - TPMS Configuration.
GFD146470Courtesy of FORD MOTOR COMPANY

  1. 8.

    Train the tire pressure sensors. Refer to: Tire Pressure Monitoring System (TPMS) Sensor Location Calibration .

  1. 9.

    NOTE: Parameter reset must be performed on PATS and non- PATS vehicles.

    Carry out the anti-theft system PATS parameter reset. Refer to: Passive Anti-Theft System (PATS) Parameter Reset .

Vehicles equipped with PATS

  1. 10.

    Carry out the key programming procedure. Refer to: Key Programming Using Diagnostic Equipment .

Vehicles not equipped with

  1. 11.

    Carry out RKE transmitter programming. Refer to: Remote Keyless Entry (RKE) Transmitter Programming .

  1. 12.

    NOTE: The Configurable Engine Immobilizer (CEI) Lock Configuration function must be performed on PATS and non- PATS vehicles.

    Carry out the Configurable Engine Immobilizer (CEI) Lock Configuration. On the scan tool, select Body/Service Functions/CEI Lock Configuration.

  1. 13.

    Carry out the BCM self-test (must include an on-demand self-test), clear the Diagnostic Trouble Codes (DTCs) and then repeat the self-test to confirm all Diagnostic Trouble Codes (DTCs) have been cleared.
