Liftgate Alignment

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Check liftgate-to-body dimensions. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.

Adjustment

All alignments

  1. 1.

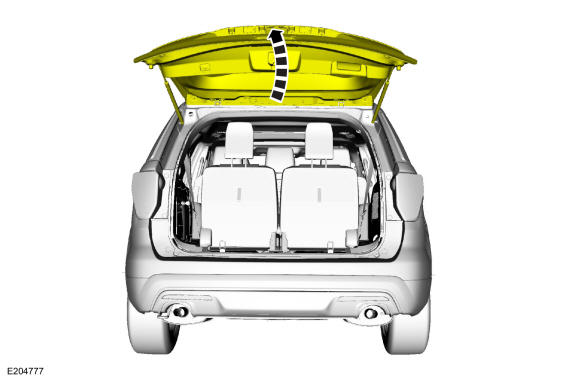

    Open the liftgate.
GFD125288Courtesy of FORD MOTOR COMPANY

  1. 2.

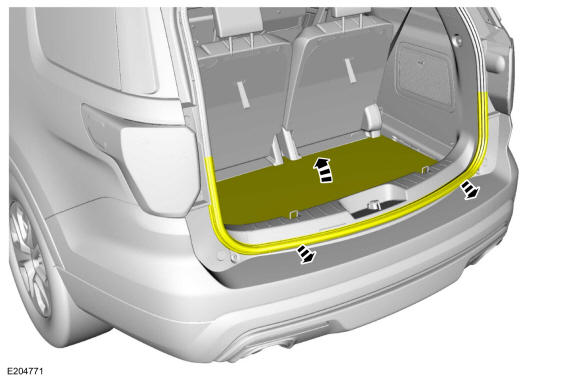

    Position aside the liftgate weatherstrip and the load compartment cover.
GFD125289Courtesy of FORD MOTOR COMPANY

  1. 3.

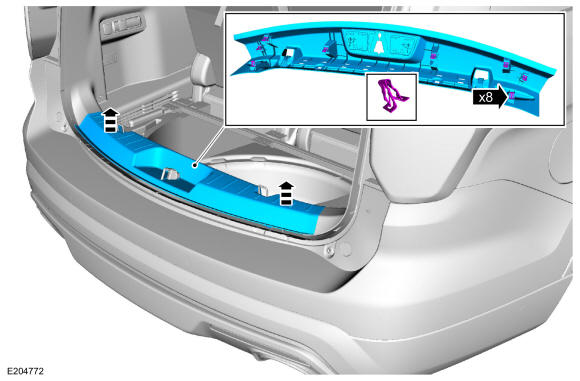

    Release the clips and remove the liftgate opening trim panel.
GFD125290Courtesy of FORD MOTOR COMPANY

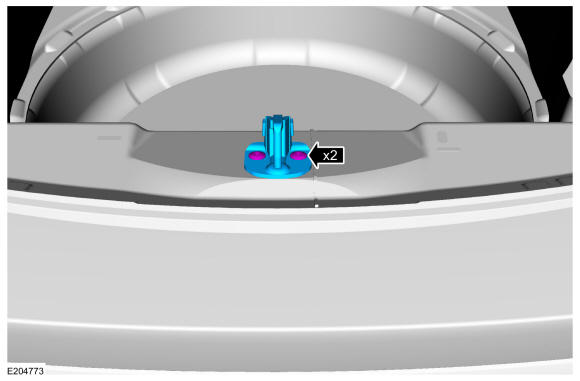

  1. 4.

    Remove the liftgate striker.

    Torque

    : 17 lb.ft (22.5 Nm)

GFD125291Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

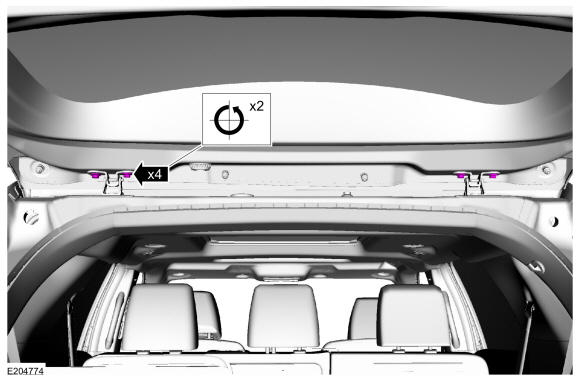

  1. 5.

    Loosen the bolts.

    Loosen: 2 turn(s)

GFD125292Courtesy of FORD MOTOR COMPANY

  1. 6.

    Carefully close the liftgate.
GFD125293Courtesy of FORD MOTOR COMPANY

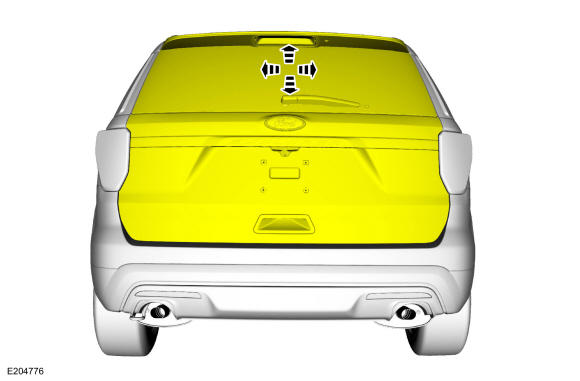

  1. 7.

    Adjust the liftgate to specification. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.
GFD125294Courtesy of FORD MOTOR COMPANY

  1. 8.

    Carefully open the liftgate.
GFD125288Courtesy of FORD MOTOR COMPANY

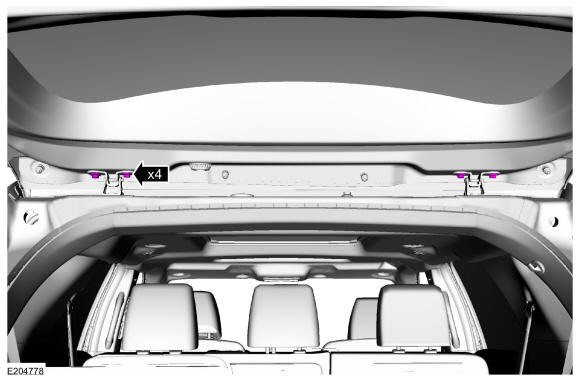

  1. 9.

    Tighten the bolts.

    Torque

    : 22 lb.ft (30 Nm)

GFD125295Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment

  1. 10.

    Remove the D-Pillar trim panel. REFER to: D-Pillar Trim Panel .

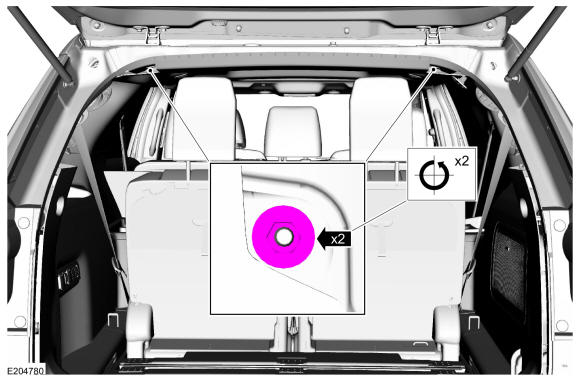

  1. 11.

    Loosen the nuts.

    Loosen: 2 turn(s)

GFD125296Courtesy of FORD MOTOR COMPANY

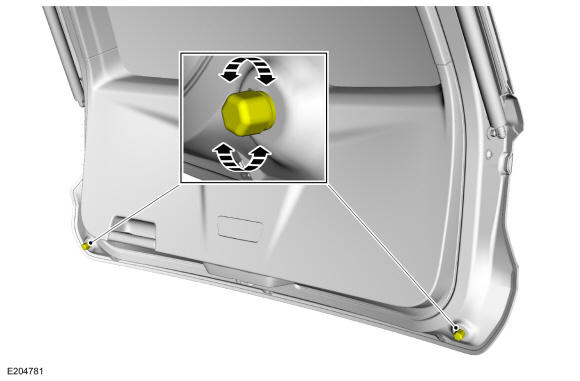

  1. 12.

    Adjust the stops.
GFD125297Courtesy of FORD MOTOR COMPANY

  1. 13.

    Carefully close the liftgate.
GFD125293Courtesy of FORD MOTOR COMPANY

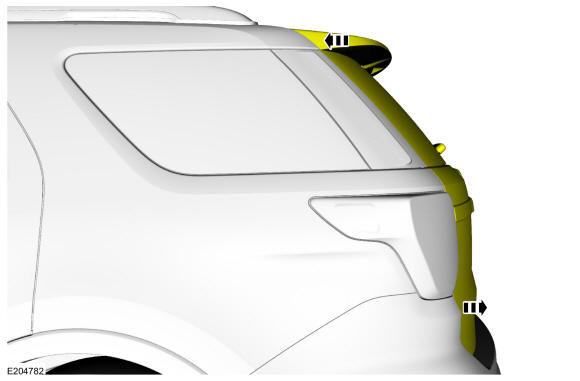

  1. 14.

    Adjust the liftgate to specification. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.
GFD125298Courtesy of FORD MOTOR COMPANY

  1. 15.

    Carefully open the liftgate.
GFD125288Courtesy of FORD MOTOR COMPANY

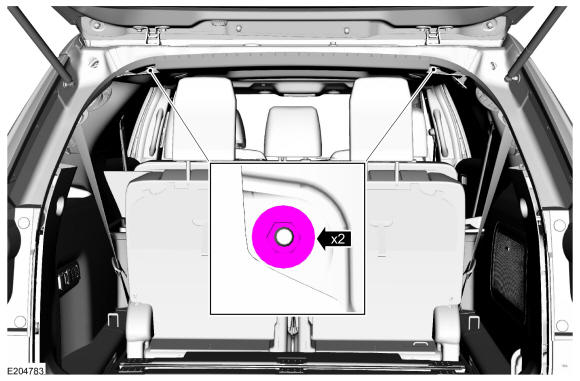

  1. 16.

    Tighten the nuts.

    Torque

    : 41 lb.ft (55 Nm)

GFD125299Courtesy of FORD MOTOR COMPANY

All alignments

  1. 17.

    Inspect the body-to-liftgate door dimensions. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.
GFD125300Courtesy of FORD MOTOR COMPANY

  1. 18.

    Install the position aside and removed components.

  1. 19.

    If equipped with power liftgate, carry out the power liftgate initialization. REFER to: Power Liftgate Initialization .
