Power Transfer Unit
WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

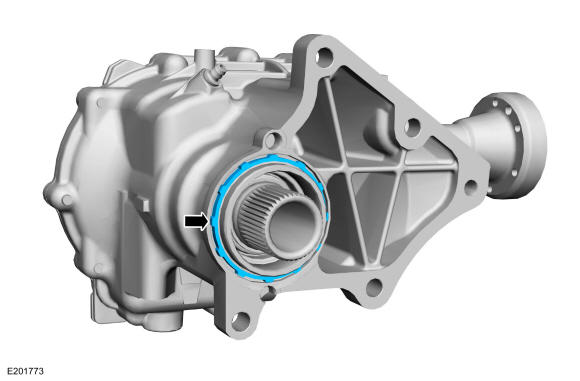

- Install the new PTU to transmission compression seal.

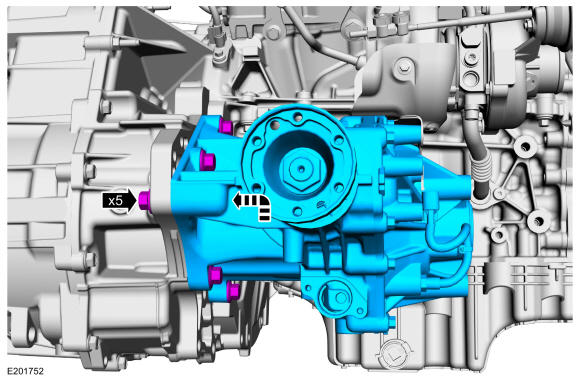

- Install the PTU and the PTU bolts.
Torque: 66 lb.ft (90 Nm)
- If equipped with PTU cooling system, install PTU cooling system hoses and clamps.

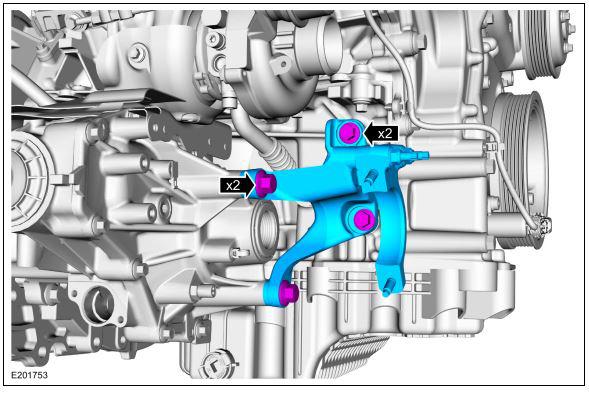

- Install the PTU support bracket and the PTU support bracket bolts.
Torque:
PTU support bracket to block: 35 lb.ft (48 Nm)
PTU support bracket to PTU: 59 lb.ft (80 Nm)
- Connect the PTU vent hose.

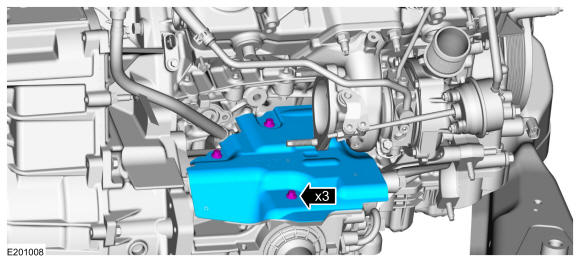

- Install the PTU heat shield and the PTU heat shield bolts.
Torque: 97 lb.in (11 Nm)

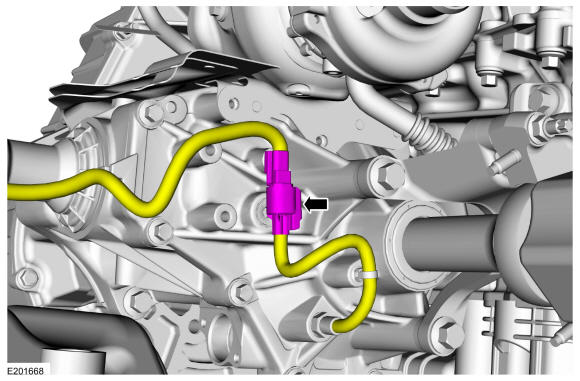

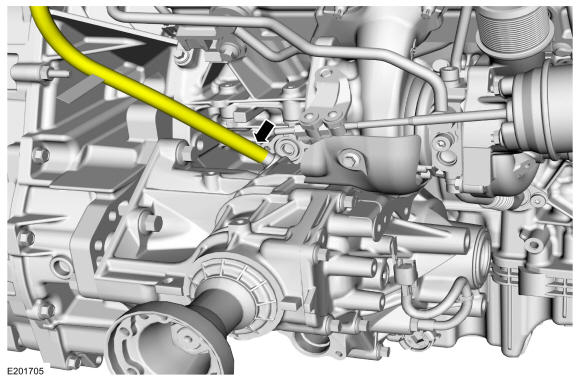

- Connect the PTU temperature sensor.

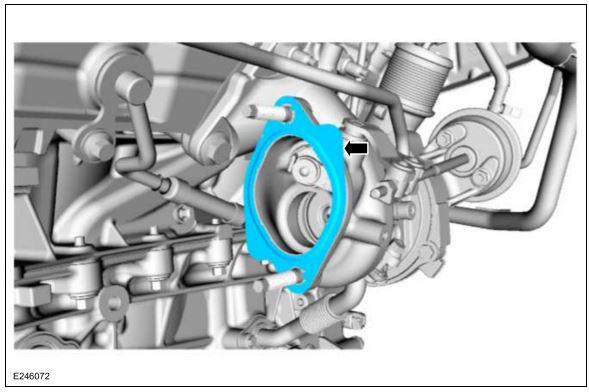

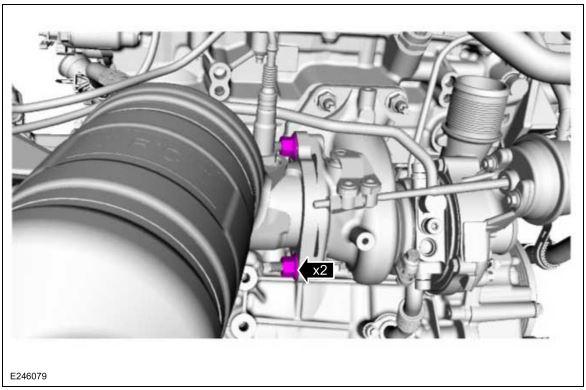

- Install the new converter gasket.
- Install the RH converter and the new RH converter nuts. Torque: 30 lb.ft (40 Nm)

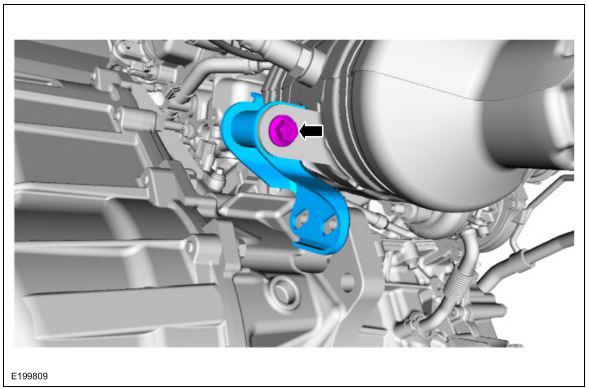

- Install the RH catalytic converter bracket through bolt. Torque: 35 lb.ft (48 Nm)

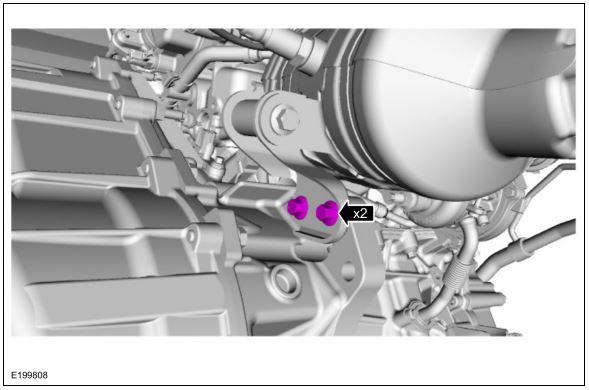

- Install the RH catalytic converter to transmission bracket bolts. Torque: 22 lb.ft (30 Nm)

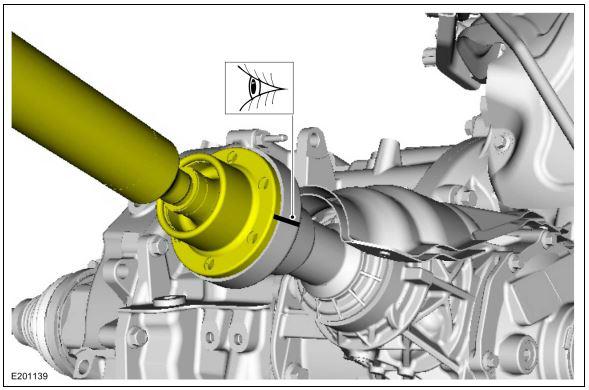

- Align the index-mark on driveshaft to the PTU pinion flange.

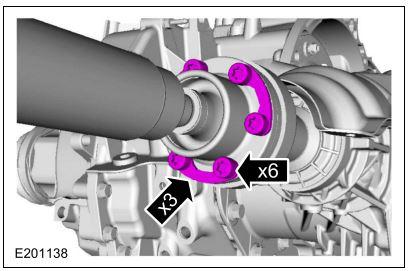

- Install the new driveshaft to PTU bolt and washer assemblies. Torque: 26 lb.ft (35 Nm)

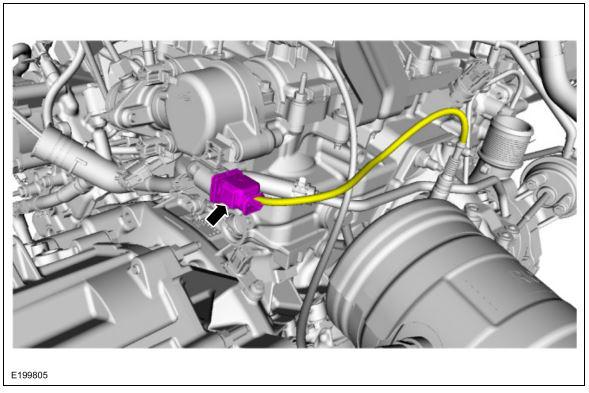

- Connect the catalyst monitor sensor.

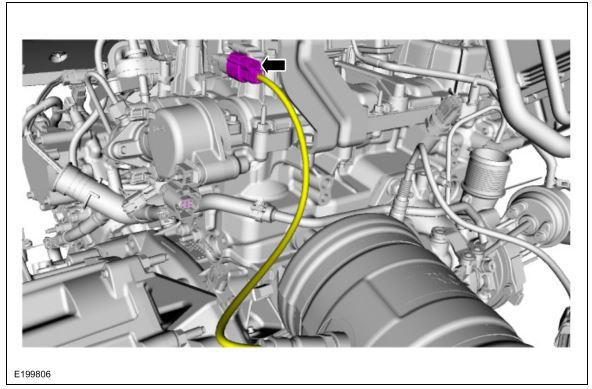

- Connect the HO2S.
- Check the exhaust system for leaks.
- Install the RH halfshaft. Refer to: Front Halfshaft RH - 2.7L ECOBOOST (238KW 324PS), ALL-WHEEL DRIVE (AWD) .
- Fill the PTU fluid. Refer to: Power Transfer Unit Fluid Level Check .
- Install the front subframe. Refer to:Front Subframe .
- If equipped with PTU cooling system, fill the cooling system. Refer to:Cooling System Draining, Vacuum Filling And Bleeding .
NOTE:
This is a tight fit, use care to not damage the transmission and PTU mating surfaces.
NOTE:
Evenly tighten the fasteners during installation.
NOTE:
Loosely install the RH catalytic converter to transmission bracket through bolt before the RH catalytic converter bracket bolts are installed.
