Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass has been removed or adjusted, or if the roof opening panel frame has been removed.

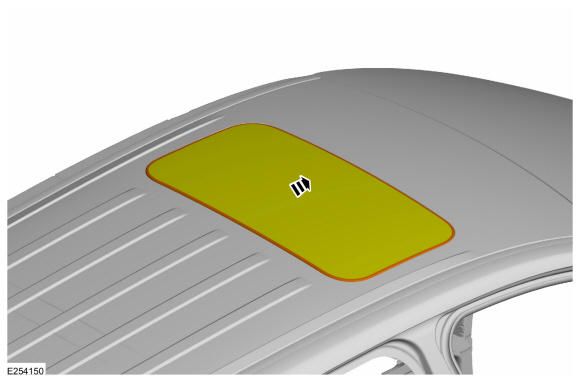

  1. Fully close the roof opening panel.
    GFD329225Courtesy of FORD MOTOR COMPANY

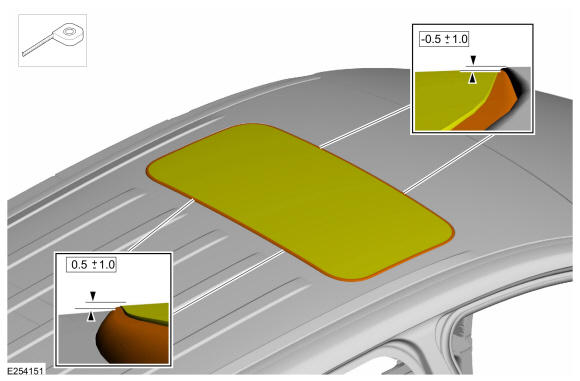

  2. Measure the front and rear of the roof opening panel glass to roof clearances as shown in illustration.
    GFD329226Courtesy of FORD MOTOR COMPANY

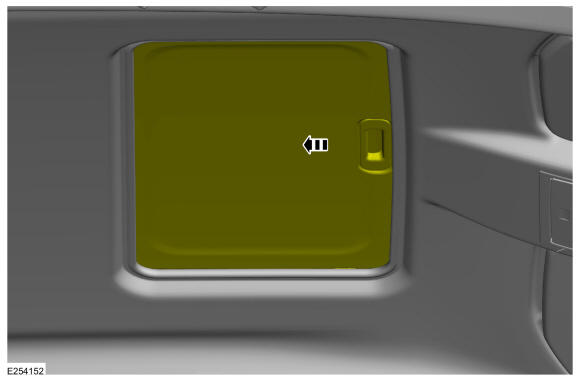

  3. If adjustment is needed, fully open the roof opening panel shield.
    GFD329227Courtesy of FORD MOTOR COMPANY

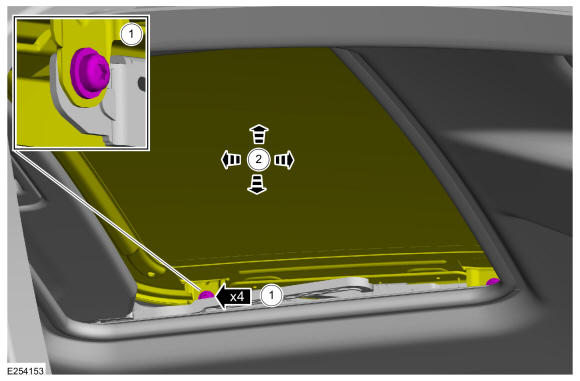

  4. Adjust the roof opening panel glass.

    1. NOTE: LH side shown in illustration, RH side similar.

      On both sides, loosen the retainers to adjust the roof opening panel glass.

      Torque: 28 lb.in (3.2 Nm)

    2. Adjust the roof opening panel glass as necessary.

    GFD329228Courtesy of FORD MOTOR COMPANY
  5. If any adjustment was made, initialize the roof opening panel glass. Refer to: Power Roof Opening Panel Initialization .
