Transfer Case Control Module (TCCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new TCCM when the vehicle was built with engineering part numbers beginning with JL3A-7H417-* OR KL3A-7H417-*.

Using the diagnostic scan tool, begin the PMI process for the TCCM following on-screen instructions.

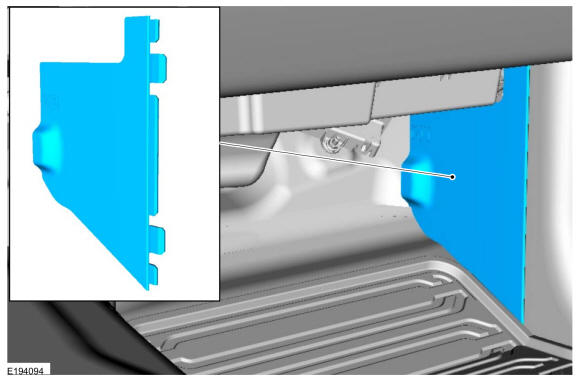

Remove the CJB cover.

Courtesy of FORD MOTOR COMPANY

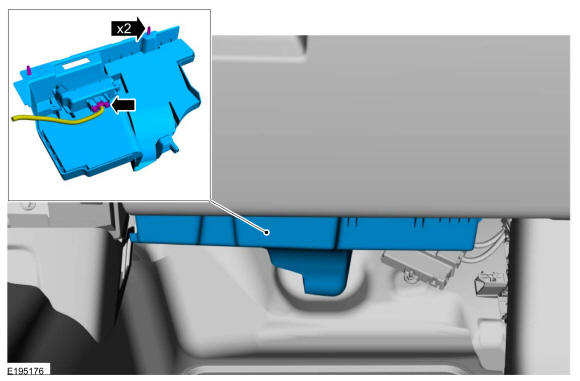

Remove and disconnect the lower access panel.

Courtesy of FORD MOTOR COMPANY
NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM nut when removing the TCCM.

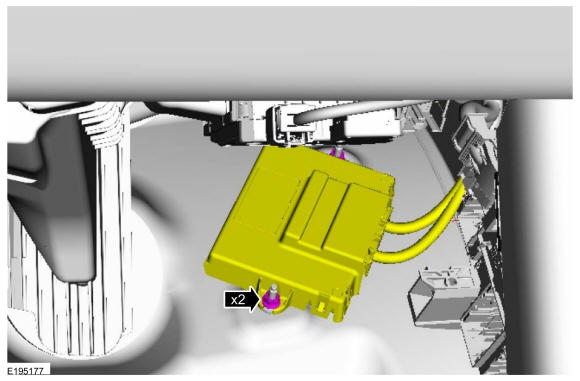

Loosen the LH TCCM nut and remove the RH TCCM nut.

Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

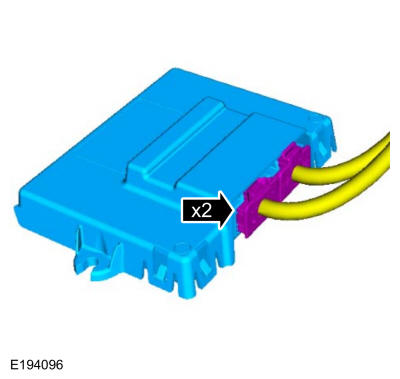

Disconnect the electrical connectors and remove the TCCM.

Courtesy of FORD MOTOR COMPANY
