Connector Identification

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1995 GMC Vandura Special, 1995 GMC Vandura, 1995 GMC Rally Camper Special, 1995 GMC Rally, and 1995 Chevrolet Sportvan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To identify SIR wiring connector terminals, see Fig 1 -8.

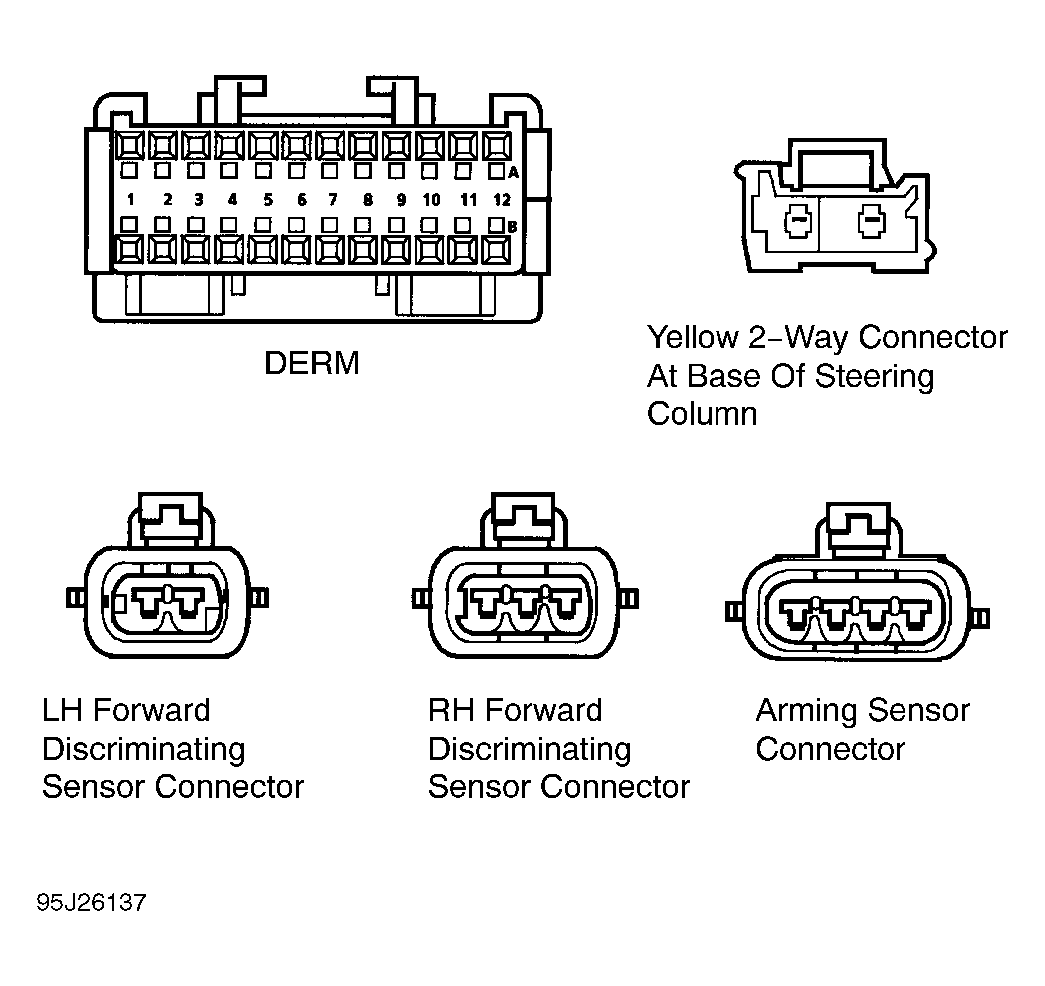

Fig 1: DERM Connector
G95J26137Courtesy of GENERAL MOTORS CORP.
Fig 2: Yellow 2-Way Connector At Base Of Steering Column
G50J03753Courtesy of GENERAL MOTORS CORP.
Fig 3: LH Forward Discriminating Sensor Connector
G50B03754Courtesy of GENERAL MOTORS CORP.
Fig 4: RH Forward Discriminating Sensor Connector
G50E03755Courtesy of GENERAL MOTORS CORP.
Fig 5: Arming Sensor Connector
G50G03756Courtesy of GENERAL MOTORS CORP.
