Active Safety Control Module Bracket Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

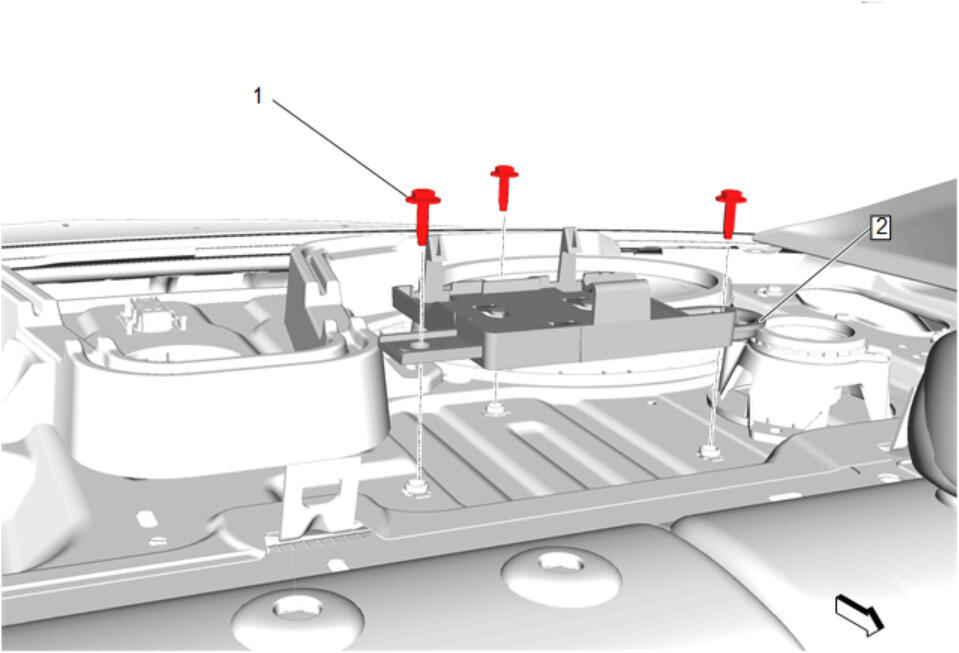

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Image Processing Module Replacement |
|
| 1 | Active Safety Control Module Bracket Bolt [3x]
CAUTION:
Tighten 9N.m (80 lb in) |
| 2 | Active Safety Control Module |
