Installation Procedure

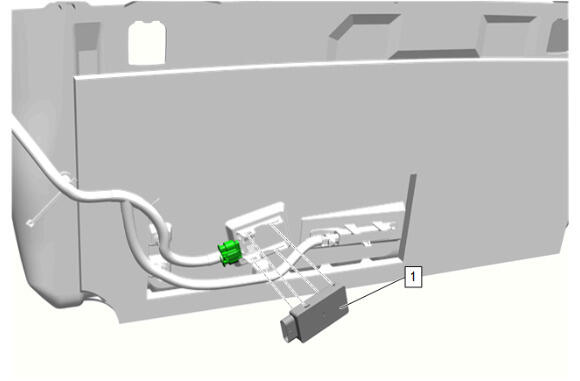

  1. GM5830170

    UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.

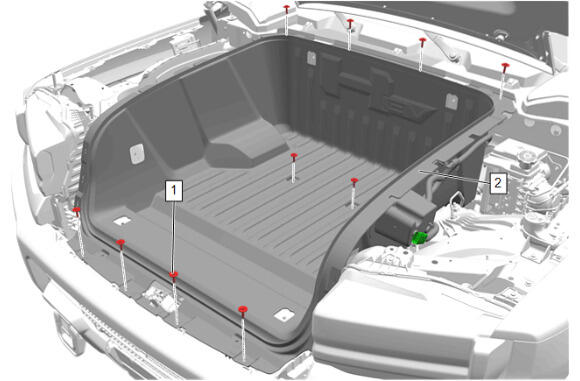

  4. GM5787366

    Front Trim Finish Compartment (2) - Install

    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Trim Finish Compartment Bolt (1) - Install and tighten [10x] - Fastener Specifications
  6. Connect the electrical connector.

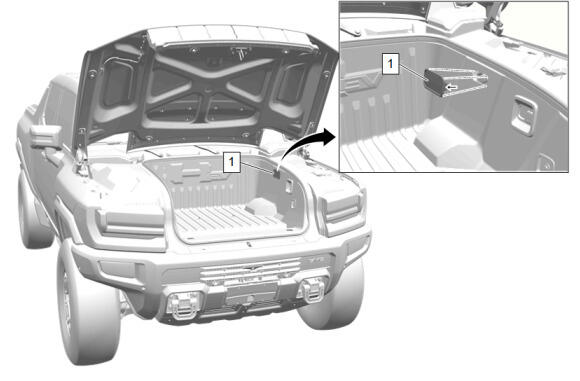

  7. GM5838163

    Connect the electrical connector.

  8. Cargo Lamp (1) - Install
  9. Ensure the retaining tab has fully secured.

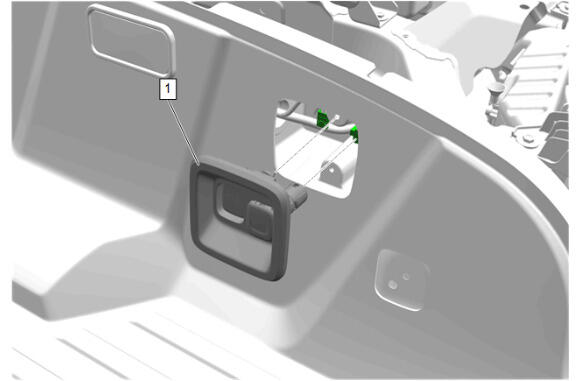

  10. GM5787367

    Connect the electrical connectors.

  11. Front Trim Finish Compartment Lamp Bezel (1) - Install

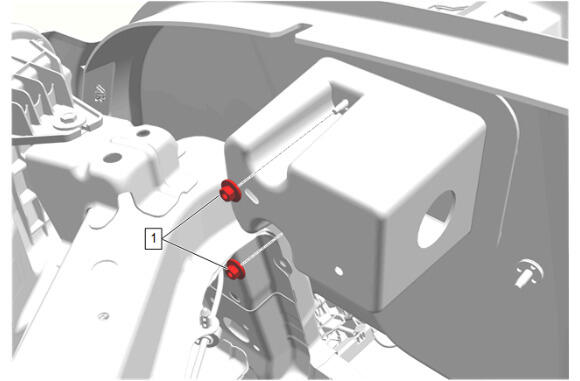

  12. GM5787369

    Front Trim Finish Compartment Support Nut (1) - Install and tighten [2x] - Fastener Specifications

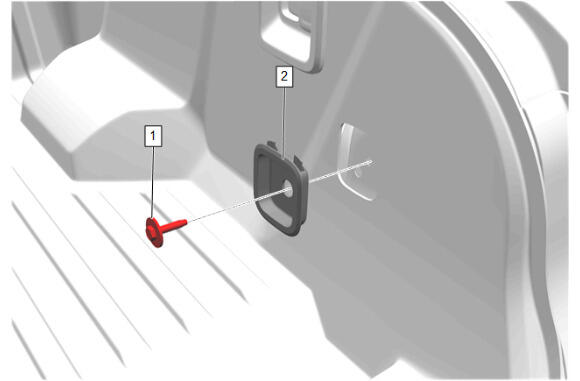

  13. GM5787368
    NOTE:

    Left side shown, right side similar.

    Front Trim Finish Compartment Closeout Cap- Left Side and Right Side (2) - Install [2x]

  14. Front Trim Finish Compartment Bolt- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications

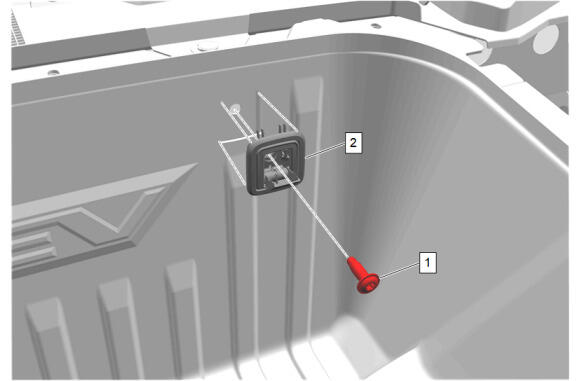

  15. GM5787372
    NOTE:

    rear shown, front similar.

    Cargo Tie Down Loop-Rear and Front (2) - Install [4x]

  16. Cargo Tie Down Loop Bolt-Rear and Front (1) - Install and tighten [4x] - Fastener Specifications

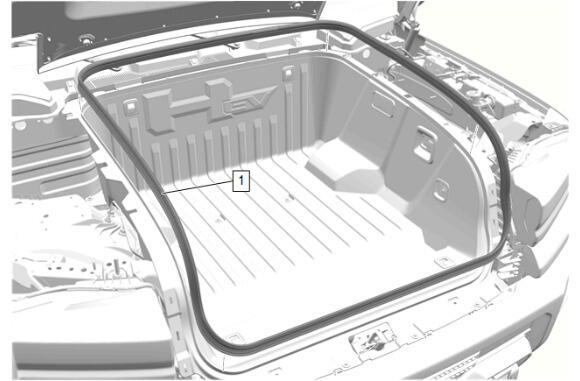

  17. GM5787363

    Hood Weatherstrip (1) - Install

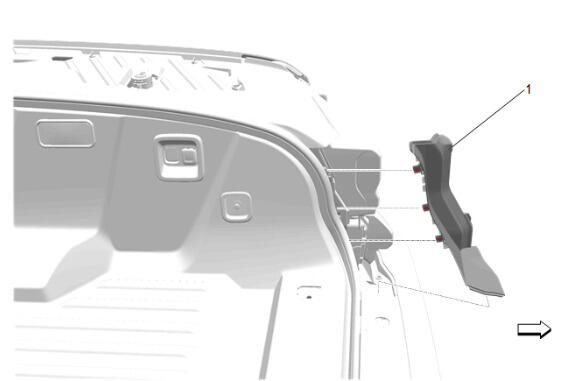

  18. GM5791729
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield- Front- Left Side and Right Side (1) - Install [2x]

  19. GM5787987
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield- Left Side and Right Side (1) - Install [2x]

  20. GM5787985
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [6x]

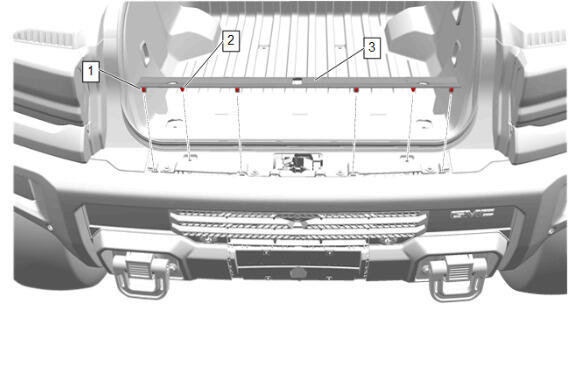

  21. GM5787926

    Front Compartment Front Sight Shield (3) - Install

  22. Front Compartment Front Sight Shield Retainer (2) - Install [2x]
  23. Front Compartment Front Sight Shield Clip (1) - Install [4x]
