Installation Procedure

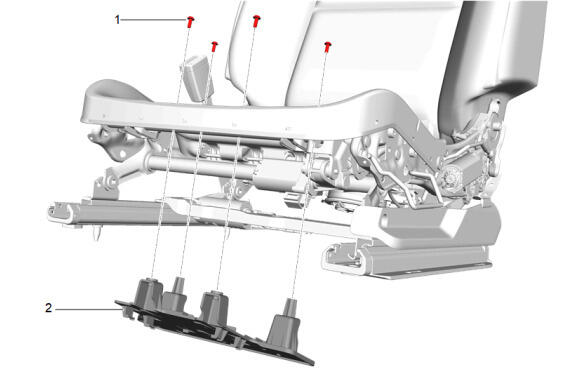

  1. GM5587533

    Front Seat Adjuster Memory Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Adjuster Memory Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. Connect and position the wiring harness.

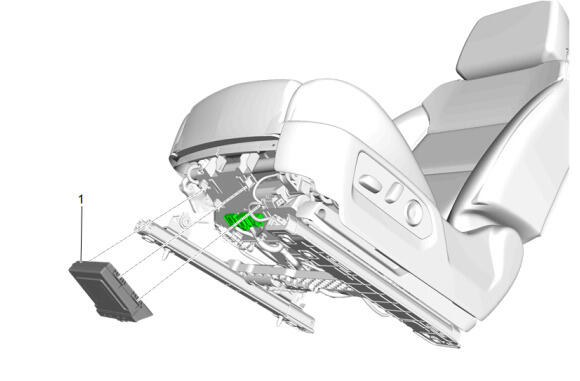

  4. GM5586498

    Driver or Passenger Seat Adjuster Memory Module (1) - Install

  5. Connect the electrical connectors.

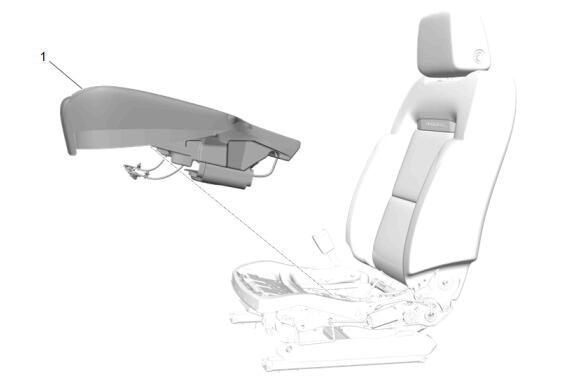

  6. GM5788641

    Front Seat Cushion Cover and Pad (1) - Install - Front Seat Cushion Cover and Pad Removal and Installation
