Installation Procedure
Cruise Control Switch (1) - Install
- CAUTION:
Cruise Control Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.

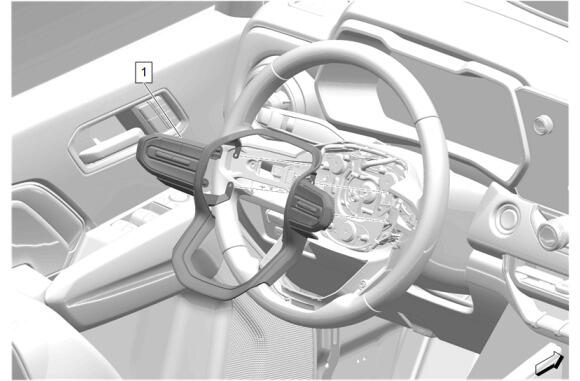

- Steering Wheel Trim Spoke Cover Applique (1) - Install

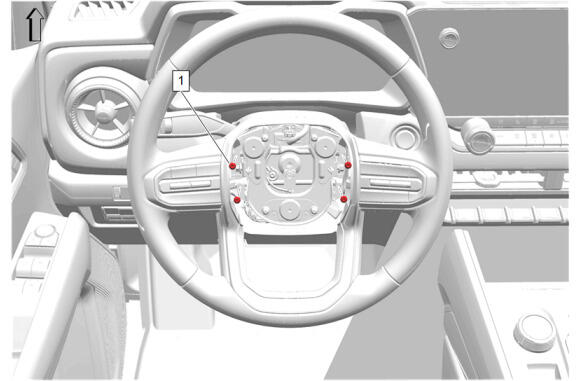

Steering Wheel Spoke Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
Cruise Control Switch Bolt (1) @ Steering Wheel Trim Spoke Cover Applique - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
- Install any connector position assurance (CPA) devices or secondary locks.
- Steering Wheel Airbag (1) - Install

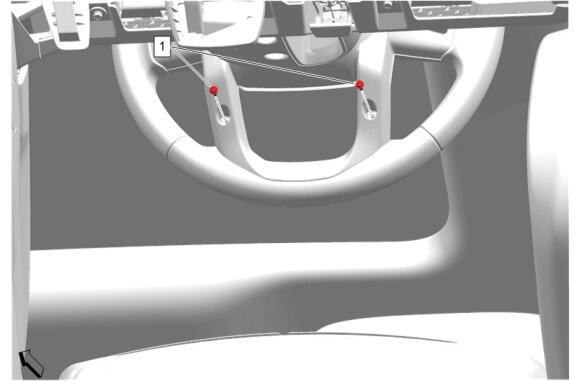

Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
Install the left and right steering wheel airbag access hole covers (1).
- Enable the SIR System. SIR Disabling and Enabling
After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.
