Installation Procedure

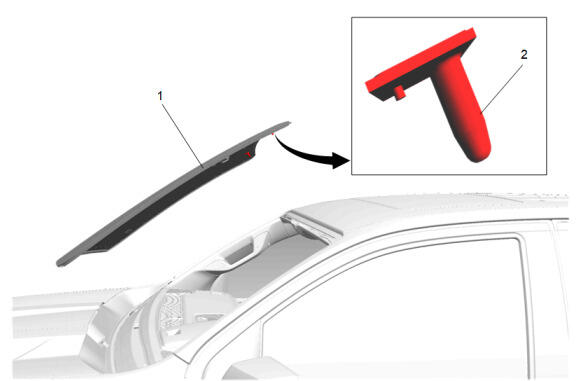

  1. GM6194997Courtesy of GENERAL MOTORS COMPANY

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. With the aid of an assistant, install the windshield (1) and locating pins (2) to the vehicle.

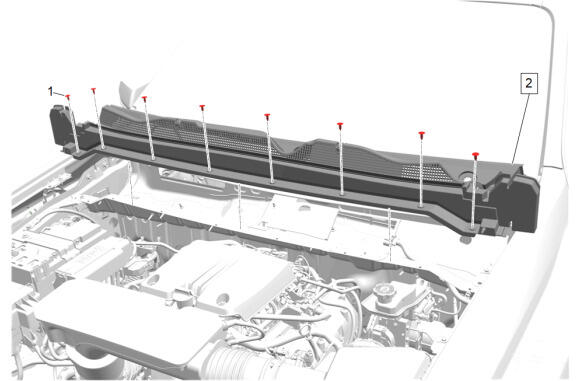

  3. GM6260490Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  4. Air Inlet Grille Panel Retainer (1) - Install [8x]

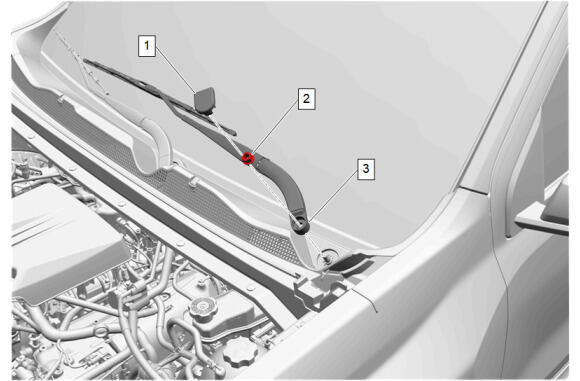

  5. GM6145251Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm - Left Side and Right Side (3) - Install [2x]

    6. CAUTION:

    Refer to Fastener Caution .

  6. Windshield Wiper Arm Nut - Left Side and Right Side (2) - Install and tighten - Fastener Specifications [2x]
  7. Windshield Wiper Arm Finish Cap - Left Side and Right Side (1) - Install [2x]

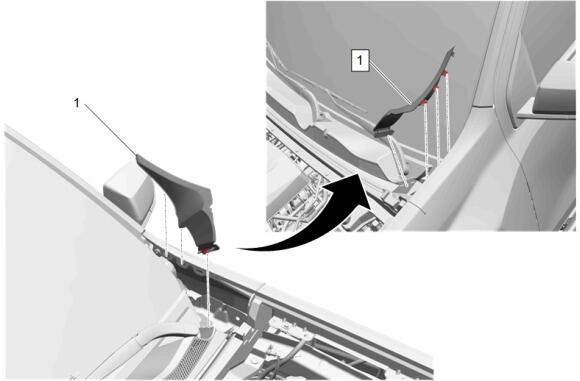

  8. GM6145259Courtesy of GENERAL MOTORS COMPANY
  9. Air Inlet Grille Panel Extension - Left Side and Right Side (1) - Install [2x]

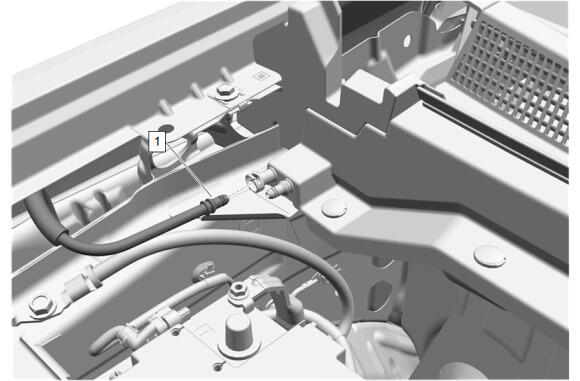

  10. GM6144530Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1) - Connect

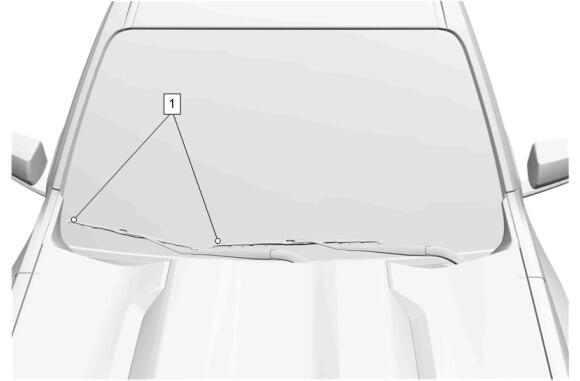

  11. GM6145293Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  12. Lubricate the windshield with clean washer fluid.
  13. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  14. Ensure the windshield wipers are in the full park position.

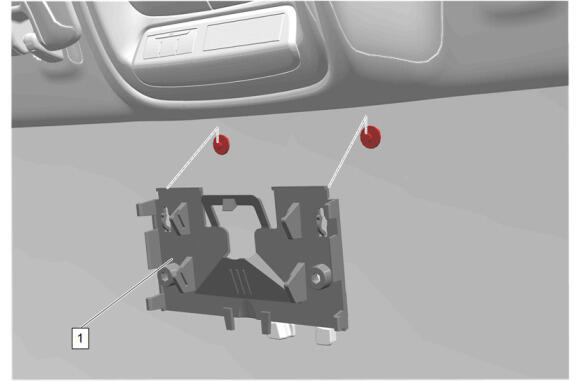

  15. GM6173907Courtesy of GENERAL MOTORS COMPANY

    Clean the inside of the windshield before installing the front view driver information camera bracket (1).

  16. Front View Driver Information Camera Bracket (1) - Install
  17. Connect the electrical connectors and install the wiring harness retainers as necessary.

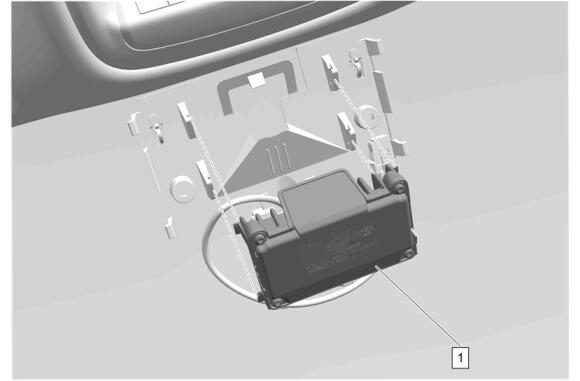

  18. GM6173904Courtesy of GENERAL MOTORS COMPANY

    Front View Driver Information Camera (1) - Install

  19. Slide the front view camera (1) downward to engage.
  20. Secure the retaining tab.
  21. Connect the electrical connector.

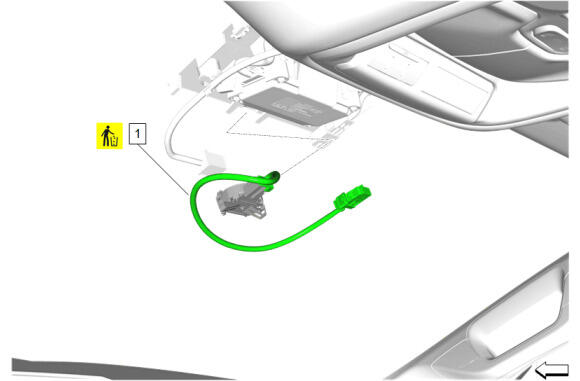

  22. GM6138631Courtesy of GENERAL MOTORS COMPANY

    Inside Air Moisture and Windshield Temperature Sensor (1) - Install NEW

  23. Connect the electrical connector.

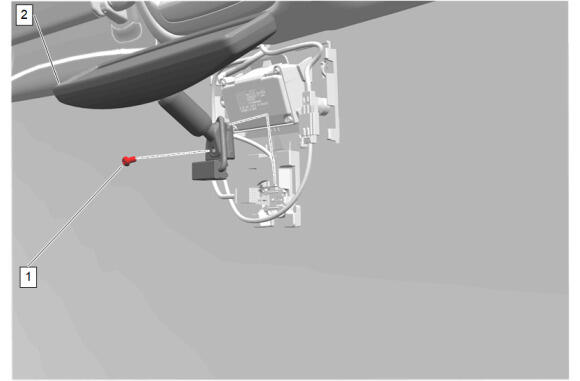

  24. GM6146666Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Slide the inside rearview mirror onto the mirror mount.

    Inside Rearview Mirror (2) - Install

  25. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  26. Connect all electrical connectors, if equipped.
  27. GM6143323Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

  28. GM6143322Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  29. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
  30. Enable the SIR System. SIR Disabling and Enabling
  31. {If equipped} Perform the front view camera windshield learn.
