Installation Procedure

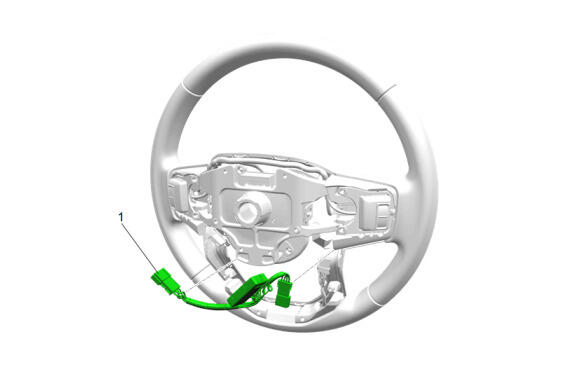

Heated Steering Wheel Module (1) - Install
- Connect the heated steering wheel module electrical connectors.

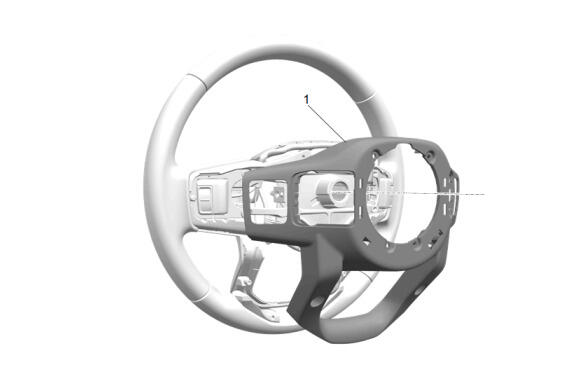

Steering Wheel Shroud (1) - Install
- CAUTION:
Steering Wheel Spoke Cover Bolt (1) - Install and tighten [8x] - Fastener Specifications
- Cruise Control Switch Bolt (2) @ Steering Wheel Shroud - Install and tighten [2x] - Fastener Specifications
Steering Wheel (1) - Install
- Connect the electrical connectors.
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.
- Install any connector position assurance (CPA) devices or secondary locks.
- Steering Wheel Airbag (1) - Install
Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
Install the left and right steering wheel airbag access hole covers (1).
- Enable the SIR System. SIR Disabling and Enabling
After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.
