Installation Procedure

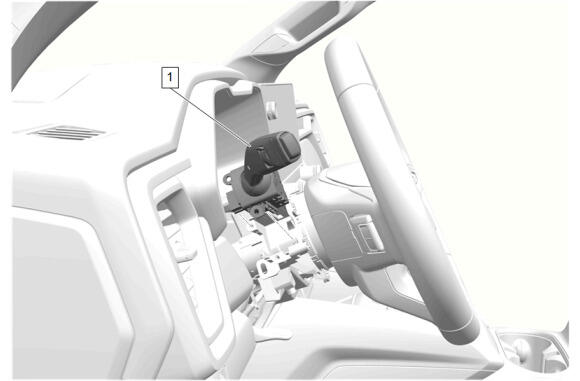

  1. GM6148343Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Install

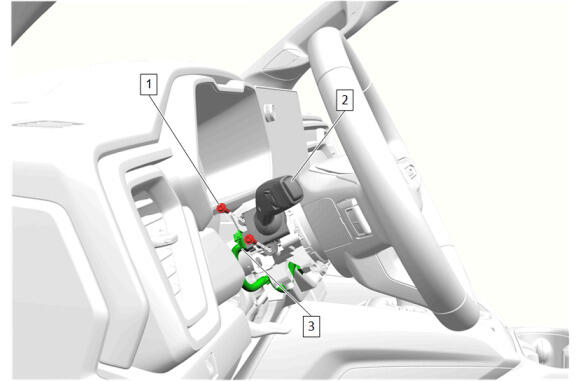

  2. GM6148244Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

    Turn Signal Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications

  3. Connect the electrical connector. (3)

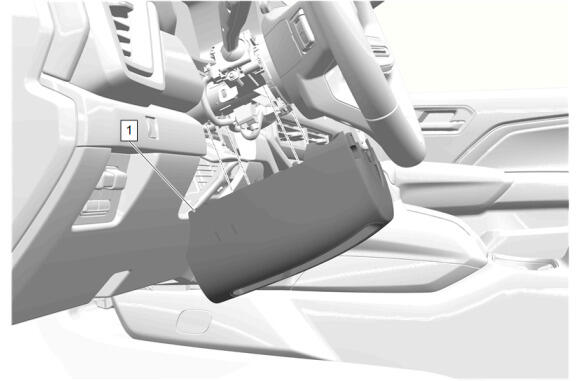

  4. GM6148344Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Maneuver the instrument panel steering column lower trim cover around the steering column tilt and telescoping lever as necessary.

    Instrument Panel Steering Column Lower Trim Cover (1) - Install

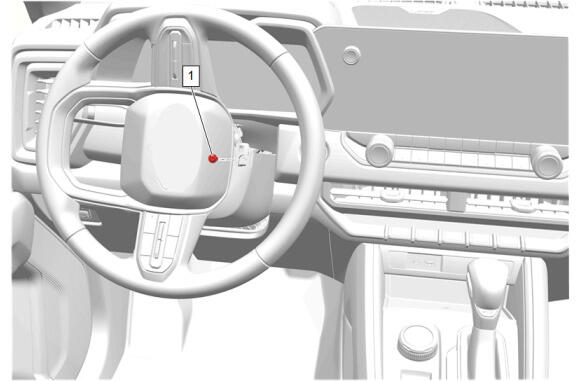

  5. GM6153158Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

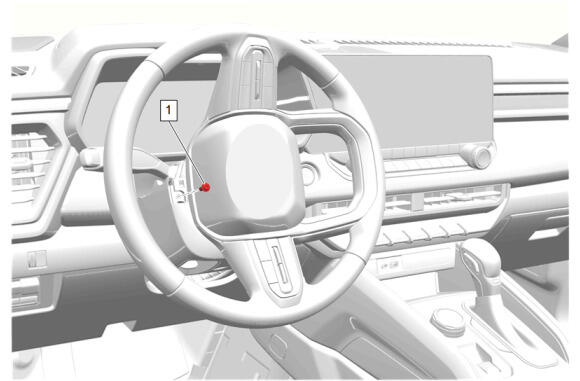

  7. GM6153160Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  8. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

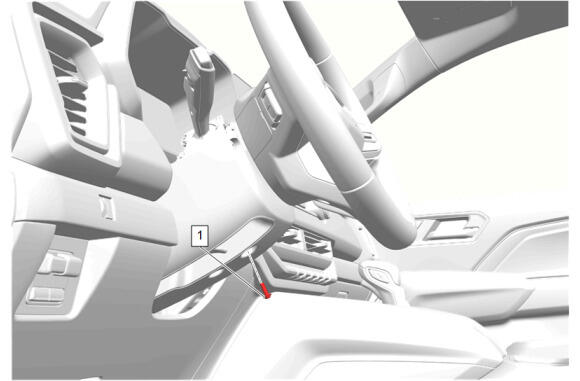

  9. GM6153157Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

  10. Turn the steering wheel to the centered position.

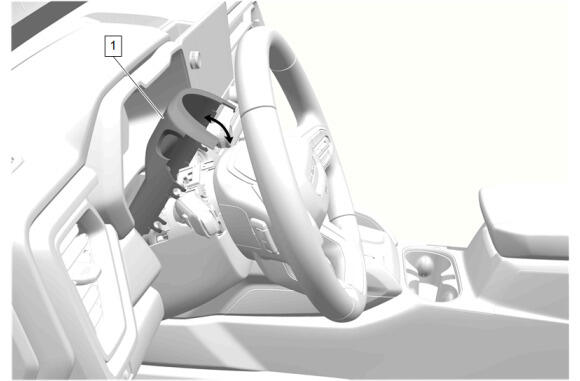

  11. GM6148245Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
