Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

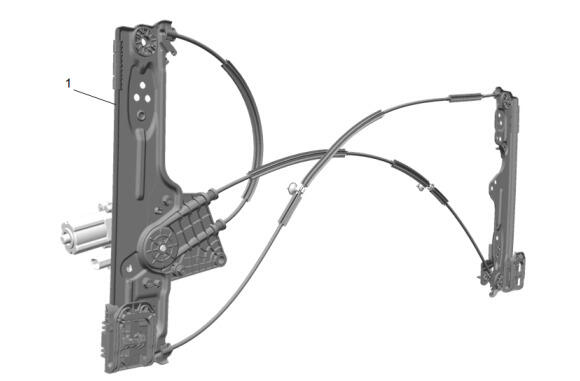

Install the rear sliding window regulator (1) to the rear end panel reinforcement.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install and tighten the 5 rear sliding window regulator nuts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

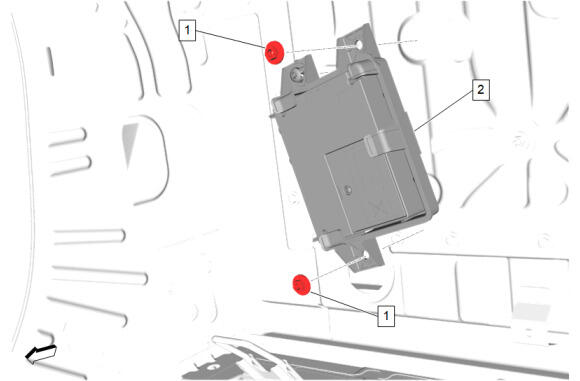

Communication Interface Module Bracket (2) - Install
Communication Interface Module Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

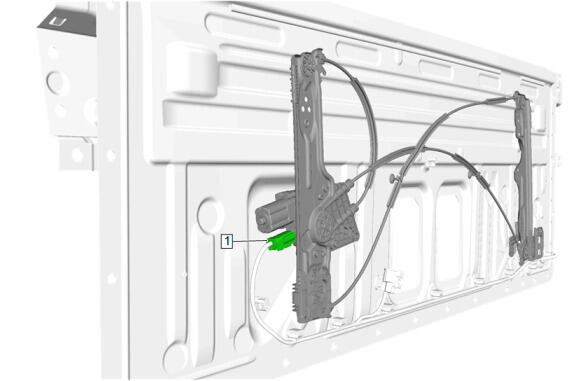

Connect the electrical connector (1) to the rear sliding window motor.
Courtesy of GENERAL MOTORS COMPANY

Install and secure the rear sliding window (1) into the rear sliding window sash (2).
Courtesy of GENERAL MOTORS COMPANY

Install the wiring harness retainer.
Connect the rear sliding window defogger electrical connector (1) to the rear sliding window wiring harness.
With the aid of an assistant, install the rear end panel reinforcement into the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the 20 rear panel access bolts (1). Fastener Specifications
Feed the rear seat center belt, anchor plate, and buckle through the rear seat belt guide.
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the 8 rear end panel reinforcement bolts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Sealant should be applied along the top and side edges of the wiring harness grommet.

Apply new sealant around the body wiring harness grommets (1). Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

Connect the wiring harness retainers.
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Install the rear window weatherstrip (1).
Courtesy of GENERAL MOTORS COMPANY

Ensure the seat belt webbing is not caught by panel clip tower and is in front of it.
Body Lock Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Body Side Rear Window Garnish Molding- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Rear Window Lower Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the wiring harness retainer.
Headlining Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Rear Seat Position Center Reading and Courtesy Lamp (1) - Install
Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Feed the seat belt tensioner through the panel.
Engage the retaining clips at the front and rear of the side door sill garnish molding (1).
Side Door Sill Garnish Molding- Left Side and Right Side (1) - Install [2x]
Install the front and rear side door weatherstrips as necessary.
Courtesy of GENERAL MOTORS COMPANY

Align the bottom of the center pillar lower trim panel with the side door sill garnish molding.
Center Pillar Lower Trim Panel- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Center Pillar Lower Garnish Molding Lower Hole Cover- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Seat Belt Anchor Plate Tensioner Bolt- Upper- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
Front Seat Belt Anchor Plate Tensioner Cover- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion (2) - Install - Rear Seat Cushion Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Seat- Left Side and Right Side (2) - Install [2x] - Front Seat Removal and Installation
Enable the SIR System. SIR Disabling and Enabling
Test the operation of the rear sliding window.
