Installation Procedure

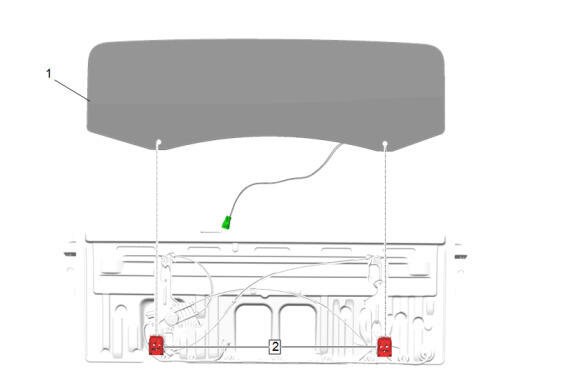

  1. GM5864544Courtesy of GENERAL MOTORS COMPANY

    Install and secure the rear sliding window (1) into the rear sliding window sash (2).

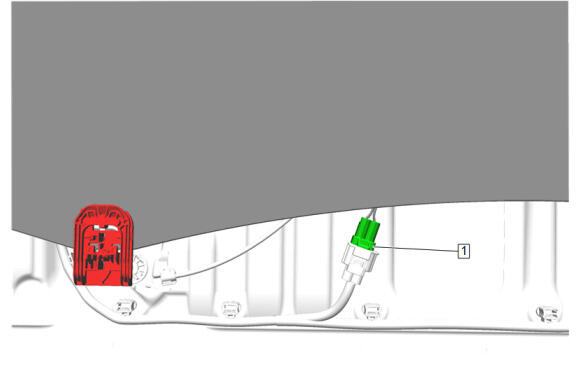

  2. GM5864541Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness retainer.

  3. Connect the rear sliding window defogger electrical connector (1) to the rear sliding window wiring harness.
  4. With the aid of an assistant, install the rear end panel reinforcement into the vehicle.

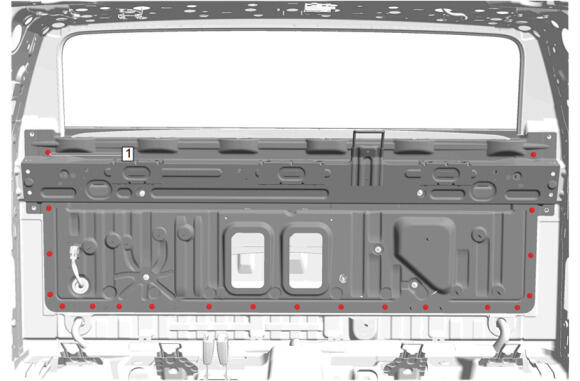

  5. GM5868100Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the 20 rear panel access bolts (1). Fastener Specifications

  6. Feed the rear seat center belt, anchor plate, and buckle through the rear seat belt guide.

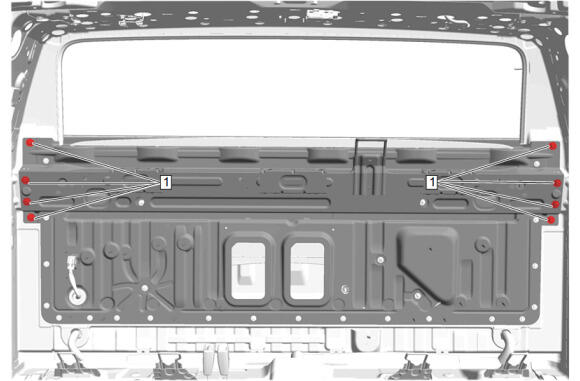

  7. GM5868097Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 8 rear end panel reinforcement bolts (1). Fastener Specifications

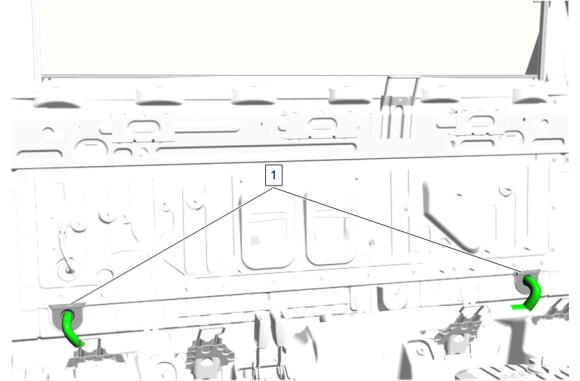

  8. GM6148326Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Sealant should be applied along the top and side edges of the wiring harness grommet.

    Apply new sealant around the body wiring harness grommets (1). Adhesives, Fluids, Lubricants, and Sealers

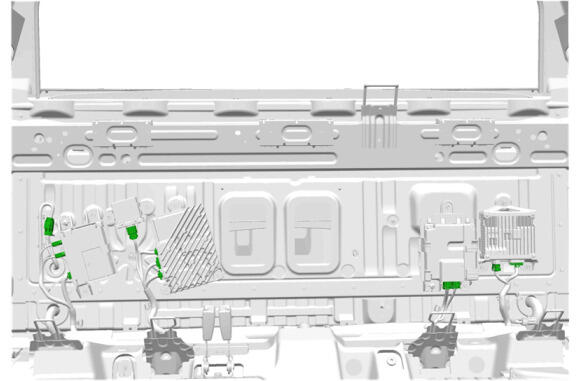

  9. GM5867166Courtesy of GENERAL MOTORS COMPANY

    Connect the wiring harness retainers.

  10. Connect all electrical connectors.
  11. GM5864700Courtesy of GENERAL MOTORS COMPANY

    Install the rear window weatherstrip (1).

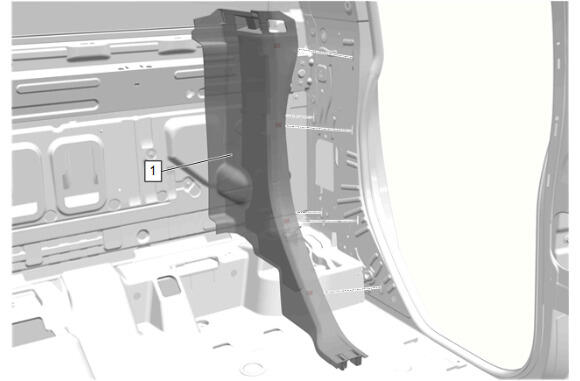

  12. GM5777897Courtesy of GENERAL MOTORS COMPANY

    Ensure the seat belt webbing is not caught by panel clip tower and is in front of it.

  13. Body Lock Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]
  14. GM5777896Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Window Garnish Molding- Left Side and Right Side (1) - Install [2x]

  15. GM5777894Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Rear Window Lower Garnish Molding (1) - Install

  16. GM5777900Courtesy of GENERAL MOTORS COMPANY

    Connect the wiring harness retainer.

  17. Headlining Rear Trim Panel (1) - Install
  18. GM5816533Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Rear Seat Position Center Reading and Courtesy Lamp (1) - Install
  20. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.

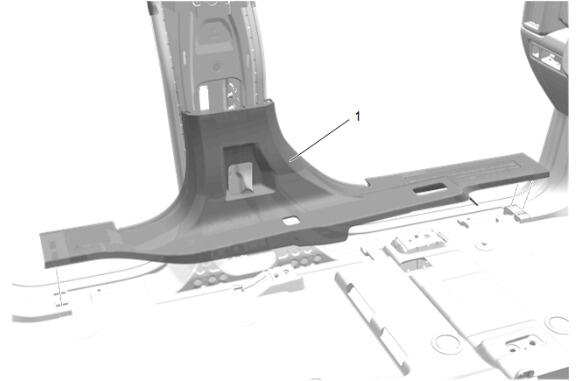

  21. GM5777893Courtesy of GENERAL MOTORS COMPANY

    Feed the seat belt tensioner through the panel.

  22. Engage the retaining clips at the front and rear of the side door sill garnish molding (1).
  23. Side Door Sill Garnish Molding- Left Side and Right Side (1) - Install [2x]
  24. Install the front and rear side door weatherstrips as necessary.

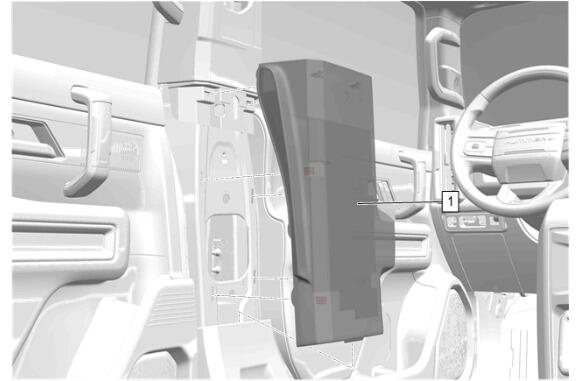

  25. GM5758500Courtesy of GENERAL MOTORS COMPANY

    Align the bottom of the center pillar lower trim panel with the side door sill garnish molding.

  26. Center Pillar Lower Trim Panel- Left Side and Right Side (1) - Install [2x]

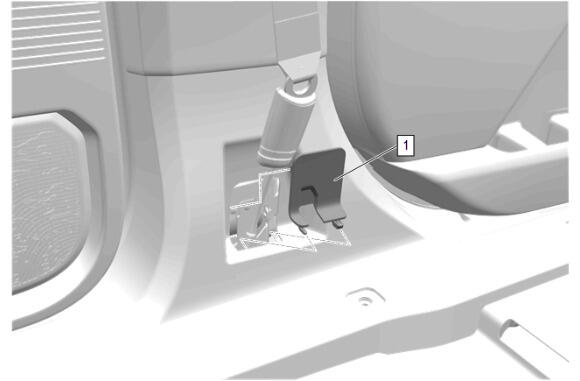

  27. GM5778423Courtesy of GENERAL MOTORS COMPANY

    Center Pillar Lower Garnish Molding Lower Hole Cover- Left Side and Right Side (1) - Install [2x]

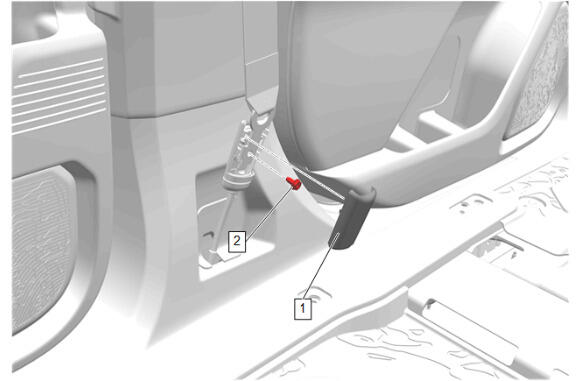

  28. GM5810582Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Anchor Plate Tensioner Bolt- Upper- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications

  29. Front Seat Belt Anchor Plate Tensioner Cover- Left Side and Right Side (1) - Install [2x]

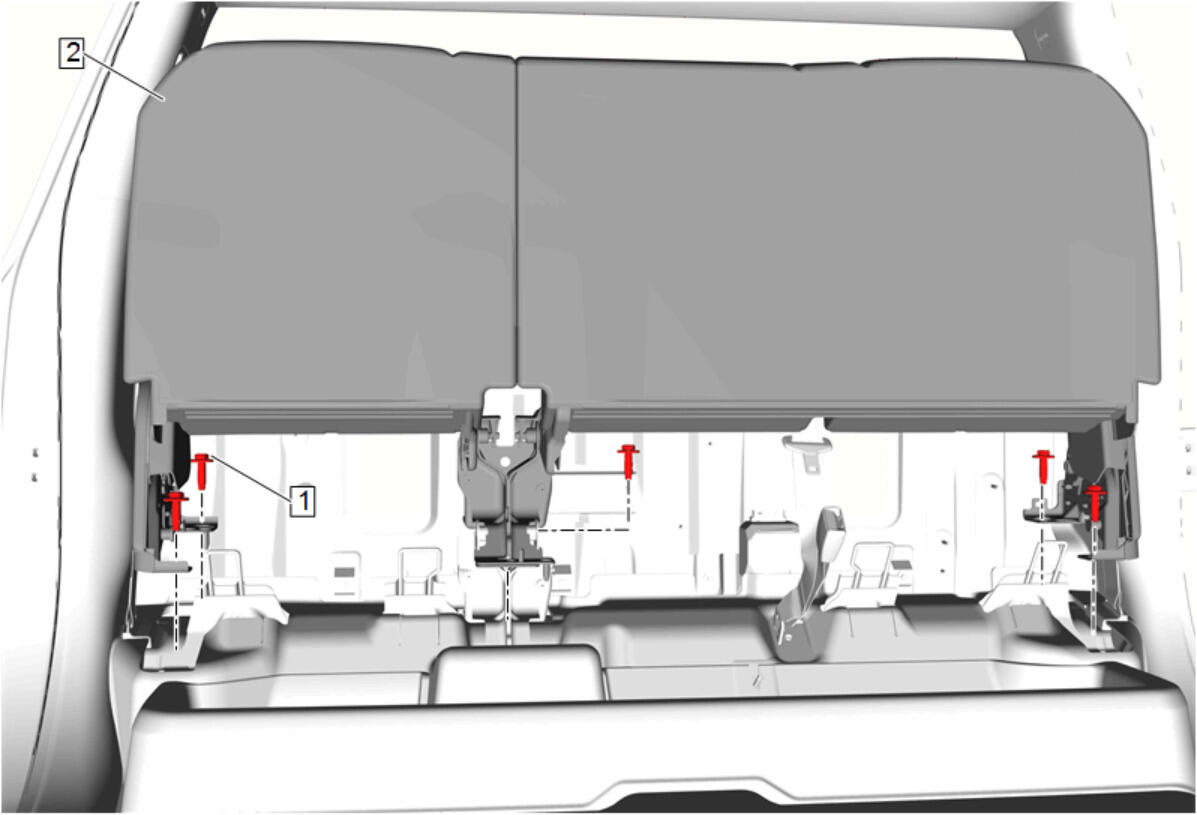

  30. GM5034919Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion (2) - Install - Rear Seat Cushion Removal and Installation

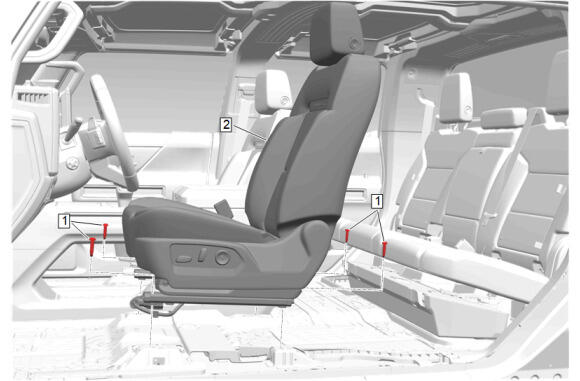

  31. GM5784710Courtesy of GENERAL MOTORS COMPANY

    Front Seat- Left Side and Right Side (2) - Install [2x] - Front Seat Removal and Installation

  32. Enable the SIR System. SIR Disabling and Enabling
  33. Place the rear sliding window in the original position.
