Monitor DTC Status

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to "DATA LINK CONNECTOR (DLC)".
  2. IG key "ON", Engine "OFF".
  3. Select "Diagnostic Trouble Codes (DTC)  " with GDS.

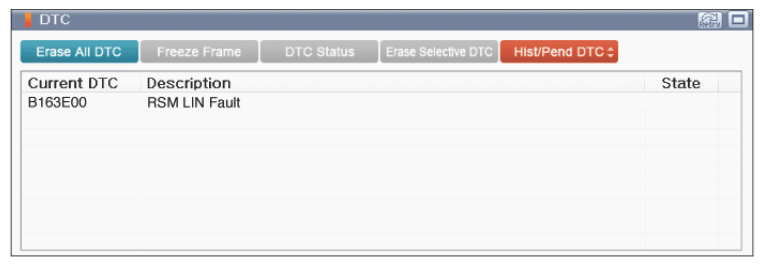

  4. Monitor the diagnostic trouble code and present of the trouble code.
  5. Erase the DTC and operate the vehicle within DTC Enable conditions in General information.
    G14210441Courtesy of HYUNDAI MOTOR AMERICA
  6. Is the DTC output again?

    YES

    NO

    • Fault is intermittent caused by poor contact in RSM*'s connector or IBU*_BCM's connector, or IBU*_BCM's memory was not cleared after repair.

      → Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

      → Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NOTE: RSM*: "RAIN SENSOR"
    IBU*: "IBU CONTROL MODULE"
