Driver's Panel Removal/Installation

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Take care not to scratch the dashboard and related parts.

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).

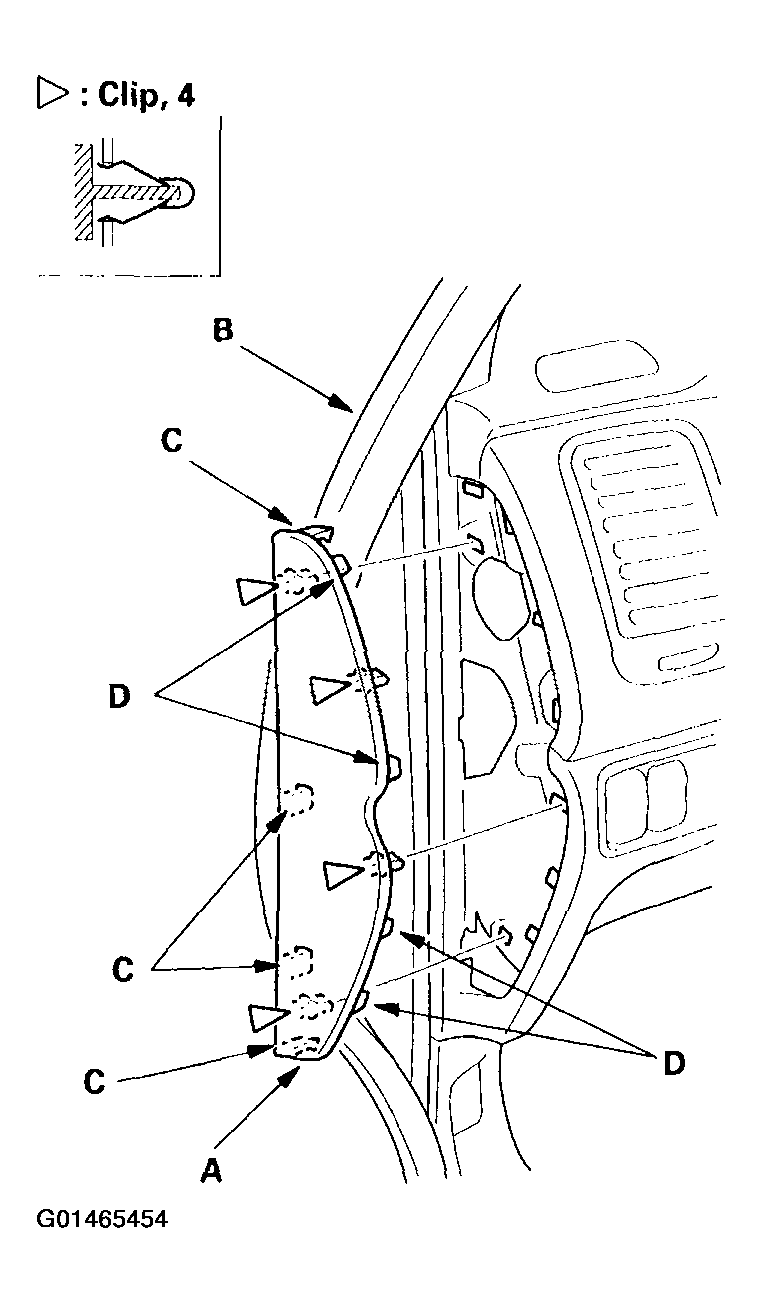

On the driver's side of the dashboard, remove the dashboard side lid (A).
1. Remove the front door opening trim (B), as necessary.
2. Gently pull out along the rear edge to release the clips and hooks (C).
3. Gently pull out on the lid to release the top and bottom clips and the hooks (D), then remove the lid.
Fig 1: Identifying Driver's Panel Fastener Locations (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

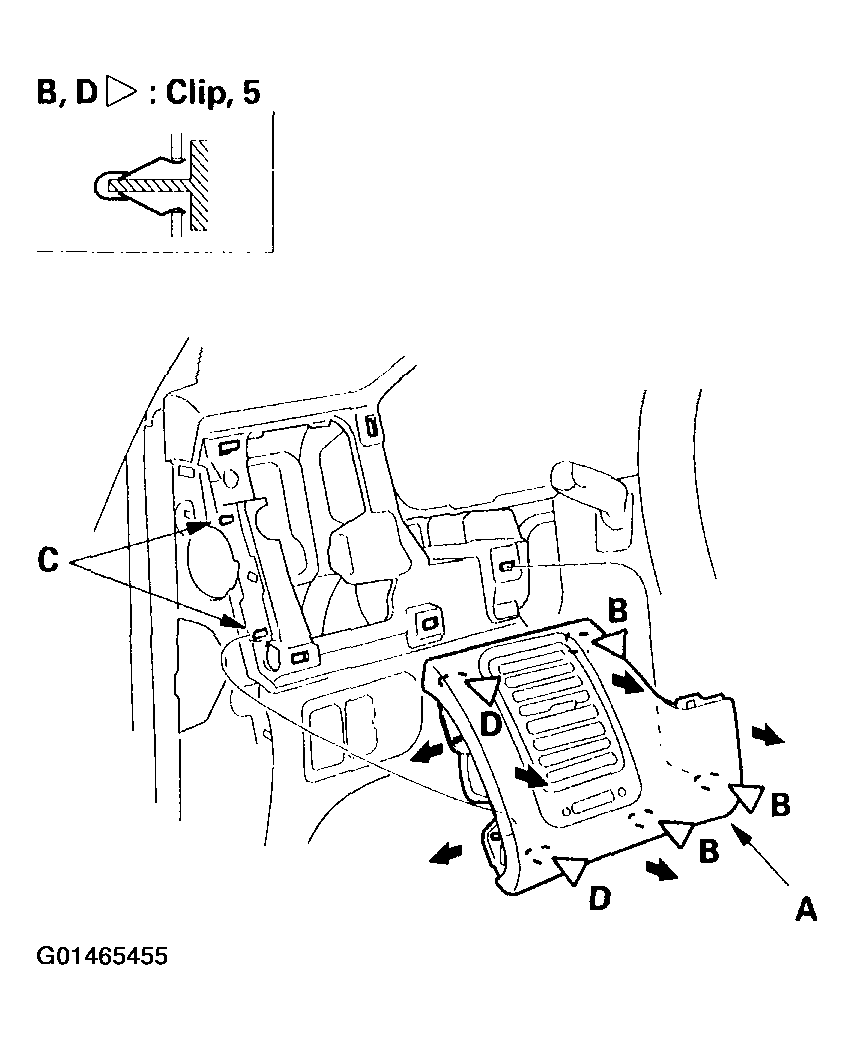

Remove the driver's panel (A).
1. Gently pull out the inside edge on the panel to detach the clips (B).
2. On the outside edge of the dashboard, release the hooks (C) from the dashboard.
3. Gently pull out the outside edge on the panel to detach the clips (D).
Fig 2: Identifying Driver's Panel Fastener Locations (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips and hooks into place securely.
