Fan Motor Test

Disconnect the 2P connectors from the radiator fan motor (A) and condenser fan motor (B).

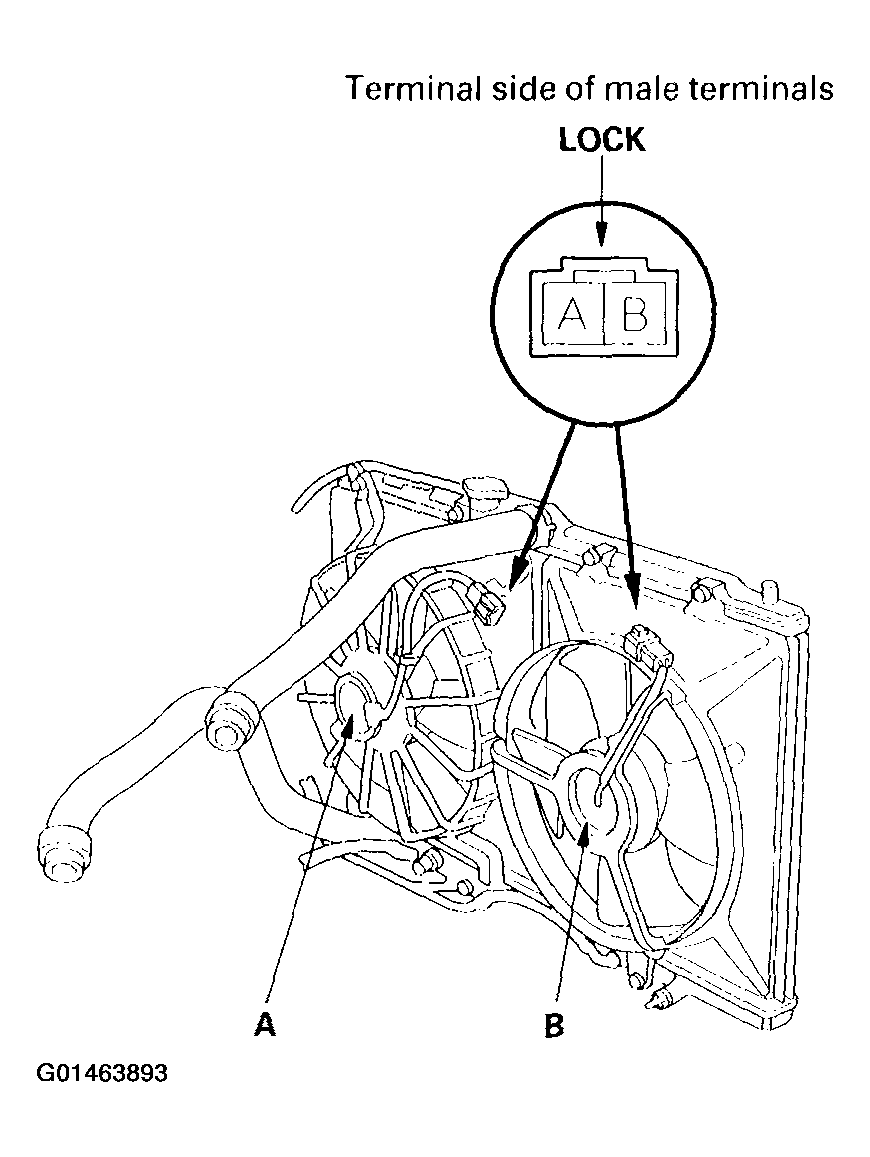

Fig 1: Identifying Radiator Fan Motor & Condenser Fan Motor 2P Connectors Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power to the B terminal and ground to the A terminal.
If the motor fails to run or does not run smoothly, replace it (see Radiator & Fan Replacement ).
