Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ), and steering column cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Remove the combination switch assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Remove the combination light/turn switch (A) and the wiper/washer switch (B).

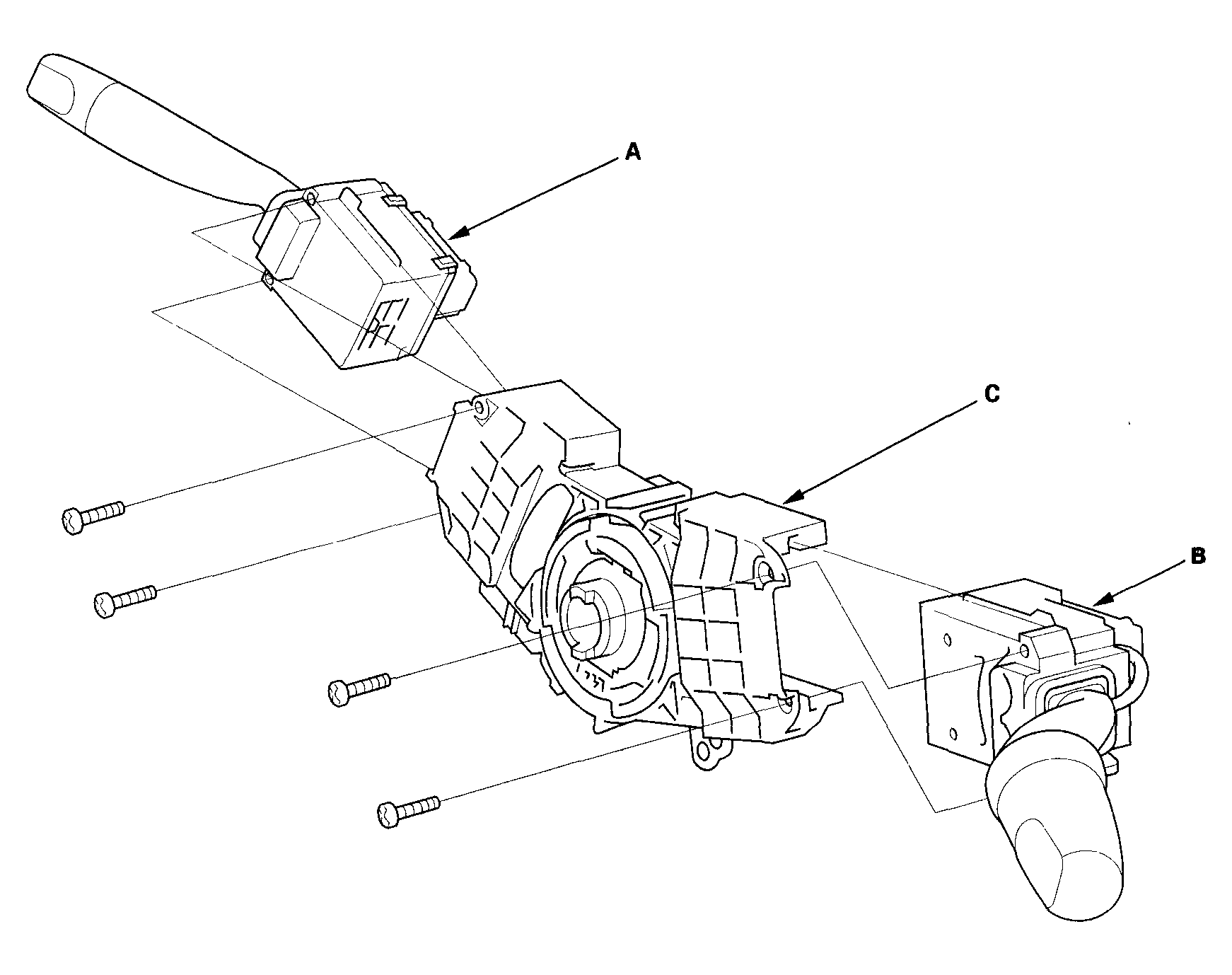

    Fig 1: Removing Combination Light/Turn Switch (A) And Wiper/Washer Switch (B)
    G04547530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Replace the combination switch body complete (C).
  5. Install the combination switch in the reverse order of removal.
    NOTE: Do not remove the steering angle sensor from the combination switch body.
  6. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
