Interior Light Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The interior light switch allows you to select when the front individual map lights come on. You can select the ON, OFF, or DOOR position.
  1. Remove the front individual map lights (see FRONT INDIVIDUAL MAP LIGHT TEST/REPLACEMENT  ).
  2. Disconnect the interior light switch 12P connector (A) and the front individual map light 3P connector (B).

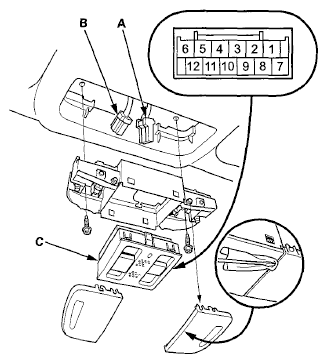

    Fig 1: Identifying Interior Light Switch Connector And Front Individual Map Light Connector
    G06968866Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the interior light switch (C) from the map light housing.
  4. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Identifying Interior Light Switch Continuity Chart
    G06968867Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the interior light switch assembly.
  6. Install the parts in the reverse order of removal.
