Cloth Replacement

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 Honda S2000, 2007 Honda S2000, 2006 Honda S2000, 2005 Honda S2000, and 2004 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the convertible top assembly (see CONVERTIBLE TOP ASSEMBLY REPLACEMENT ).
Remove the convertible top cloth in the numbered sequence.
Install the cloth in the reverse order of removal, and note these items:
- To prevent wrinkles when installing the cloth, make sure the material is stretched evenly over the frame before securing the screws and rivets.
- After installing the cloth, reinstall the top assembly. Check the operation of the top, and inspect the cloth for wrinkles.
- Check that the weatherstrip fits flush.
- Check that each door glass contacts the weatherstrips evenly. If necessary, adjust each retainer (see DOOR GLASS ADJUSTMENT ).
- Check for water leaks (see step 17 in DOOR GLASS ADJUSTMENT ).
- Test-drive and check for wind noise and rattles.

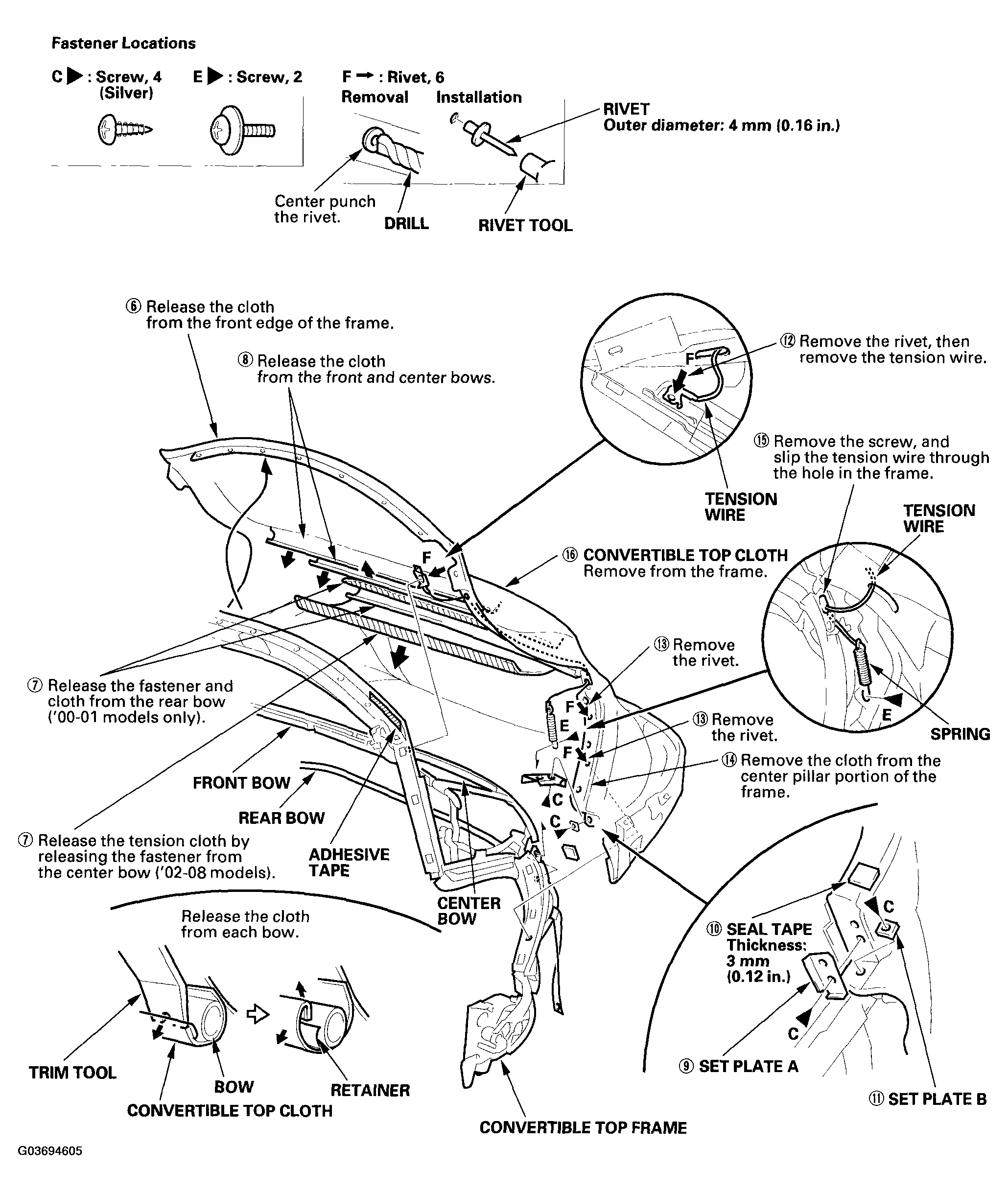

  Fig 1: Identifying Convertible Top Cloth Fastener Replacement Locations (1 Of 2)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

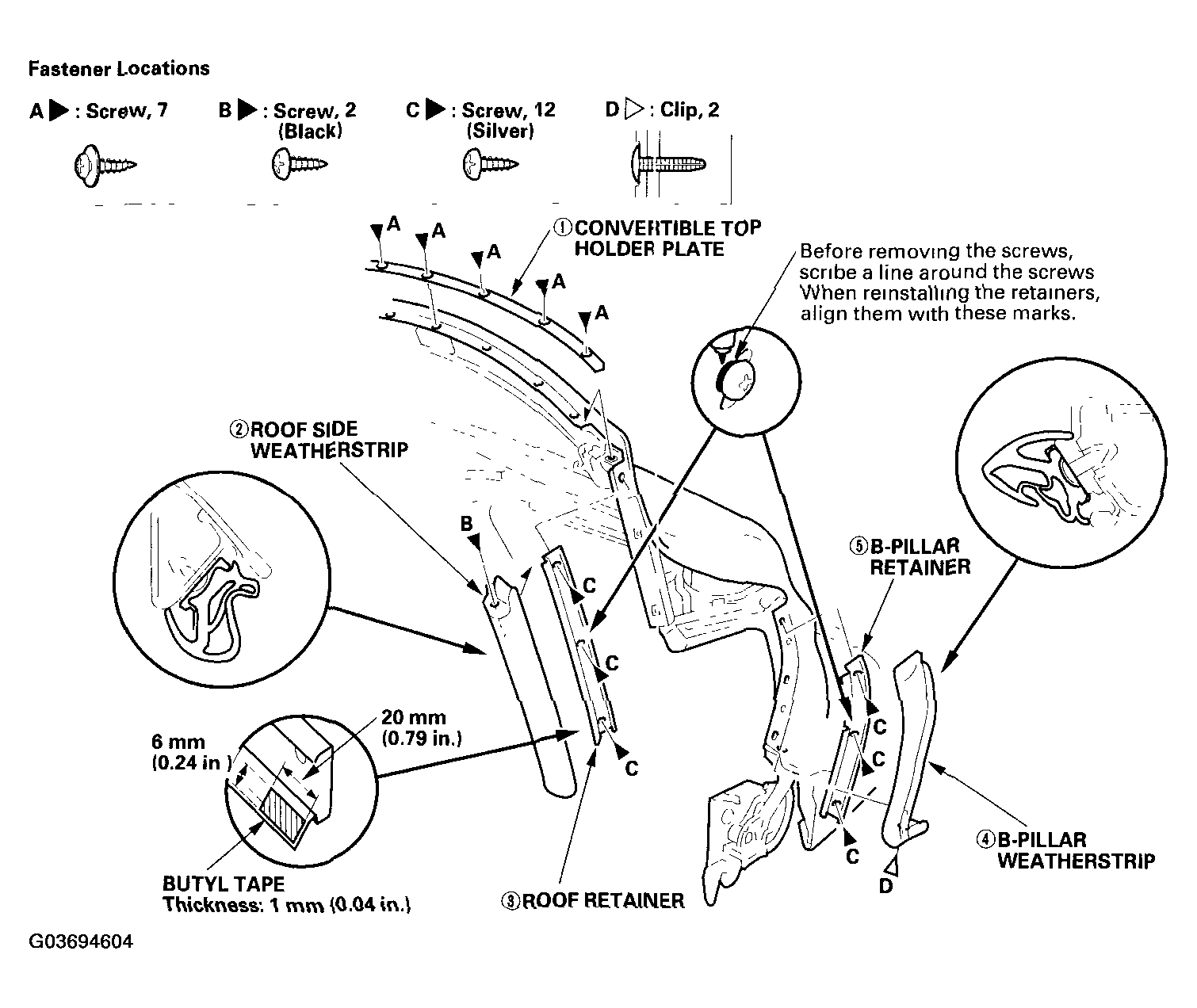

  Fig 2: Identifying Convertible Top Cloth Fastener Replacement Locations (2 Of 2)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
