MAF Sensor/IAT Sensor Replacement

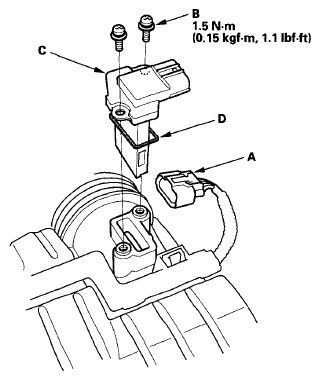

- Disconnect the MAF sensor/I AT sensor 5P connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bolts (B).
- Remove the MAF sensor/IAT sensor (C).
- Install the parts in the reverse order of removal with a new O-ring (D).
