Dashboard Vent Removal/Installation

NOTE:
  • Take care not to scratch the dashboard or the related parts.
  • Driver's outside vent is shown; driver's inside vent is similar.
  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION  ).
  2. Remove the screws, then pull out on the dashboard vent (A).

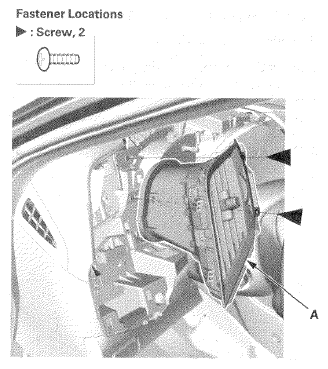

    Fig 1: Identifying Dashboard Vent With Screws
    G06953422Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the dashboard vent in the reverse order of removal.
