Driver's Dashboard Lower Cover Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Remove the fuse lid panel (see FUSE LID PANEL REMOVAL/INSTALLATION ).
Pull out along edge of the driver's dashboard lower cover (A) to detach the clips, then remove the cover.

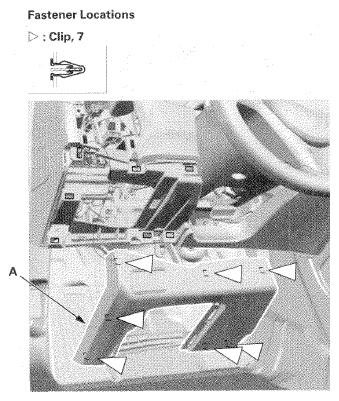

Fig 1: Identifying Driver's Dashboard Lower Cover With Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Switch trim replacement
Remove the switch trim (A) from the driver's dashboard lower cover (B).
1. Detach the hooks (C), then remove the switch lid (D).
2. Remove the screws and detach the hooks (E), then remove the trim.

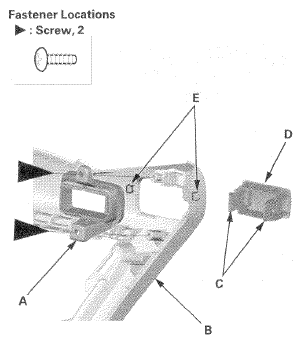

  Fig 2: Identifying Switch Trim, Driver's Dashboard Lower Cover, Hooks And Switch Lid
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lower cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
